Overview

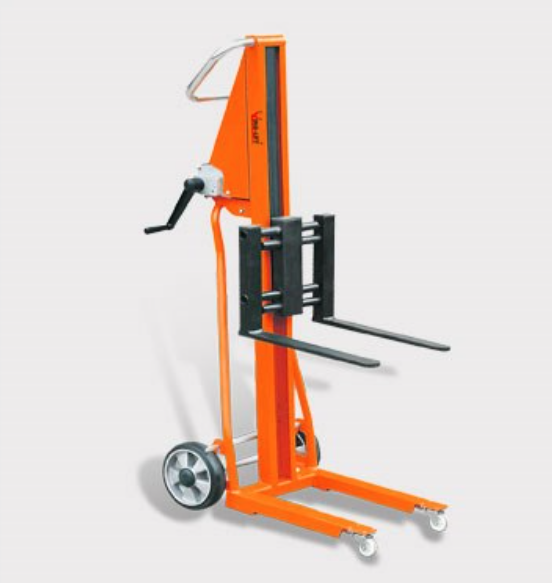

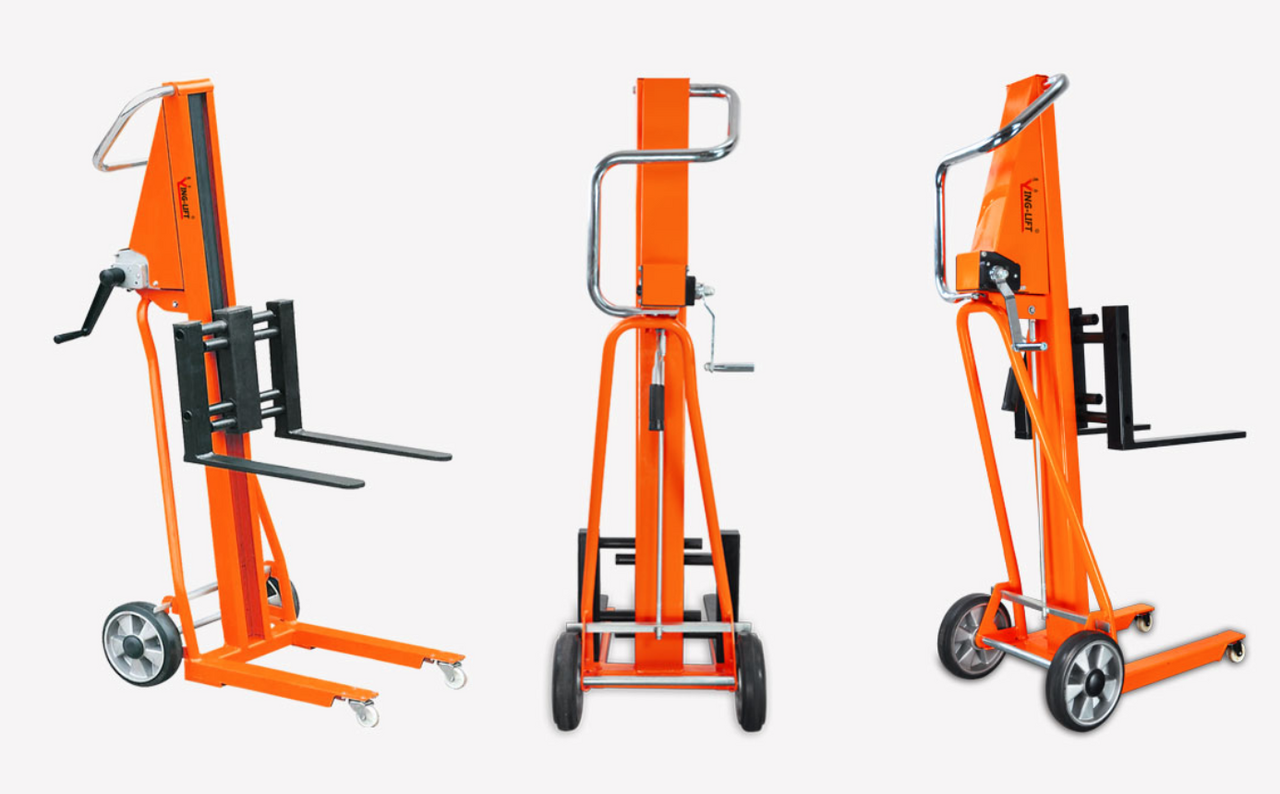

The PM120A Mini Hand Winch Stacker is a compact, manually operated lifting solution designed for light-duty material handling in tight spaces. Its ergonomic hand-winch design ensures smooth, reliable operation without the need for external power. Ideal for supermarkets, offices, warehouses, and narrow aisles, this unit combines strength, precision, and portability.
| Parameter | Value |
|---|---|
| Rated Load Capacity | 120 kg |
| Load Center | 200 mm |
| Maximum Lifting Height | 1,050 mm |
| Lowest Fork Height | 95 mm |
| Net Weight | 31 kg |
| Load Wheels | Nylon, Φ50 × 20 mm |
| Rear Wheels | PU, Φ200 × 50 mm |
Lightweight & Portable — At only 31 kg net, the PM120A is easy to maneuver and reposition, even by a single operator.
Manual Winch Drive — The hand-crank mechanism provides controlled, smooth vertical movement without requiring electricity.
Compact Footprint — Designed for use in confined work areas, narrow aisles, or tight warehouse layouts.
Adjustable Forks — Fork width can be adapted to accommodate a variety of pallet sizes and load configurations.
Low Entry Height — With a lowest height of just 95 mm, the unit can slide under many standard pallets and low-profile loads.
Stable & Safe Operation — Balanced construction and quality wheels (nylon and PU) help ensure stability and ease of movement.
Stocking and shelving in retail environments
Order picking in compact warehouse zones
Assembly-line positioning
Light machine maintenance or repositioning
Any application where electric lifting is impractical or unnecessary
Operate the winch lever smoothly—avoid sudden jerks to prolong the life of mechanical components.
Regularly inspect wheel surfaces and bearings for wear, to maintain ease of movement.
Lubricate pivot points and chain systems periodically to reduce friction and wear.
Do not exceed the 120 kg capacity or use with loads that extend the 200 mm load center without verifying balance.
Store in a clean, dry place to protect against corrosion, especially for the winch parts and exposed metal surfaces.
The PM120A Mini Hand Winch Stacker merges efficiency with simplicity, offering a dependable, no-fuss lifting solution where space is at a premium. Let me know if you’d like a shorter version (for catalog, website, etc.), a version with callouts or bullets, or translated into another language!
