Narrow Rib Deck Roll Forming Machine – UAE

Narrow Rib Deck Roll Forming Machine – UAE Market

The Narrow Rib Deck Roll Forming Machine is a precision-engineered, high-performance production line specifically designed for fabricating narrow rib steel decking used in commercial, industrial, and high-rise building applications across the United Arab Emirates. Known for its fast production speed, consistent profile accuracy, and robust build, this machine is ideal for manufacturers serving the growing UAE construction market, including cities like Dubai, Abu Dhabi, and Sharjah.

Whether you are expanding your production capabilities or entering the steel deck fabrication business, this roll forming line offers automated operation, durable tooling, and seamless integration with coil handling systems—making it a top choice for professional metal deck producers.

Machine Description

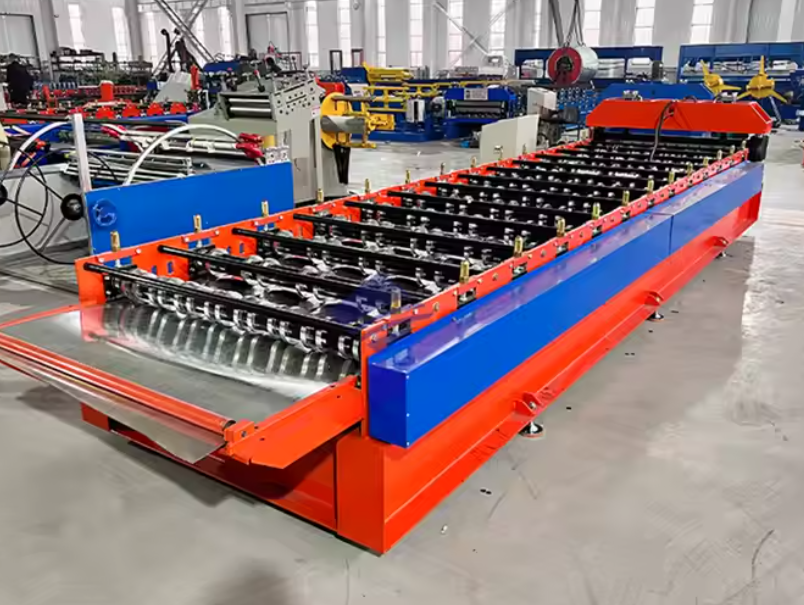

The Narrow Rib Deck profile is widely used for floor decking and roof support in steel structure construction due to its optimal load-bearing capacity and minimal concrete usage. This roll forming machine is engineered for continuous, high-volume production of narrow rib profiles from galvanized or cold-rolled steel coils.

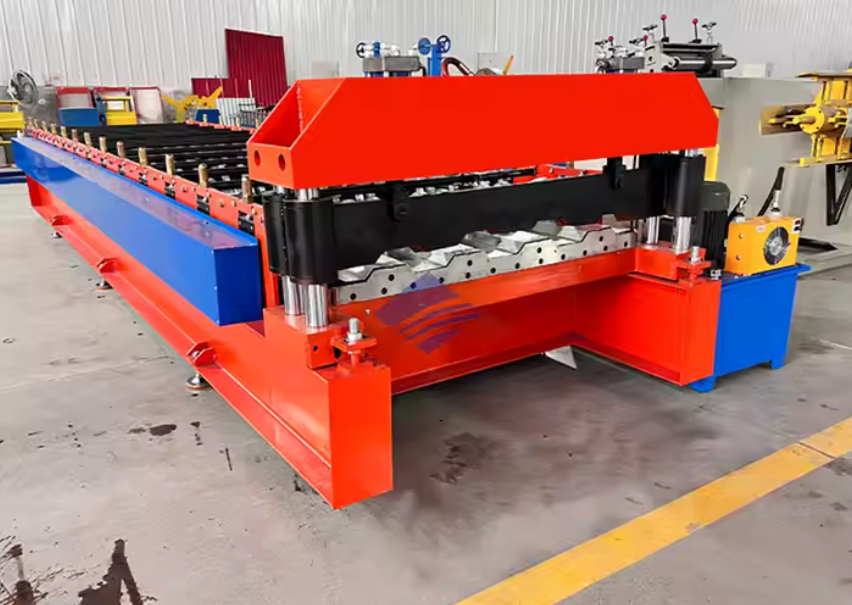

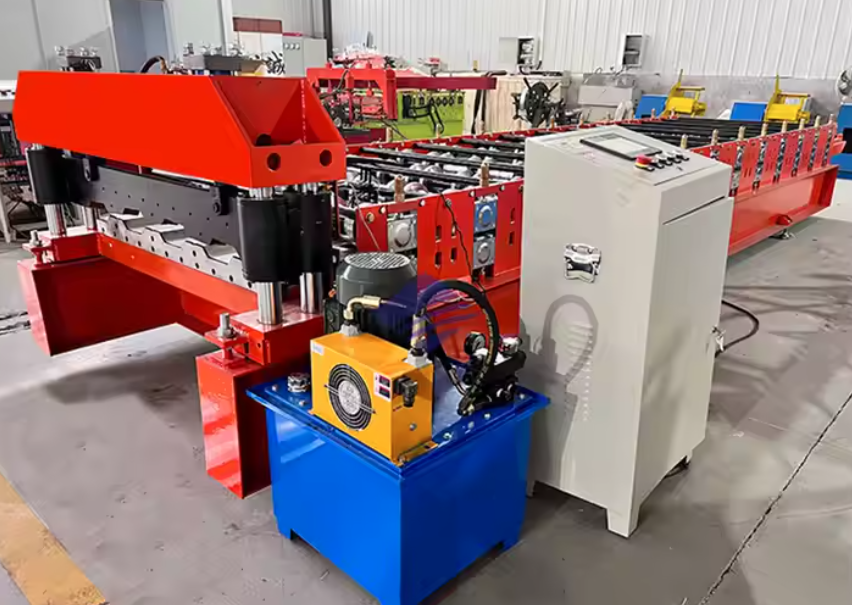

It features precision-ground rollers, servo-driven feeding, and hydraulic shearing—ensuring straight, clean cuts and tight profile tolerances. The machine's PLC control system offers user-friendly operation with recipe storage and production tracking, making it suitable for modern factories aiming for efficiency and consistent output quality.

With growing demand for lightweight floor systems in the UAE’s fast-developing construction sector, this machine supports builders, contractors, and prefab steel structure manufacturers looking for reliable, locally deliverable production equipment.

Machine Technical Specifications

• Machine Type: Narrow Rib Deck Roll Forming Machine

• Production Speed: 12–20 meters per minute

• Material Thickness Range: 0.7 mm – 1.5 mm

• Material Width Range: 1000 mm – 1250 mm

• Material Types: Galvanized Steel, Cold Rolled Steel, Galvalume

• Material Yield Strength: Up to 550 MPa

• Roller Material: GCr15 high-grade steel, heat treated

• Roller Surface Treatment: Hard chrome plated

• Number of Forming Stations: 22–26 stations (depending on profile)

• Roller Shaft Diameter: 80 mm

• Shaft Material: High-tensile solid steel, quenched and tempered

• Main Drive Type: Gearbox chain or direct coupling

• Power (UAE compliant): 380V / 50Hz / 3-phase

• Motor Power: 15 kW – 22 kW (based on production speed)

• Cutting Method: Hydraulic post-cutting system

• Blade Material: Cr12Mov (hardened tool steel)

• Control Type: PLC Control (Siemens, Mitsubishi, or Delta)

• Operating Mode: Fully automatic with touch screen interface

• De-coiling System: Manual or hydraulic uncoiler (5T–10T optional)

• Punching/Notching System: Optional (for shear studs or lifting holes)

• Machine Frame: Heavy-duty welded steel frame

• Thickness of Frame Steel: 20 mm

• Profile Shape: Narrow Rib Deck – trapezoidal/corrugated form

• Profile Width and Depth: Approx. 950 mm cover width, 38 mm depth

• Length Tolerance: ±1.5 mm per 6 meters

• Safety Features:

  • Protective Covers/Guards

  • Emergency Stop Button

  • Overload Protection System

Pricing Information

• Prices Start From: USD $85,000  (FOB)

• What Affects the Final Price:

  • Material width and thickness range

  • Production speed and number of forming stations

  • Optional extras (auto stackers, punching system, coil cars, embossing rollers)

  • PLC brand and electrical components

  • Coating and rust-proofing requirements for the UAE climate

Note: All machines are new and custom-built to meet your exact profile and production requirements. Machines are deliverable anywhere in the United Arab Emirates including Abu Dhabi, Dubai, and Sharjah, directly from our manufacturing partner. Machines are covered by a one-year warranty from dispatch, with full maintenance and repair support available.

Industries & Applications

This machine is ideal for:

• Steel structure contractors

• Pre-engineered building (PEB) fabricators

• Commercial and industrial construction suppliers

• Civil engineering material manufacturers

• Decking panel suppliers for UAE infrastructure projects

Frequently Asked Questions (FAQ)

Q1: What is the maximum coil width this machine can handle?
A: The standard width range is 1000–1250 mm. Custom widths can be discussed depending on your profile.

Q2: Can the machine include an automatic stacking system?
A: Yes, an automatic stacker can be added to improve efficiency and reduce manual labor.

Q3: Is the machine compatible with UAE electrical standards?
A: Absolutely. All electrical components are configured for 380V, 50Hz, 3-phase supply as per UAE industrial standards.

Q4: What’s the delivery time to the UAE?
A: Production time is usually 45–60 days. Shipping to UAE ports typically takes 25–35 days depending on availability.

Q5: How can I get the best quote for my profile?
A: Email your profile drawing, material thickness, and required speed to [email protected] to receive a tailored quote.

How to Order

To get started with your order or inquiry:

Email us at: [email protected]
Available in: Abu Dhabi, Dubai, Sharjah, and all across the UAE
Custom-Built to Order – designed for your exact production profile
Warranty: One year from dispatch, with long-term support available
