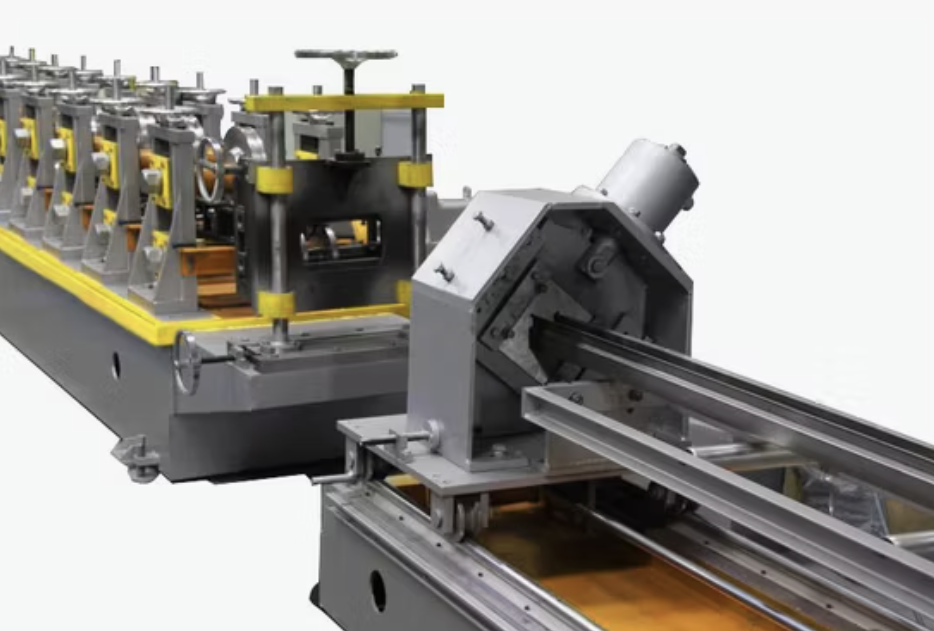

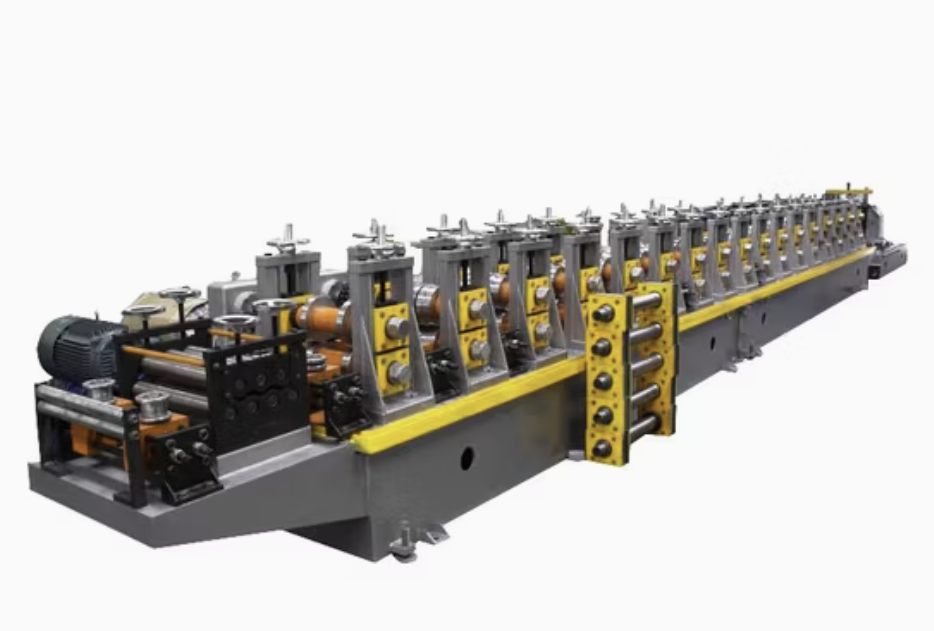

Boost your storage and warehouse solutions with our precision-engineered Pallet Step Beam Roll Forming Machine — now available for delivery across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and beyond.
This advanced roll forming machine is specially designed for manufacturing high-strength, precisely dimensioned pallet racking step beams — essential components in warehouse shelving and storage systems. Built with superior quality, this machine ensures high-speed production, excellent profile accuracy, and long-term durability to meet the industrial storage needs of the UAE market.
Whether you are building warehouse storage solutions, logistics centers, or industrial shelving units, this machine is an ideal investment for companies in the racking and shelving industry.
| Specification | Details |
|---|---|
| Machine Type: | Pallet Step Beam Roll Forming Machine |
| Production Speed: | 10–15 meters per minute |
| Material Thickness Range: | 1.5 mm – 3.0 mm |
| Material Width Range: | Up to 300 mm (customizable) |
| Material Types: | Cold-rolled steel, Galvanized steel, High tensile steel |
| Material Yield Strength: | Up to 350 MPa |
| Roller Material: | GCr15 high-grade steel |
| Roller Surface Treatment: | Hard chrome plating |
| Number of Forming Stations: | 18–24 stations (depending on profile design) |
| Roller Shaft Diameter: | 75 mm |
| Shaft Material: | High-strength 45# steel, heat treated |
| Main Drive Type: | Chain or gearbox drive (optional) |
| Power (UAE configuration): | 380V/50Hz/3Phase (can be customized) |
| Motor Power: | 22 kW (main motor) |
| Cutting Method: | Hydraulic post-cutting |
| Blade Material: | Cr12Mov, quenched and tempered |
| Control Type: | PLC control system (Siemens or equivalent) |
| Operating Mode: | Fully automatic |
| De-coiling System: | Manual or Hydraulic uncoiler (optional capacity 3–5 tons) |
| Punching/Notching System (if included): | Hydraulic punching system integrated before forming |
| Machine Frame: | Welded structure, stress-relieved steel frame |
| Thickness of Frame Steel: | 20 mm |
| Profile Shape: | Customized pallet step beam |
| Profile Width and Depth: | Based on customer drawings (commonly 80–160 mm width, 40–80 mm depth) |
| Length Tolerance: | ±1.0 mm |
| Safety Features: | Fully enclosed covers, light curtains (optional) |
| Protective Covers/Guards: | Yes, for forming area, cutting area, and motor |
| Emergency Stop Button: | Installed at key control points |
| Overload Protection System: | Integrated in motor and hydraulic units |
Warehouse storage and logistics
Industrial shelving systems
Retail storage systems
Cold storage facilities
Distribution centers
Manufacturing facilities
With the rapid expansion of logistics hubs, fulfillment centers, and storage facilities across the UAE, there is an ever-growing demand for precision-made pallet racking systems. This machine enables local manufacturers to produce high-quality racking beams efficiently and economically.
All machines are new and custom-built according to customer specifications.
We supply and deliver directly across Abu Dhabi, Dubai, Sharjah, and all regions in the UAE through our trusted manufacturing partner network.
Pricing is determined based on optional extras, machine size, production speed, and any special requirements.
Warranty:
Every machine comes with a 1-year warranty from the date of dispatch. Durable maintenance and repair support are also provided throughout the machine’s service life.
Custom Quotes:
To receive the best possible quote, please email your pallet step beam profile drawing, material information, thickness, lengths, and any specific requests to:
📩 [email protected]
Q: What type of profiles can this machine produce?
A: It is specifically designed for producing pallet step beams, typically used in warehouse racking systems. The exact dimensions and profile shapes can be fully customized.
Q: Can you adjust the machine for different beam sizes?
A: Yes, the machine can be designed with adjustable tooling or quick-change cassettes to produce different beam sizes if required.
Q: What is the production speed?
A: Production speed is between 10–15 meters per minute, depending on the material thickness and profile complexity.
Q: What power supply is needed in the UAE?
A: The machine is configured for 380V, 50Hz, 3-phase power, which matches standard UAE industrial electrical systems.
Q: Can you include a hydraulic punching unit for connection holes?
A: Yes, hydraulic punching or notching systems can be integrated as an option before the roll forming section.
Q: How long does manufacturing and delivery take?
A: Typically, machine production time is 60–90 days from order confirmation. Shipping to the UAE is arranged immediately after completion.
Q: Is on-site installation and training available in the UAE?
A: Yes, we offer remote and on-site installation support, training, and commissioning services for customers in the UAE.
Q: What information should I provide for the most accurate quote?
A: Please provide your profile drawing, material type, thickness, beam lengths, and any specific machine features you require.
For full pricing, technical consultation, or customized designs, email us at:
📩 [email protected]
Our team is ready to support your storage manufacturing project with the best roll forming machine solutions in the UAE market!
