Overview

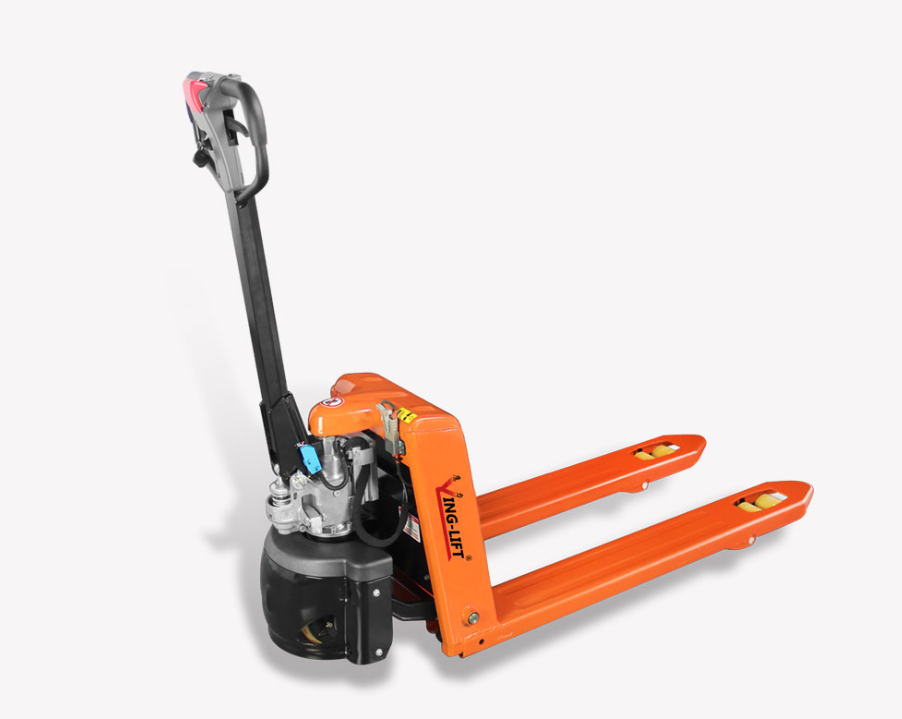

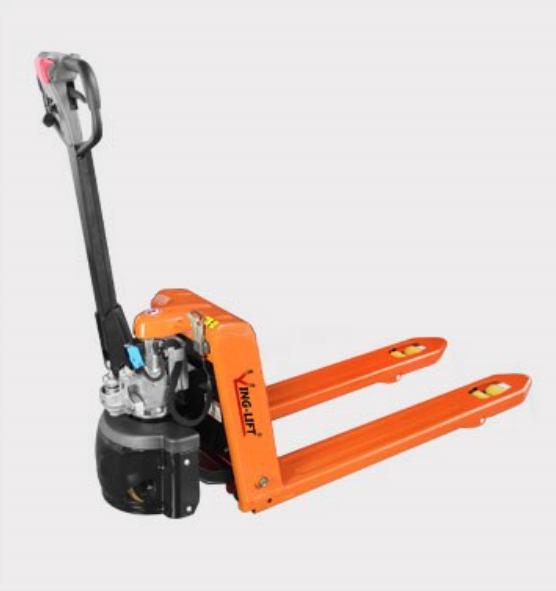

The YLT20-15EHJ is a high-performance, semi-electric hand pallet truck designed to combine the compact convenience of a manual pallet jack with the lifting power of an electric system. It is ideal for applications in warehouses, light manufacturing, retail, and other material handling environments where space is tight and efficiency is essential.
Key Features & Benefits
Robust Load Capacity: 1,500 kg (≈ 3,300 lbs), providing ample capacity for a wide range of palletized goods.
Compact Lift Range:
Maximum fork height: 200 mm
Minimum fork height: 85 mm
This range supports both low-profile pallet pickup and moderate lifting for staging.
Efficient Battery System: 24 V / 30 Ah battery supply gives sufficient power for repeated lifts and transport cycles.
Fork Dimensions: 550 × 1,150 mm — suitable for standard pallet formats.
Durable Wheels: Nylon wheels enhance maneuverability and resist wear in typical indoor settings.
Light & Agile: With a service weight of just about 140 kg, the unit is easier to maneuver than many fully electric alternatives.

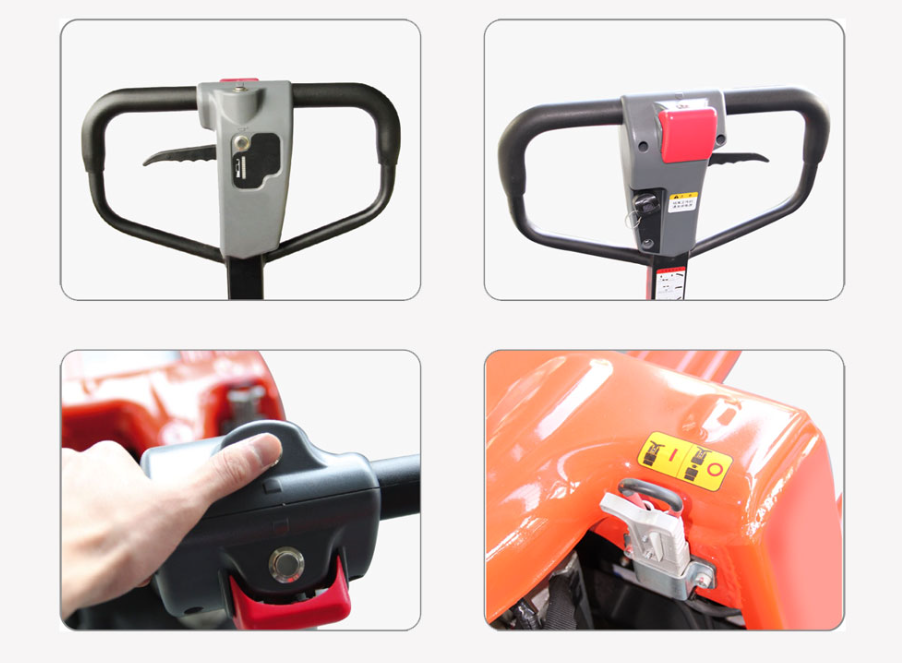

User-Friendly Controls:
Ergonomically designed tiller head for intuitive operation
Integrated control head for streamlined handling
Emergency disconnect button enhances operator safety
Internal charger for convenient on-unit battery recharging
Service & Maintenance: Modular component design simplifies fault diagnosis, parts replacement, and general upkeep.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | YLT20-15EHJ |
| Type | Semi-electric / walkie operation |
| Load capacity | 1,500 kg |
| Service weight | ~ 140 kg |
| Fork raised height (h3) | 115 mm (nominal) |
| Fork lowered height (h13) | 85 mm |
| Fork dimensions (s / e / l) | 50 / 150 / 1,150 mm |
| Overall length (L1) | 1,580 mm |
| Overall width (b1 / b2) | 560 mm |
| Outside fork width (b5) | 560 mm |
| Travel speed (laden / unladen) | 3.5 km/h / 4.0 km/h |
| Maximum gradeability (laden / unladen) | 3% / 6% |
| Drive motor rating | 0.65 kW (S2 60 min) |
| Battery | 24 V / 30 Ah |
Use Cases & Applications
Ideal for tight-aisle warehouses, logistics centers, and production floors
Great for operations where full electric trucks are excessive
Perfect for frequent pallet transport over moderate distances
Useful where occasional light lifting is desirable without investing in a full stacker
Why Choose the YLT20-15EHJ?
This model delivers a balanced blend of power and portability. It gives you electric-assisted lifting capacity in a compact footprint, making it a smart upgrade from standard manual jacks without the complexity or cost of full electric systems. Its ergonomic controls, internal charger, and maintainable design make it a dependable asset in daily operations.
