Model Example: YLSE10-20
Load Capacity: 1,000 kg
Maximum Lifting Height: 2,000 mm
Fork Length: 1,150 mm

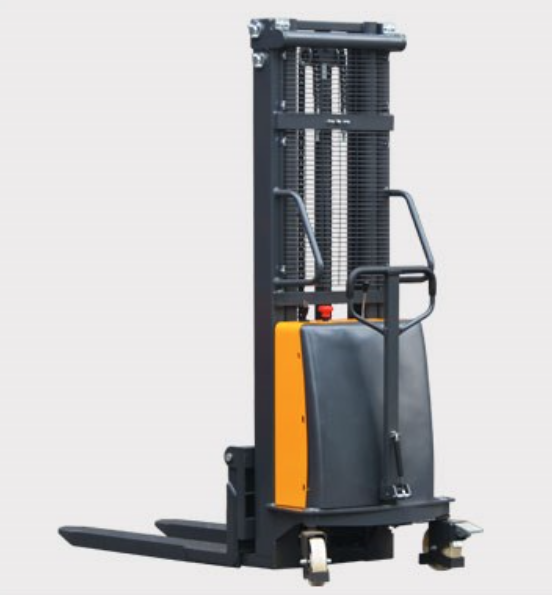

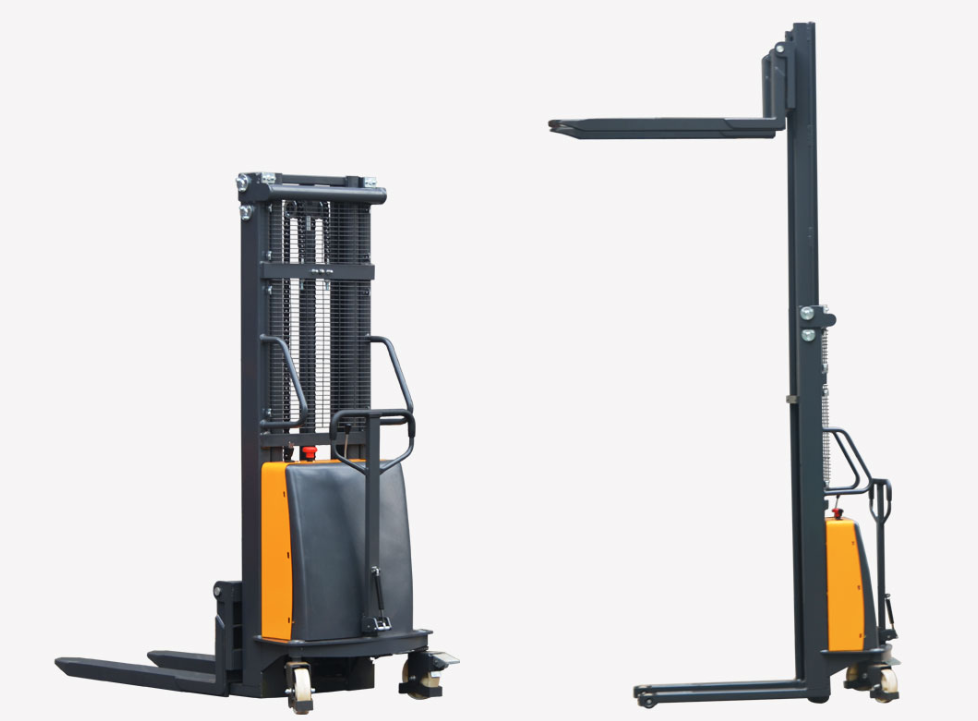

The Semi-Electric Pallet Stacker (e.g. model YLSE10-20) combines efficient hydraulic lifting with powered mobility to streamline your material handling operations. This robust and dependable stacking solution is ideal for warehouses, factories, and distribution centers where space, speed, and ergonomic handling matter.
| Feature | Benefit / User Value |
|---|---|
| Electric drive with hydraulic lift assist | Reduces operator fatigue and accelerates pallet movement and lifting |
| Compact, space-saving frame | Ideal for narrow aisles and tight loading zones |
| Adjustable forks | Fine-tune alignment and compensate for wear over time |
| Brake on universal wheel | Ensures rapid, reliable stopping when needed |
| Reinforced mast construction | Minimizes mast tilt under load and enhances overall stability |
| Premium components | Uses proven international-brand pumps, relays, motors for reliability and long service life |
Stacking pallets in medium-height racking systems
Loading/unloading trucks in tight dock environments
Shuttling loads along warehouse aisles where full forklift access is limited
Operations where a balance of manual control and powered assist is desired
The hydraulic power unit is designed for compactness and responsiveness, adapting lifting speed to operator needs seamlessly.
Imported motor relays ensure reliable actuation, strong traction, and extended durability.
Fork adjusters allow fine calibration to maintain optimal horizontal leveling even with wear or slight deformation over time.
The braking system acts directly on the universal caster, enabling quick and safe stops when foot brake is applied.
Reinforcing ribs between the inner and outer mast channels prevent forward mast tilt during lifting, preserving stability under load.
Efficiency Gains — Electric-assisted movement coupled with hydraulic lift reduces the physical strain and speeds up pallet handling.
Robust Reliability — Built with quality parts and solid mast reinforcement, it’s designed for long-term industrial use.
Flexibility & Control — The semi-electric nature gives the operator a blend of manual handling feel with powered aid for lift and mobility.
Great Value at Mid-Capacity — With its 1,000 kg capacity and 2,000 mm lift height, this unit fits many common warehouse needs without overengineering.
