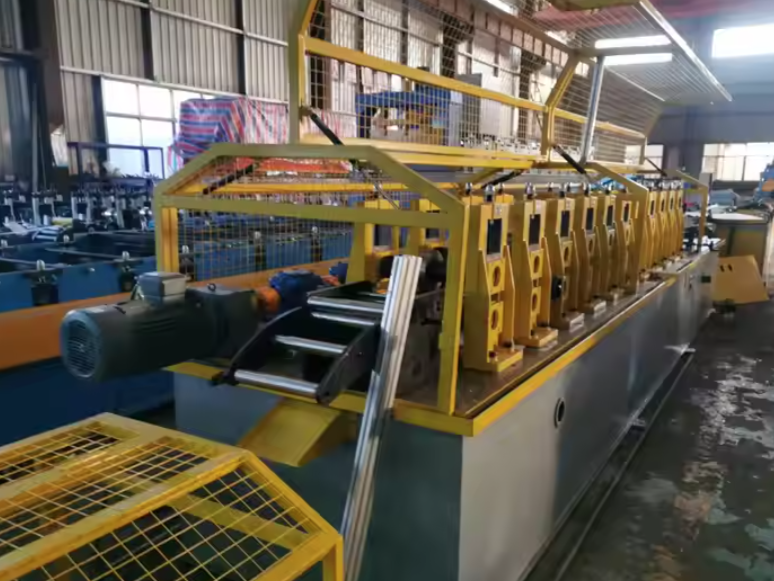

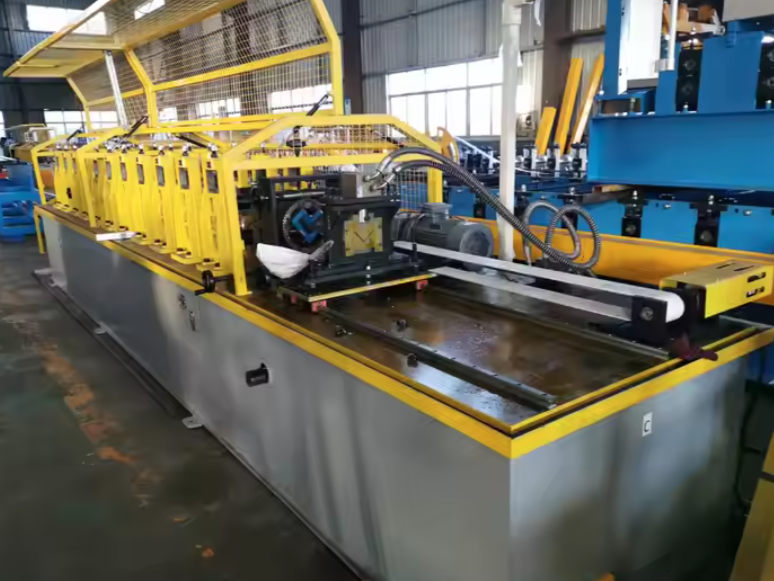

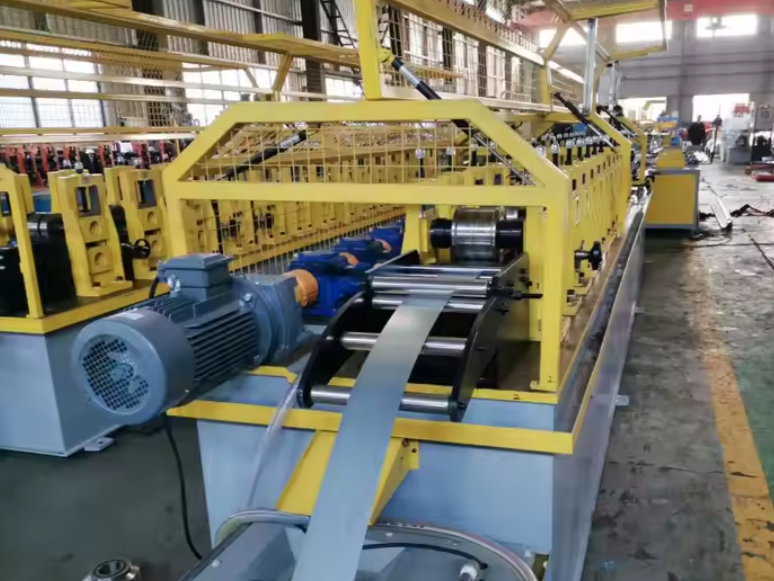

Shadow Wall Angle Roll Forming Machine – UAE
The Shadow Wall Angle Roll Forming Machine is a high-precision, heavy-duty industrial solution designed for the continuous production of shadow angle profiles used in drywall and architectural wall systems. Built for durability and optimized for UAE conditions, this roll forming machine is ideal for mass production with minimal waste, offering unmatched consistency and accuracy across every profile produced.
Engineered with hardened components, user-friendly automation, and built-in safety features, this machine is perfectly suited for manufacturers in the UAE who demand reliability, customization, and high productivity.
The Shadow Wall Angle Roll Forming Machine caters to a wide range of industries across the UAE and Gulf region, including:
Construction & Drywall Framing
Used in framing systems and ceiling suspensions for both residential and commercial structures.
Interior Fit-Out Contractors
Frequently used for shadow gaps, ceiling junctions, and decorative trims.
Architectural and Façade Design
For precise angular profiles used in feature walls and recessed lighting installations.
Industrial & Modular Construction
Ideal for pre-fabricated building systems and lightweight framing.
Luxury hotel interiors in Dubai
Commercial towers in Abu Dhabi
Retail fit-outs in Sharjah malls
Modular housing developments across the Emirates
Machine Type: Cold Roll Forming Machine – Shadow Wall Angle Profile
Production Speed: 15–30 meters/min (adjustable)
Material Thickness Range: 0.3–0.8 mm
Material Width Range: 60–200 mm (depending on profile design)
Material Types: Galvanized Steel (GI), Pre-painted Steel, Aluminium
Material Yield Strength: 235–550 MPa (34–80 ksi)
Roller Material: High-grade GCr15 steel, heat-treated and hard chrome coated
Roller Surface Treatment: Polished, anti-corrosion coating
Number of Forming Stations: 10–16 stations (customizable)
Roller Shaft Diameter: 50 mm
Shaft Material: 45# high-strength steel, precision-ground
Main Drive Type: Chain drive or gear drive (depending on preference)
Power Supply (UAE): 380V / 50Hz / 3-Phase
Motor Power: 4–7.5 kW depending on configuration
Cutting Method: Hydraulic post-cutting system
Blade Material: Cr12MoV high-speed steel, heat-treated
Control Type: PLC automatic control system with touchscreen (Siemens/Delta)
Operating Mode: Fully automatic / manual override
De-coiling System: Manual or hydraulic uncoiler (3–5 ton capacity)
Punching/Notching System (Optional): Hydraulic punching available for customized cutouts
Machine Frame: Welded steel frame with stress relief treatment
Frame Steel Thickness: 18–25 mm
Profile Shape: 90° Shadow Wall Angle / Recessed Corner Trim
Profile Width and Depth: Width: 20–50 mm | Depth: 20–50 mm (customizable)
Length Tolerance: ±1.0 mm per 3 meters
Full Protective Covers over forming stations
Emergency Stop Button with lock-out mechanism
Overload Protection System on the hydraulic and motor units
Common Materials:
Galvanized Steel Coil (GI) – Z80 to Z275 coating
Aluminium – 3000 & 5000 series alloys
Pre-painted Steel Coil (PPGI)
Recommended Material Gauge: 0.4 mm to 0.7 mm
KSI Strength Range: 34–80 ksi depending on application
Coil car or hydraulic uncoiler upgrade
Profile embossing units
Servo flying cut-off systems for higher speeds
In-line punching/notching
Dual-profile or adjustable roller tooling
Auto stacking systems
Custom-Built for UAE Applications
Designed to suit project specifications for buildings in high-temperature, high-humidity environments.
Reduced Downtime
Quick-change tooling and modular stations help reduce changeover time and increase throughput.
Energy Efficient
Advanced PLC controls and smart automation reduce power consumption without sacrificing speed.
Precision Manufacturing
Ensures tight tolerances and consistent profile formation—crucial for architectural aesthetics and fit-outs.
Support & Warranty
1-Year warranty with remote setup assistance, spare parts availability, and UAE-wide technical support.
Delivered Anywhere in the UAE
Whether you’re in Dubai, Abu Dhabi, or Sharjah, the machine can be delivered directly from our global manufacturing partner with full setup support.
Prices Start From: USD $34,000
(Depending on configuration, automation level, and optional extras)
What Affects Final Price:
Profile complexity and design
Automation level (manual vs. full auto)
Quantity of forming stations
Optional systems (punching, decoiler, stacker)
Electrical and hydraulic upgrades
For a tailored quote based on your project, email your profile drawing or specifications to:
[email protected]
Q1: Can this machine be used for different shadow angle sizes?
Yes. The machine can be customized to produce various widths and depths or built with adjustable tooling for multi-size output.
Q2: How long does it take to install and set up in the UAE?
Standard setup time is 3–5 days, with remote or on-site installation support depending on your location.
Q3: Is a coil uncoiler included?
A standard manual uncoiler is included; hydraulic options can be added upon request.
Q4: What is the typical coil size used?
Standard coils: 600–1250 mm width, inner diameter 508 mm, outer diameter up to 1250 mm.
Q5: Is operator training included?
Yes. Basic training is provided via video, with optional on-site training available in the UAE.
The Shadow Wall Angle Roll Forming Machine is a robust, precision-built solution tailored to the needs of construction and architectural industries in the UAE. With full customization, competitive pricing, and technical support, it’s the ideal machine for companies aiming to enhance production speed and output quality while lowering operational costs.
For Quotes and Profile Analysis
Send drawings and requirements to [email protected]
All machines are new, built-to-order, and deliverable across the UAE.
