Product Overview

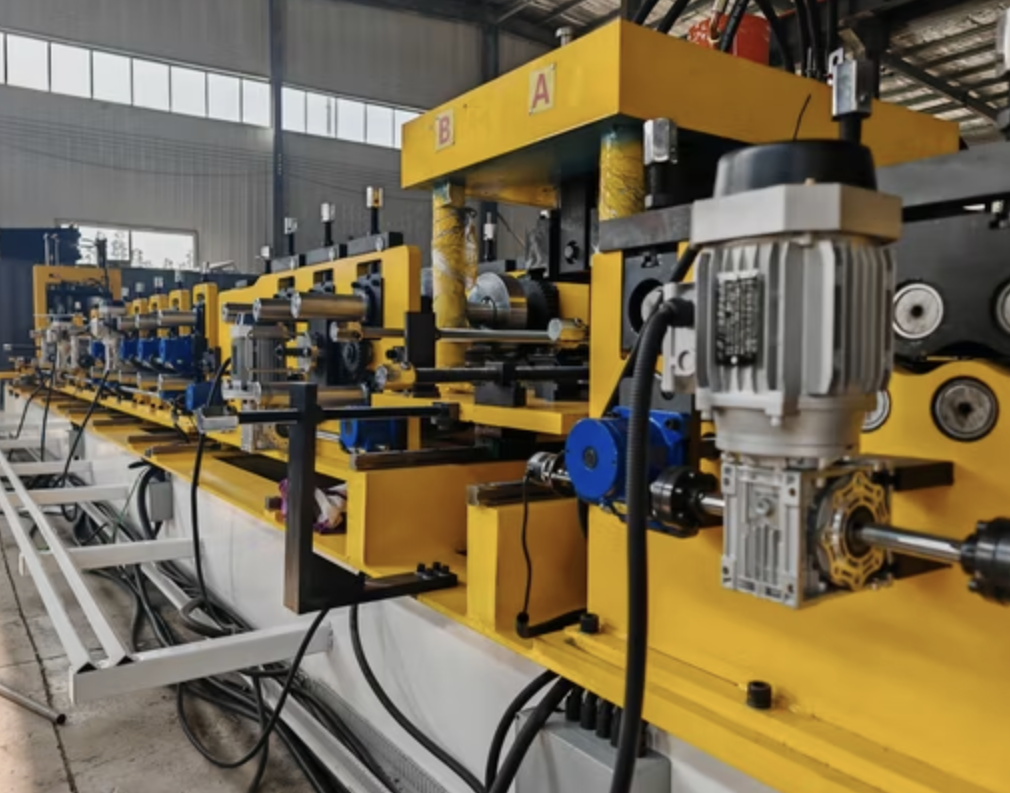

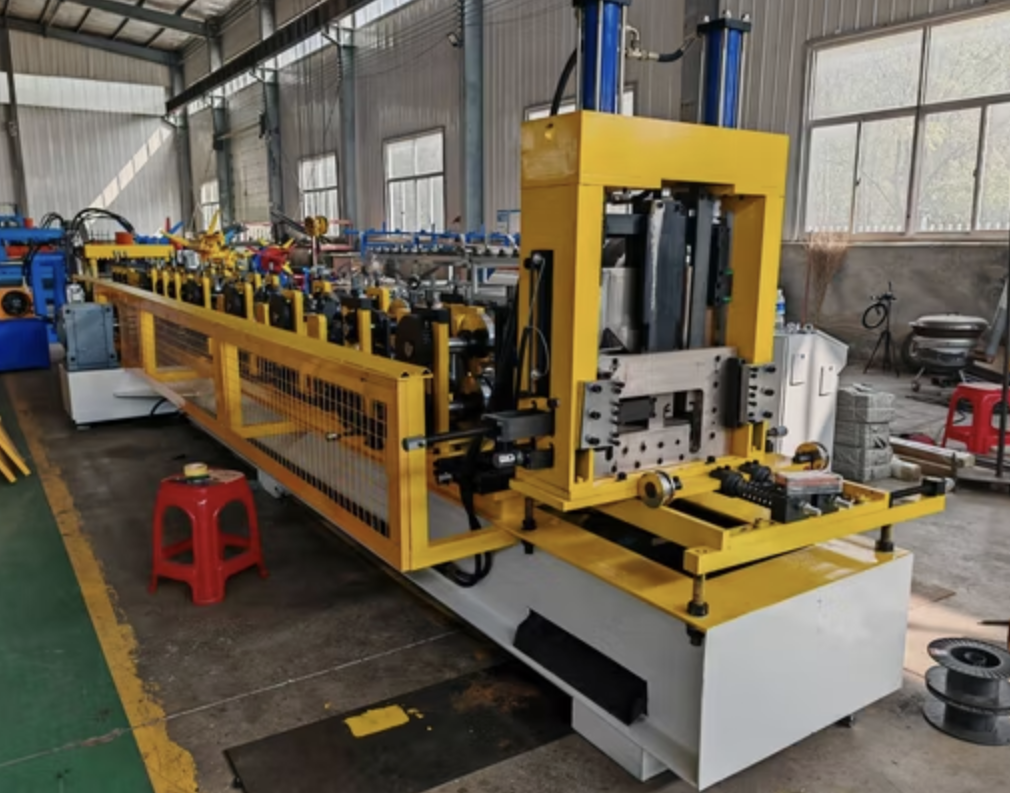

The Sigma Purlin Roll Forming Machine is a high-performance, precision-engineered machine designed specifically for manufacturing Sigma purlins used widely in the construction and steel building industries. Built to meet demanding industry requirements, this roll forming system offers fast production speeds, excellent profile accuracy, and long-term durability.
All of our machines are new, custom-built to match your specific profile and production needs, and can be delivered anywhere in the United Arab Emirates — including Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah, and beyond — directly from our world-class manufacturing partner.
Industries Served
Steel Building and Construction Industry
Industrial Warehouses and Structures
Commercial Steel Framing
Pre-Engineered Buildings (PEB)
Solar Panel Mounting Structures
Infrastructure Projects (Airports, Bridges, Highways)
Sigma purlins produced with this machine are essential structural components for load-bearing wall systems, roofing frameworks, mezzanine floors, and solar panel supports.
| Specification | Details |
|---|---|
| Machine Type: | Sigma Purlin Roll Forming Machine |
| Production Speed: | 10–20 meters per minute (depending on profile size and material) |
| Material Thickness Range: | 1.5 mm – 3.0 mm |
| Material Width Range: | 100 mm – 500 mm (customizable) |
| Material Types: | Galvanized Steel, Cold Rolled Steel, Mild Steel |
| Material Yield Strength: | Up to 350 MPa |

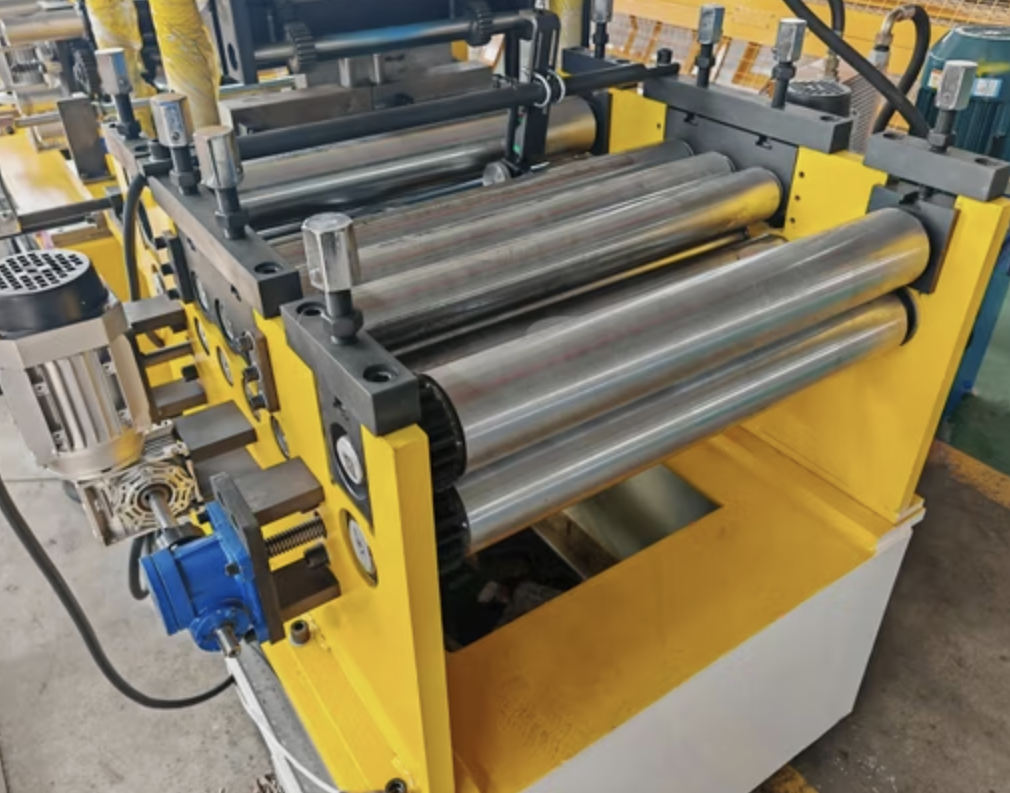

| Roller Material: | High-grade GCr15 Steel (Heat Treated) |
| Roller Surface Treatment: | Hard Chrome Coated for wear resistance |
| Number of Forming Stations: | 16–24 stations (depends on final profile design) |
| Roller Shaft Diameter: | 70 mm solid shaft |
| Shaft Material: | High tensile steel, precision ground and chromed |
| Main Drive Type: | Gearbox Transmission (high strength and stability) |
| Power: | 380V / 50Hz / 3 Phase (UAE standard industrial power) |
| Motor Power: | 22 kW (Main motor) |

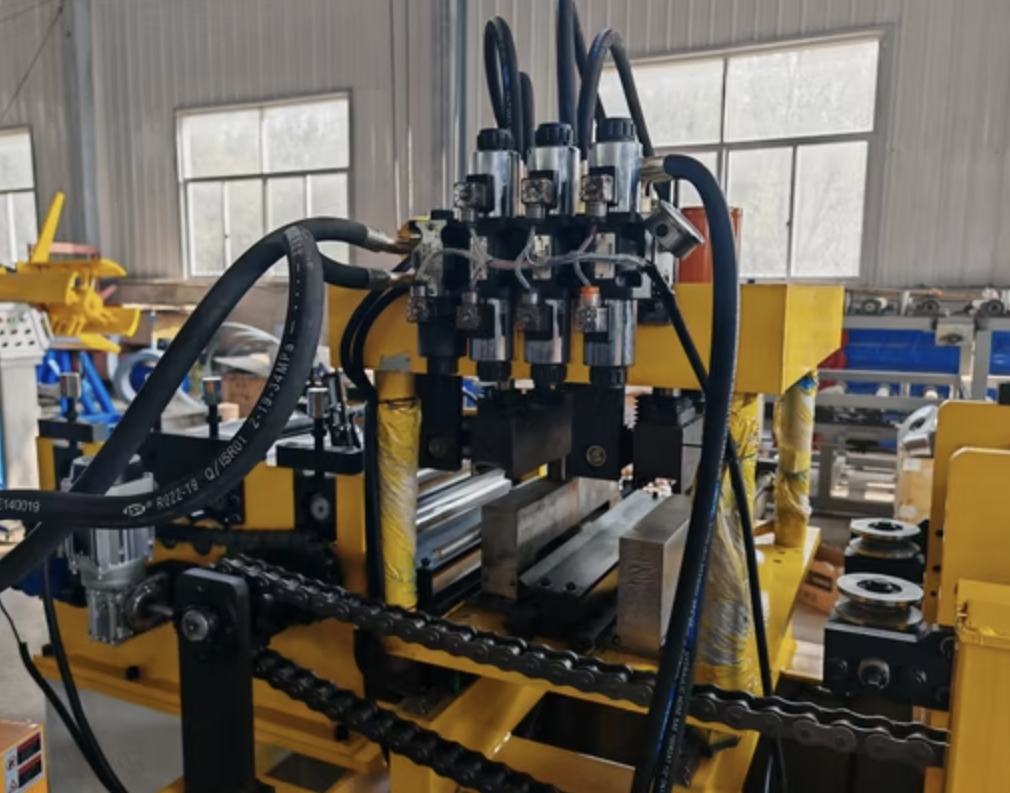

| Cutting Method: | Hydraulic Post-Cutting (high precision, minimal material waste) |
| Blade Material: | Cr12MoV steel, heat-treated for durability |
| Control Type: | PLC Control System (Siemens or Delta) |
| Operating Mode: | Fully Automatic, Manual/Automatic Modes available |
| De-coiling System: | Hydraulic or Manual Decoiler up to 5 tons capacity |
| Punching/Notching System (if included): | Optional hydraulic punching units available |
| Machine Frame: | Welded heavy-duty steel frame |
| Thickness of Frame Steel: | 20 mm |
| Profile Shape: | Sigma Profile (Z-like section with additional center ribs) |
| Profile Width and Depth: | Customizable based on project needs |
| Length Tolerance: | ±2 mm |
| Safety Features: | Emergency Stop, Safety Covers, Overload Protection |
Protective Covers and Guards over rollers and cutting area
Emergency Stop Buttons positioned at key locations
Overload Protection System for motor and hydraulic units
Electrical Interlocks for safety doors
Delivery: Direct to any location in the UAE (Abu Dhabi, Dubai, Sharjah, and more)
Customization: Machines are built to your specific profile and production requirements.
Warranty: One-year warranty from dispatch.
Support: Long-term maintenance and repair support available through our service network.
Contact for Quotes: Pricing depends on optional extras like automatic stackers, punching units, or advanced coil handling systems.
Email your profile drawings or requirements to [email protected] to receive a detailed quote.
Q: What is a Sigma Purlin used for?
A: Sigma purlins are used mainly for structural support in metal buildings, including roofs, walls, mezzanine flooring, and solar panel structures due to their high strength-to-weight ratio.
Q: Can I customize the profile dimensions?
A: Absolutely. Each machine is made to order based on your required width, depth, and material thickness range.
Q: What materials can the machine process?
A: This machine is capable of processing galvanized steel, cold rolled steel, and mild steel with a yield strength up to 350 MPa.
Q: Is installation support available in the UAE?
A: Yes, installation, commissioning, and operator training support can be arranged in the UAE.
Q: How do I get the best price for my machine?
A: Send us your specific profile drawing, production speed requirement, and any extra features you need (like punching or stackers). Email details to [email protected].
Q: How long is the machine delivery time?
A: Standard delivery time ranges from 60 to 90 days after confirmation of order and design approval.
