Sigma Purlin Roll Forming Machine – UAE
Supplied Exclusively by Machine Matcher
The Sigma Purlin Roll Forming Machine, available exclusively through Machine Matcher, is engineered for high-precision manufacturing of Sigma purlins. Tailored to meet the rigorous demands of the UAE's construction and steel fabrication sectors, this machine ensures efficient production, structural integrity, and adaptability to various project requirements.
This machine caters to a wide range of industries in the UAE, including:
Steel Building and Construction: Essential for structural components in warehouses, factories, and commercial buildings.
Pre-Engineered Buildings (PEB): Facilitates rapid construction with standardized components.
Solar Energy Infrastructure: Produces purlins for mounting solar panels, supporting renewable energy initiatives.
Transportation and Logistics: Used in constructing terminals, storage facilities, and related infrastructure.
Agricultural Structures: Ideal for building barns, storage units, and other farm-related facilities.

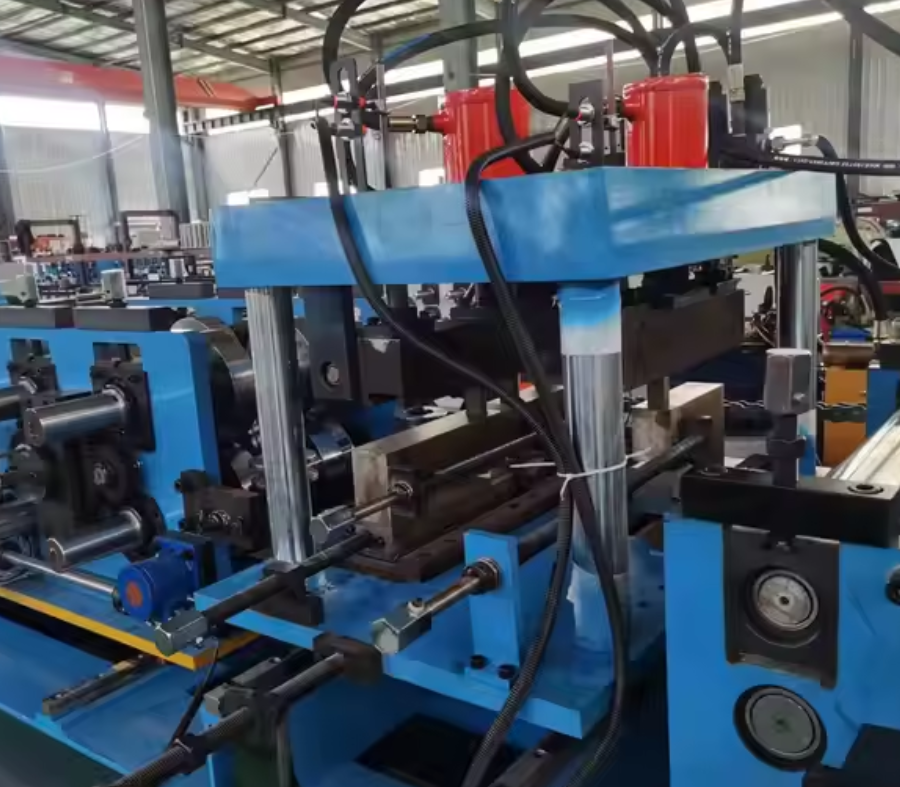

The Sigma Purlin Roll Forming Machine is designed for the continuous production of Sigma-shaped purlins with high dimensional accuracy. Its capabilities include:
High-Speed Production: Achieves speeds of 10–20 meters per minute, optimizing throughput.atility: Processes galvanized steel, cold-rolled steel, and mild steel.
Customizable Profiles: Accommodates various widths and depths to meet specific project needs.
Precision Engineering: Ensures consistent quality and structural integrity of the produced purlins.
Machine Type: Sigma Purlin Roll Forming Machine
Production Speed: 10–20 meters per minute
Material Thickness Range: 1.5 mm – 3.0 mm
Material Width Range: 100 mm – 500 mm (customizable)
Material Types: Galvanized Steel, Cold-Rolled Steel, Mild Steel
Material Yield Strength: Up to 350 MPa
Roller Material: High-grade GCr15 Steel (Heat Treated)
Roller Surface Treatment: Hard Chrome Coated
Number of Forming Stations: 16–24 (depending on profile design)
Roller Shaft Diameter: 70 mm
Shaft Material: High Tensile Steel, Precision Ground and Chromed
Main Drive Type: Gearbox TransmissionPower: 380V / 50Hz / 3 Phase (UAE standard)

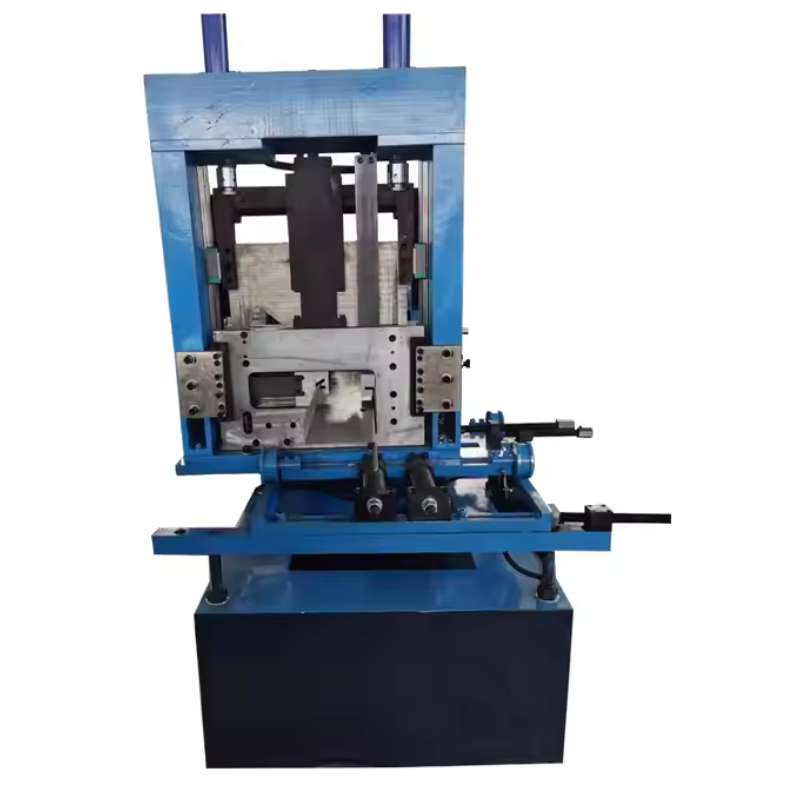

Cutting Method: Hydraulic Post-Cutting
Blade Material: Cr12MoV Steel, Heat-Treated
Control Type: PLC Control System (Siemens or Delta)
Operating Mode: Fully Automatic, Manual/Automatic Modes Available

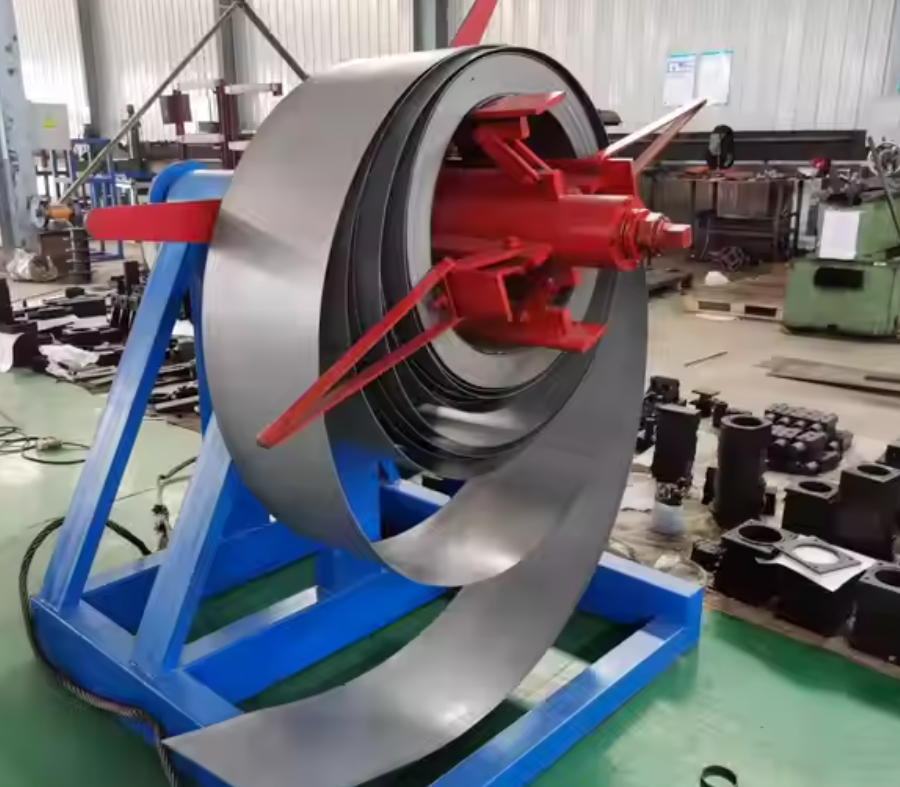

De-coiling System: Hydraulic or Manual Decoiler up to 5 tons capacity
Punching/Notching System: Optional Hydraulic Punching Units Available
Machine Frame: Welded Heavy-Duty Steel Frame
Thickness of Frame Steel: 20 mm
Profile Shape: Sigma Profile
Profile Width and Depth: Customizable Based on Project Needs
Length Tolerance: ±2 mm
Safety Features:
Protective Covers and Guards
Emergency Stop Buttons
Overload Protection System
Machine Matcher offers extensive customization to meet specific project requirements:
Profile Dimensions: Adjustable width and depth settings.
Material Specifications: Accommodates various steel grades and thicknesses.
Additional Features: Optional punching units, automated stacking systems, and advanced control interfaces.
Precision and Reliability: Ensures consistent product quality, reducing material waste and rework.
High Efficiency: Optimized for rapid production cycles, meeting tight project deadlines.
Robust Construction: Built with high-quality materials for longevity and minimal maintenance.
Comprehensive Support: Backed by Machine Matcher's dedicated customer service and technical assistance.
Q: Can the machine be customized for our specific profile?
A: Yes, Machine Matcher provides machines tailored to your unique profile dimensions and specifications.
Q: What types of materials are compatible with this machine?
A: The machine processes galvanized steel, cold-rolled steel, and mild steel with a yield strength of up to 350 MPa.
Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available upon request.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days, and shipping time depends on the destination port.
Q: What factors affect the final price of the machine?
A: Pricing is determined based on optional extras and customization requirements. Contact us for a tailored quote based on your specific needs.
Starting Price: Approximately $70,000 USD.
Machine Matcher ensures seamless delivery and support across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. All machines are new and custom-built to meet your specific profile and machine requirements.
All machines are covered by a one-year warranty from the date of dispatch, along with durable maintenance and repair support.
For a personalized quote or to discuss your specific requirements, please email your profile drawings and details to [email protected].
