Single Layer Roofing Panel Roll Forming Machine – UAE Specification and Full Product Overview
Built for Performance. Designed for the UAE Market.

Product Overview

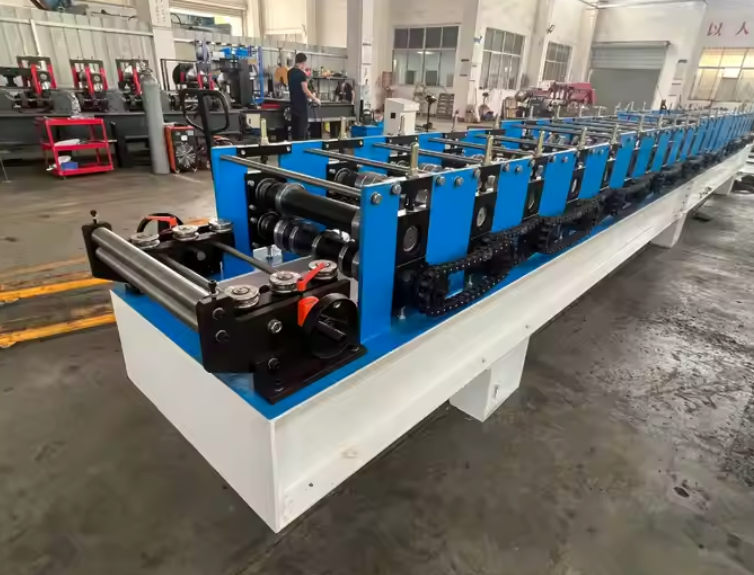

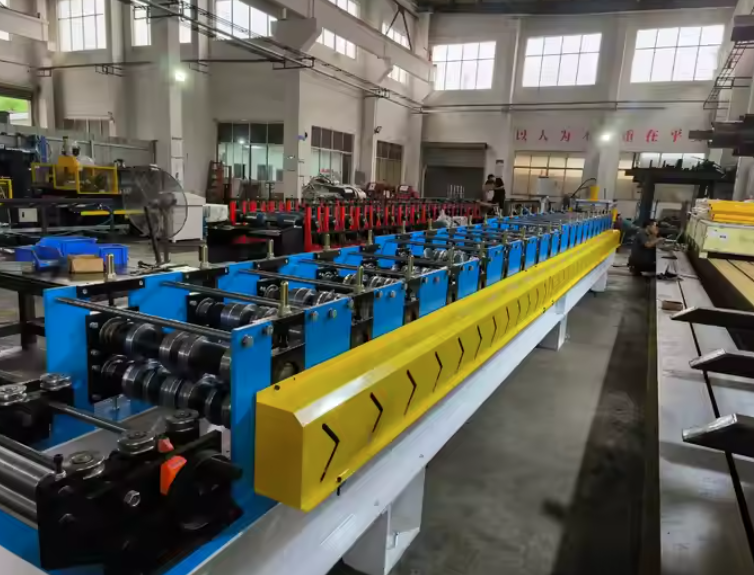

The Single Layer Roofing Panel Roll Forming Machine is an advanced, high-efficiency roll forming solution designed for producing precision roofing sheets widely used in the UAE’s residential, commercial, and industrial construction sectors. Built for continuous, uninterrupted production, this machine transforms metal coils into high-quality roofing profiles with minimal waste and maximum consistency.

Whether you're manufacturing trapezoidal, corrugated, or tile-style sheets, this single-layer roll forming machine delivers accurate shaping, consistent panel length, and fast operation, making it ideal for UAE-based manufacturers and metal fabrication companies that require robust output and long-term reliability.

All machines are new, custom-built, and deliverable across the UAE, including Dubai, Abu Dhabi, Sharjah, and beyond.

Industries Served

This machine caters to a wide range of sectors in the UAE, including:

• Construction & Infrastructure: Used for producing roof and wall panels for villas, warehouses, malls, and skyscrapers.

• Pre-Engineered Building (PEB) Companies: Ideal for large-scale steel structures requiring long-length roofing panels.

• Metal Fabrication Workshops: Suitable for custom panel production and job-specific installations.

• Real Estate Developers: Essential in fast-paced residential and commercial building projects.

• Agricultural & Industrial Warehousing: Used in production of weather-resistant roofing panels for barns, storage, and sheds.

Utilization Examples:

• Manufacture of trapezoidal sheets for steel roofs

• Corrugated panels for industrial cladding

• Long-span roofing sheets for logistics centers and parking structures

Machine Technical Specifications

• Machine Type: Single Layer Roofing Panel Roll Forming Machine

• Production Speed: 12–20 meters per minute (based on panel length and thickness)

• Material Thickness Range: 0.3mm – 0.8mm

• Material Width Range: 914mm – 1250mm (customizable based on profile)

• Material Types: Galvanized Steel (GI), Galvalume, PPGI, Aluminum

• Material Yield Strength: 235–550 MPa (34–80 ksi)

• Roller Material: High-grade GCr15 (hardened and precision ground)

• Roller Surface Treatment: Hard chrome coating for anti-rust and wear resistance

• Number of Forming Stations: 14–20 (depends on profile complexity)

• Roller Shaft Diameter: 70mm

• Shaft Material: High-strength 45# steel, precision machined

• Main Drive Type: Chain drive or gearbox (based on model)

• Power (UAE Spec): 380V / 50Hz / 3-phase

• Motor Power: 5.5–7.5 kW (depending on panel type)

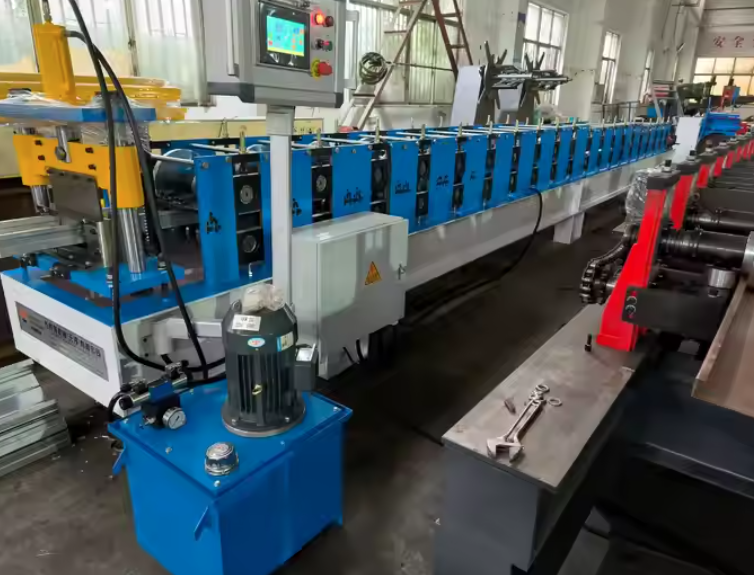

• Cutting Method: Hydraulic cutting system

• Blade Material: Cr12Mov (heat treated for longer blade life)

• Control Type: PLC control system with touch screen (Siemens or Delta)

• Operating Mode: Automatic + Manual modes for flexibility

• De-coiling System: Manual or hydraulic uncoiler (3–5 ton optional)

• Punching/Notching System: Optional (for ribbed profiles or notched corners)

• Machine Frame: Welded steel frame, stress-relieved for durability

• Thickness of Frame Steel: 16–22mm base steel

• Profile Shape: Trapezoidal / Corrugated / Tile (custom per drawing)

• Profile Width and Depth: Customized – e.g., 1000mm width, 28mm depth

• Length Tolerance: ±1.5mm per 3 meters

• Safety Features:

  • Full protective safety guards

  • Emergency stop button

  • Overload and overcurrent protection system

Materials Typically Used

• Galvanized Steel (GI): 0.35–0.7mm, 240–550 MPa (35–80 ksi)

• Pre-painted Galvanized (PPGI): 0.4–0.6mm, 50–70 ksi

• Aluminum Coils: 0.4–0.8mm, used in coastal or lightweight construction

Pricing & Customization

• Prices Start From: USD $35,000 (FOB) for base configuration

• What Affects the Final Price:

  • Profile complexity (tile vs. trapezoidal)

  • Speed upgrades or servo systems

  • Automatic stackers or uncoilers

  • Punching or embossing units

  • PLC brand and safety enclosures

Contact us to get a tailored quote based on your required profile dimensions, materials, and productivity goals.

Key Highlights – Why Choose This Machine?

Customization Options

• Profile customization based on drawing

• Automatic stacker and conveyor tables

• Hydraulic or manual uncoiler (3–10 tons)

• Embossing or notching add-ons

• Online printing or punching systems

• Servo motor upgrade for higher precision

Delivery & Warranty

• Delivery Available Across UAE: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, and more.

• Warranty: 1 Year from dispatch

• Support: Durable maintenance and spare parts support included

Quotation Support

If you have:

• A profile drawing

• Size requirements

• Coil specs (thickness, width, yield strength)

• Power preferences

Please email all details to [email protected] for a custom quote and machine proposal.

Questions & Answers

Q: Can I use this machine to make multiple types of roofing profiles?
A: Yes, with modular tooling or interchangeable roller sets. Or consider a double-layer roll former for two fixed profiles.

Q: Is this machine suitable for aluminum coil?
A: Yes, the machine can handle aluminum coils up to 0.8mm. Profile depth and design may need to be adapted.

Q: How long does delivery to Dubai or Abu Dhabi take?
A: Typical lead time is 35–60 days depending on customization. Delivery to UAE ports is coordinated via our logistics team.

Q: Can I get operator training?
A: Yes, remote support and optional on-site training packages are available.

Q: What’s the advantage of a hydraulic cutter over a fly-cutting system?
A: Hydraulic cutters offer better accuracy and are ideal for mid-speed, high-precision panel production, common in UAE markets.

For more details, quotes, or profile matching support, reach out to [email protected]
Let Machine Matcher connect you with the right roofing panel machine for your business.
