Slotted Channel Roll Forming Machine – United Arab Emirates

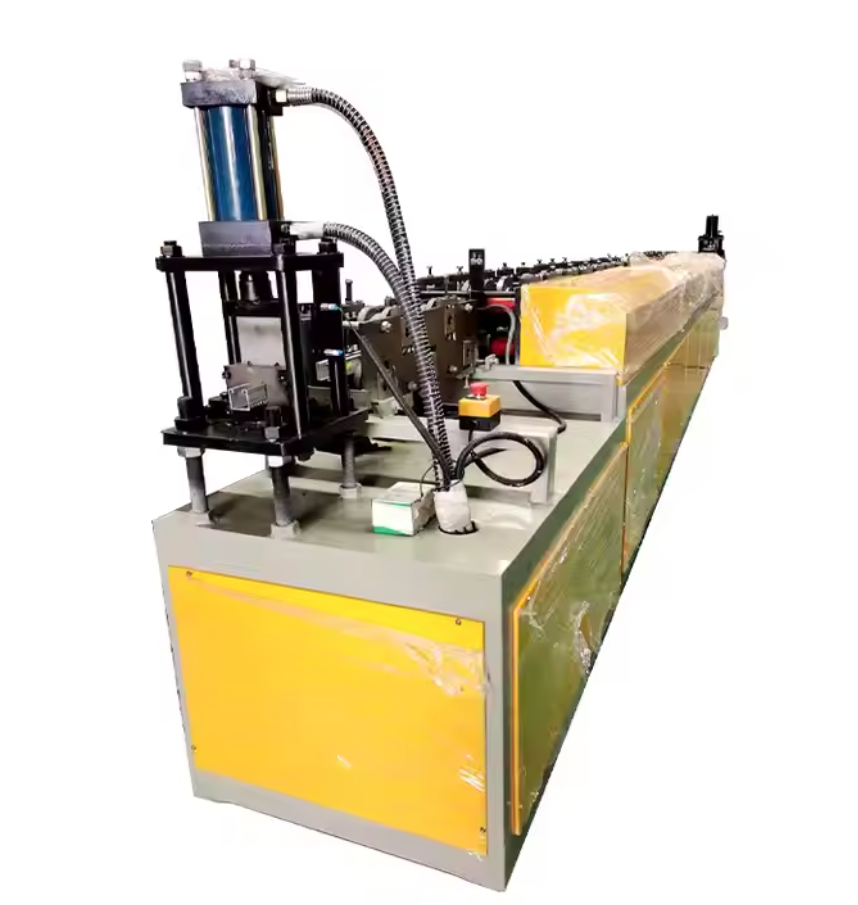

The Slotted Channel Roll Forming Machine is a high-performance, precision-engineered solution for manufacturing slotted steel channels commonly used in support frameworks, electrical enclosures, HVAC systems, and shelving. Designed for continuous and automated production, this machine combines robust construction, advanced electronics, and optional punching and slotting systems to meet the specific industrial requirements of clients in the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and beyond.
Whether you're manufacturing channels for cable trays, solar panel supports, warehouse racks, or light structural framing, this roll forming machine offers consistent profile accuracy, smooth operation, and high production efficiency.
Machine Type: Slotted Channel Roll Forming Machine
Capabilities: Roll forming slotted channels with optional inline punching/slotting units. Handles various material gauges and supports integration with coil feeders, stackers, and cutting units.
Electrical & Cable Management: Slotted channels for cable trays and raceways
Solar Energy: Mounting rails and support channels
HVAC: Duct and equipment supports
Construction & Infrastructure: Framing for partition walls, support structures
Storage & Shelving: Slotted beams and rack components
Automotive and Utility Vehicles: Lightweight channel frames and mounting supports
| Specification | Detail |
|---|---|
| Machine Type | Slotted Channel Roll Forming Machine |
| Production Speed | 10–20 meters/min (adjustable based on operation) |
| Material Thickness Range | 1.2 – 2.5 mm |
| Material Width Range | 60 – 300 mm (based on profile requirements) |
| Material Types | Galvanized Steel, Cold Rolled Steel, Aluminum |
| Material Yield Strength | Up to 350–550 MPa (50–80 ksi) |
| Roller Material | GCr15 high-grade steel |
| Roller Surface Treatment | Hard chrome plated |
| Number of Forming Stations | 14–22 (depends on profile complexity) |
| Roller Shaft Diameter | 60–75 mm |
| Shaft Material | High-strength alloy steel |
| Main Drive Type | Chain or Gear drive |
| Power (UAE compatible) | 380V / 50Hz / 3-phase |
| Motor Power | 11 – 15 kW |

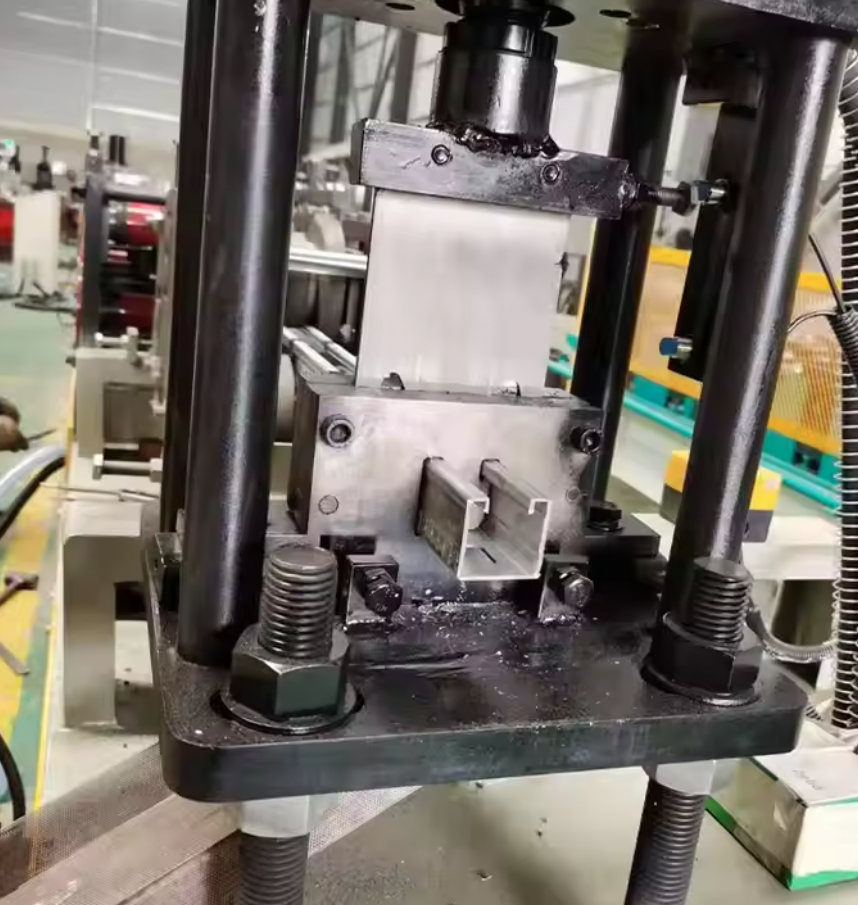

| Cutting Method | Hydraulic shearing (servo controlled optional) |
| Blade Material | Cr12Mov (heat-treated) |
| Control Type | PLC with HMI touchscreen |
| Operating Mode | Fully automatic with manual override |

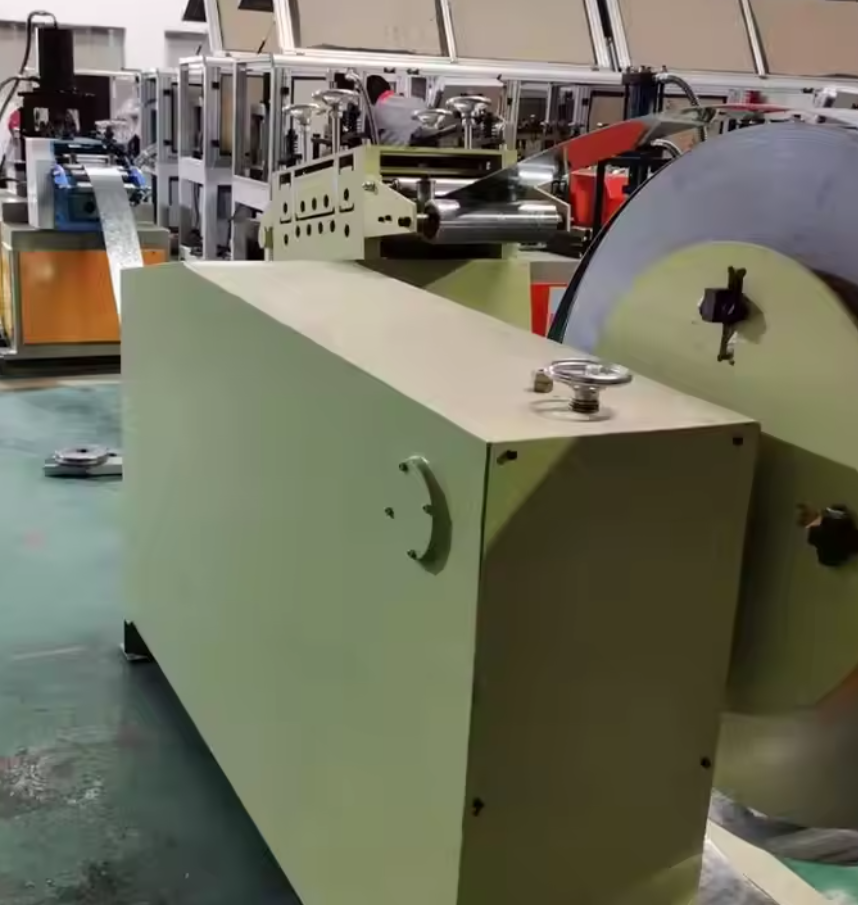

| De-coiling System | Manual or hydraulic decoiler (3–5 ton capacity) |
| Punching/Notching System | Optional hydraulic or servo punching |
| Machine Frame | Welded steel frame with heat treatment |
| Frame Steel Thickness | 20 – 25 mm |
| Profile Shape | Slotted C/U channel |
| Profile Width and Depth | Customizable (e.g., 41x21, 41x41, 41x61 mm) |
| Length Tolerance | ±1 mm |
| Safety Features | Protective covers, emergency stop, overload sensor |
Most commonly used materials with this machine include:
Galvanized Steel – 1.2 to 2.5 mm (typical)
Cold Rolled Steel – For indoor framing and non-corrosive environments
Aluminum – Where corrosion resistance or lightweight is critical
Yield Strength – 50–80 ksi (350–550 MPa)
Profile width and depth according to drawing

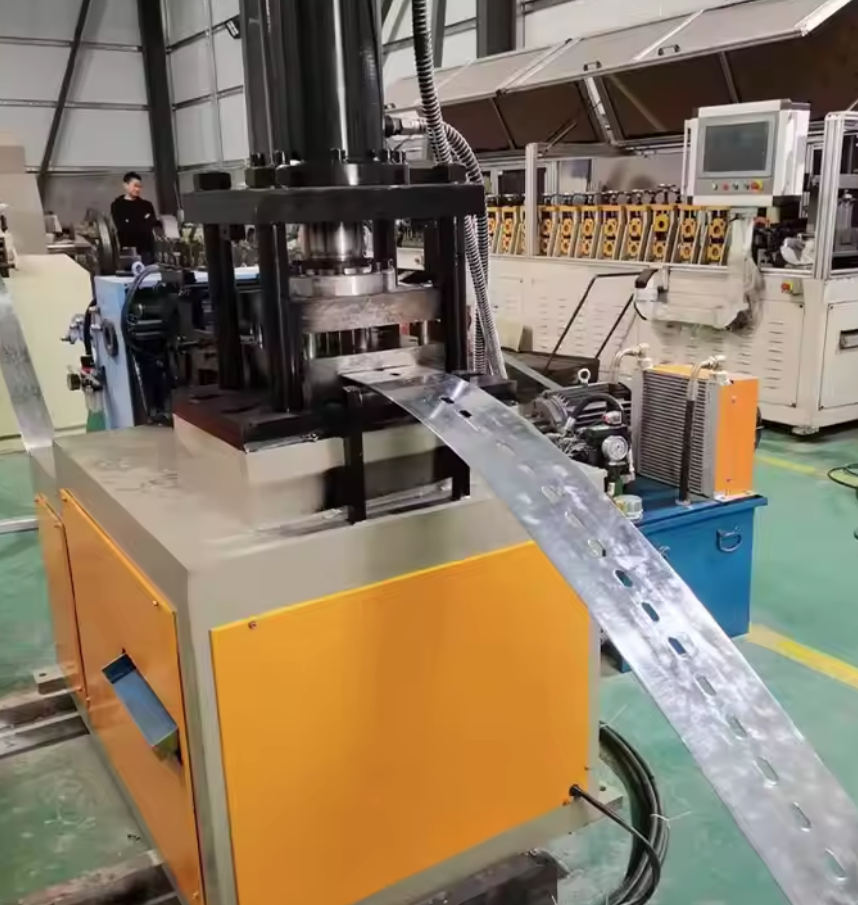

Inline punching (for different hole patterns)
Coil handling and automatic stacking system
Remote PLC monitoring system
Adjustable forming stations for multi-profile runs
Servo feeders and high-speed cutting
This machine is custom-built and delivered across the UAE, including:
Abu Dhabi
Dubai
Sharjah
Machines are new, tailored to your specifications, and built for UAE-standard power and compliance.
Prices Start From: $55,000 USD (depending on configuration)
What Affects Final Price:
Inline punching/notching system
Servo vs. hydraulic drive
Material width and gauge capacity
Profile complexity
Coil car, stacker, or automatic line integration
Contact us for a tailored quote based on your specific needs:
[email protected]
All machines are covered by a 1-year warranty from dispatch and include durable after-sales support, spare parts availability, and remote troubleshooting assistance.
Tailored Profiles – Built specifically for your slotted channel dimensions
Integrated Punching System – Eliminates secondary punching needs
Fast Turnaround – Efficient setup for rapid delivery in UAE
Heavy-Duty Frame – Built to last in high-demand environments
Cost-Efficient Automation – Reduces labor and maximizes throughput
Global Expertise, Local Support – Backed by Machine Matcher’s worldwide sourcing network and UAE customer service coverage
Q1: Can this machine handle both C and U slotted channels?
Yes, the roll forming system can be configured to produce both C and U-shaped slotted channels with minimal tooling changeover.
Q2: Can I submit my own profile drawings for machine design?
Absolutely. Send your drawings to [email protected], and we’ll provide a customized proposal.
Q3: What coil size can this machine accommodate?
With the optional hydraulic decoiler, up to 5-ton coils can be loaded.
Q4: Is operator training included?
Yes, operator training and full installation support can be arranged upon delivery.
Q5: How soon can this machine be delivered in the UAE?
Production and shipping typically take 8–12 weeks, depending on customization. Delivery to your UAE location is fully supported.
