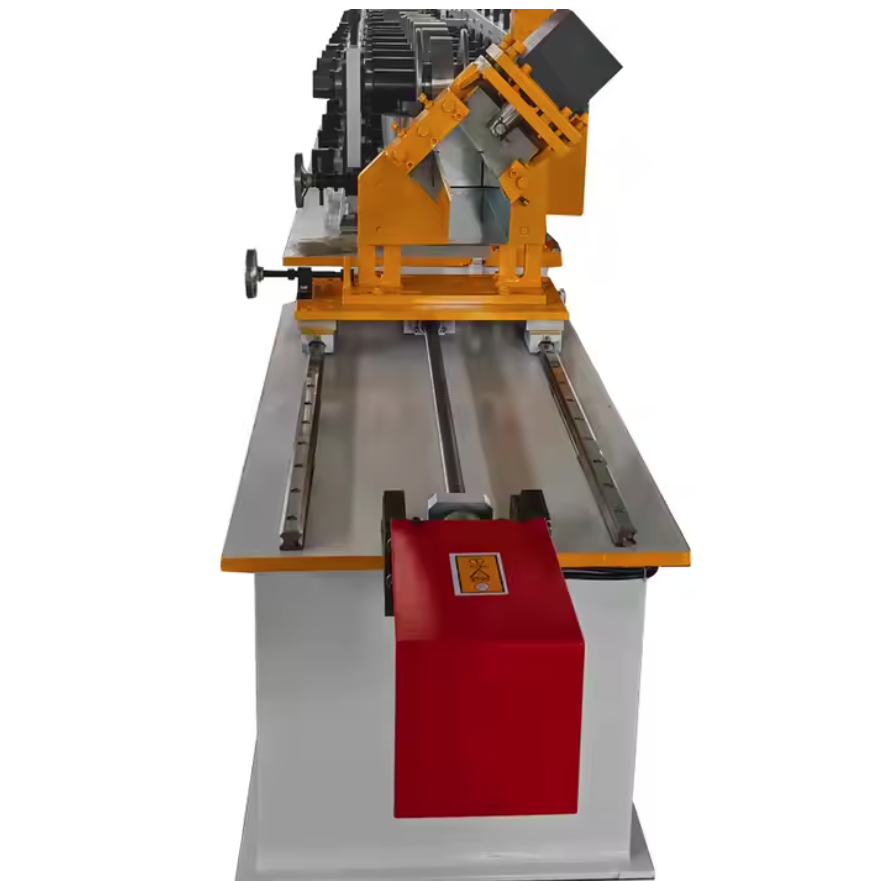

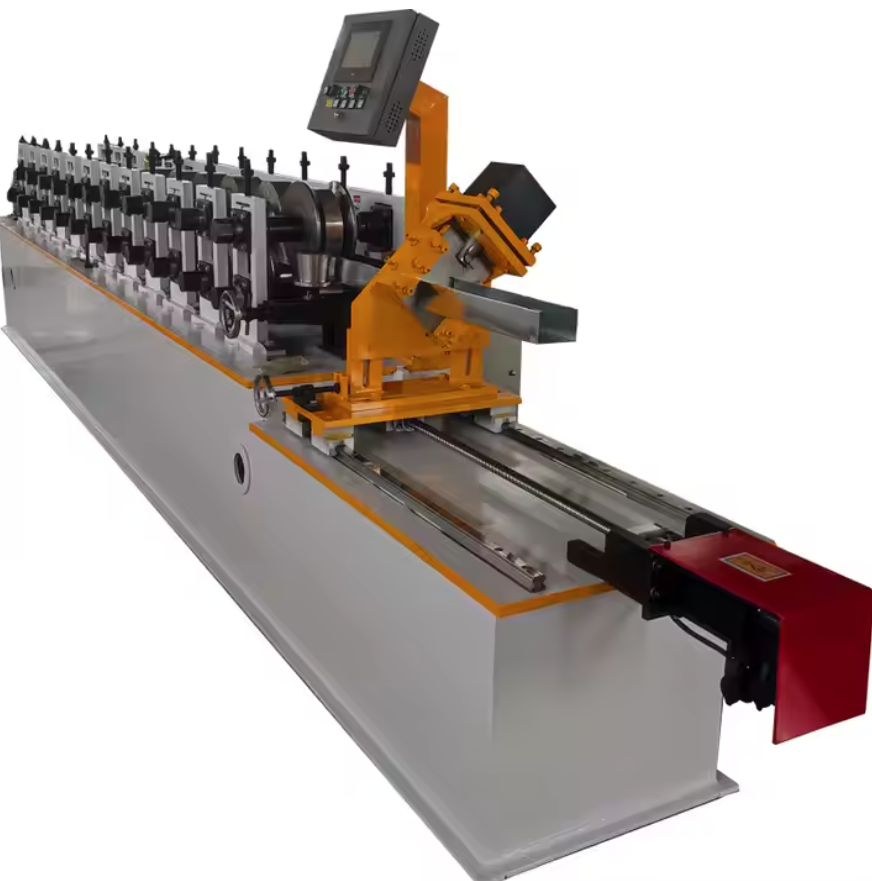

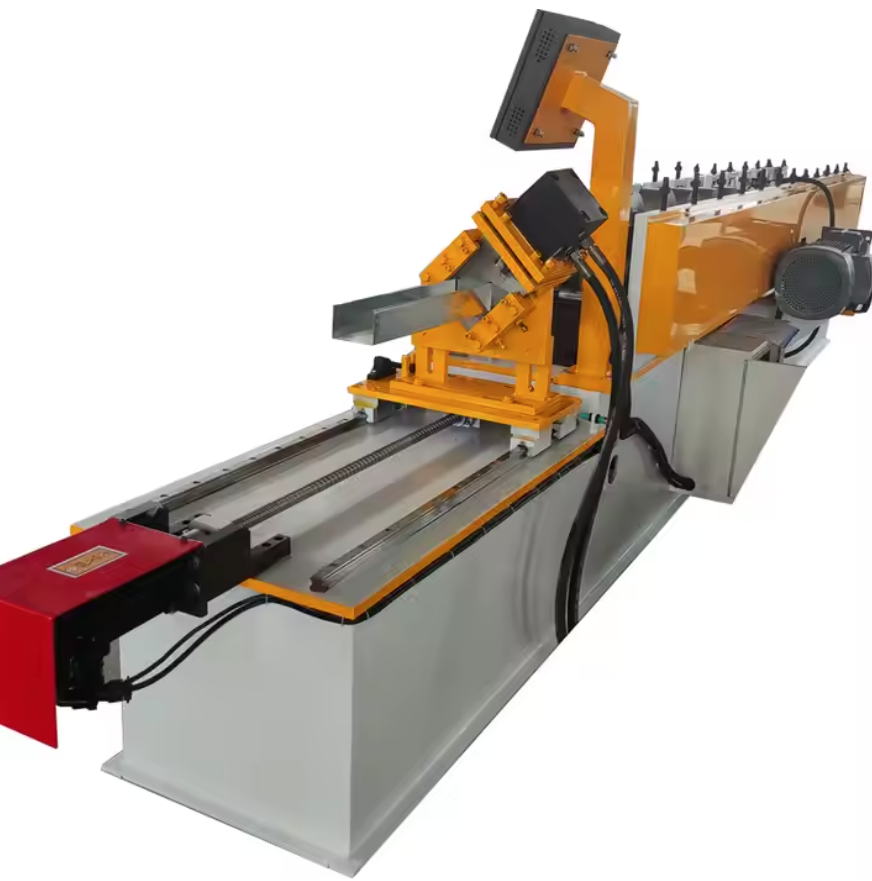

Steel Stud Roll Forming Machine – UAE
Precision. Productivity. Performance.
The Steel Stud Roll Forming Machine is purpose-built for manufacturing precision-engineered steel stud profiles used in wall framing systems. Designed for high-performance continuous production, this roll forming system delivers unmatched accuracy and efficiency, making it ideal for the growing construction and drywall partition markets in the United Arab Emirates, including Dubai, Abu Dhabi, and Sharjah.
This machine is fully customizable and capable of producing various stud profile shapes with quick tooling changeover, servo punching, and precision flying cutting. Built for UAE's demanding environments and power configurations, it is a dependable solution for light steel framing manufacturers, building contractors, prefab housing suppliers, and drywall system providers.
Construction and Civil Engineering
Prefabricated Housing Manufacturers
Interior Partition Contractors
Drywall System Suppliers
Commercial Fit-Out & Office Interiors
Industrial and Institutional Buildings
Example Applications:
Steel framing for walls, ceilings, and partitions in commercial towers in Dubai
Interior wall partitioning in hospitals and schools in Abu Dhabi
Prefab housing projects in Sharjah and other Emirates
Fast-track fit-out projects requiring precision studs and quick delivery
| Specification | Details |
|---|---|
| Machine Type | Steel Stud Roll Forming Machine |
| Production Speed | 30–60 meters/minute (depending on profile and punching complexity) |
| Material Thickness Range | 0.4 mm – 1.2 mm |
| Material Width Range | 100 mm – 300 mm (based on profile) |
| Material Types | Galvanized Steel (GI), Cold-Rolled Steel, Aluminum (on request) |
| Material Yield Strength | Up to 550 MPa (80 KSI) |
| Roller Material | GCr15 high-grade steel, heat-treated and precision-machined |
| Roller Surface Treatment | Hard chrome plating for corrosion resistance and extended life |
| Number of Forming Stations | 12–20 stations depending on profile complexity |
| Roller Shaft Diameter | 60 mm–75 mm |
| Shaft Material | High-strength steel (40Cr), precision ground |
| Main Drive Type | Gearbox driven or chain drive (based on buyer preference) |
| Power (UAE Compatible) | 380V, 50Hz, 3 Phase |
| Motor Power | 7.5 kW – 15 kW (customizable) |
| Cutting Method | Hydraulic flying cut-off or servo-tracking cut-off |
| Blade Material | Cr12MoV, hardened and ground |
| Control Type | PLC control (Siemens/Mitsubishi) with touchscreen HMI |
| Operating Mode | Fully automatic with manual override |
| De-coiling System | Manual or hydraulic de-coiler, 3–5 tons |
| Punching/Notching System | Servo or hydraulic punching (for cable entries, labels, bolt holes) |
| Machine Frame | Welded H-beam structure |
| Thickness of Frame Steel | 18–22 mm reinforced base |
| Profile Shape | U, C, Sigma or custom steel stud profiles |
| Profile Width and Depth | Customizable; common profiles: 50x40 mm, 75x40 mm, 100x50 mm |
| Length Tolerance | ±1.0 mm |
| Safety Features | Protective steel mesh covers, Emergency Stop Buttons, Overload Protection |
Typical Material: Galvanized Steel (G90 or G60 grade)
Thickness: 0.5 mm – 1.2 mm
Strength: 230 – 550 MPa (33 – 80 KSI)
Prices start from:
USD $45,000 depending on machine speed, punching units, profile types, and optional automation.
What affects the final price:
Number of punching heads and notching tools
Servo vs hydraulic cutting
Profile complexity (single profile vs interchangeable tooling)
Motor and drive system (chain or gearbox)
Degree of automation and PLC brand
Coil handling options (decoiler, stacker)
All machines are new and built to order, delivered anywhere across the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, and Fujairah, directly from our manufacturing partner.
Custom-Built for UAE Market – Power compatibility, climate considerations, and high-spec materials suited for local demand
Tooling Interchangeability – Produce multiple stud sizes on one machine
High-Speed Operation – Boost production for large-scale commercial projects
Servo Punching Integration – For custom slots and cutouts required in MEP and drywall systems
PLC + Touchscreen Control – User-friendly interface with recipe management
Local After-Sales Support – Reliable post-sale assistance and spare parts
How it helps your business:
By reducing manual punching, increasing forming precision, and automating coil-to-cut production, you can cut labor costs, reduce wastage, and speed up project delivery, giving you a competitive edge in high-volume construction contracts across the UAE.
Variable profile width tooling
Multi-profile cassette systems
Servo punching for branding and service holes
Coil handling automation (automatic decoiler, coil car)
Remote control or remote diagnostics
Offline software integration for project management
Warranty: 1-year warranty from dispatch
Support: Ongoing support for maintenance, repairs, and spare parts
Installation & Training: Optional setup, commissioning, and operator training available
If you have profile drawings, preferred sizes, or material details, send them to [email protected] for a tailored quotation. The more details you provide, the better we can match you with the right solution.
Q: Can this machine produce both stud and track profiles?
Yes, with the right tooling setup or a cassette-based system, the machine can switch between stud and track production.
Q: How many profiles can one machine make?
Depending on the tooling system, you can produce multiple widths or shapes using manual or automatic adjustment.
Q: What is the delivery time to the UAE?
Typical production and delivery time is 45–60 days, depending on customization and factory schedule.
Q: Is installation included?
Installation and commissioning can be provided on request by our trained technicians.
Q: Do you offer training for machine operators?
Yes, training is available either remotely or on-site to ensure safe and efficient operation.
For expert guidance and a quote tailored to your steel stud production needs, contact Machine Matcher today.
