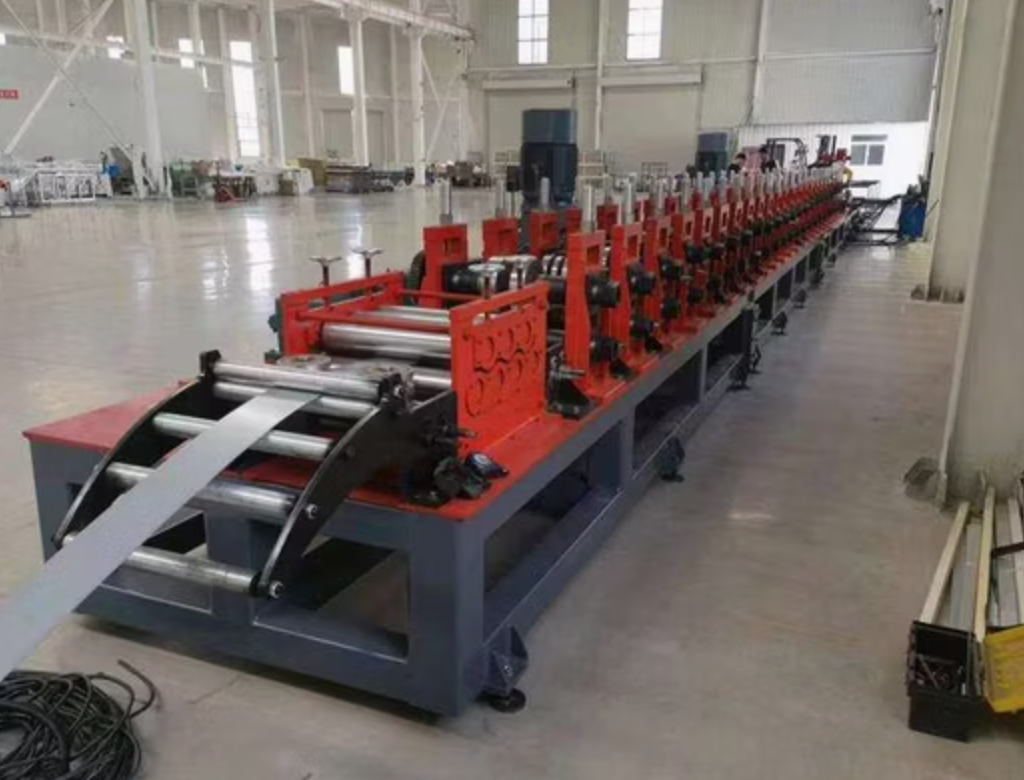

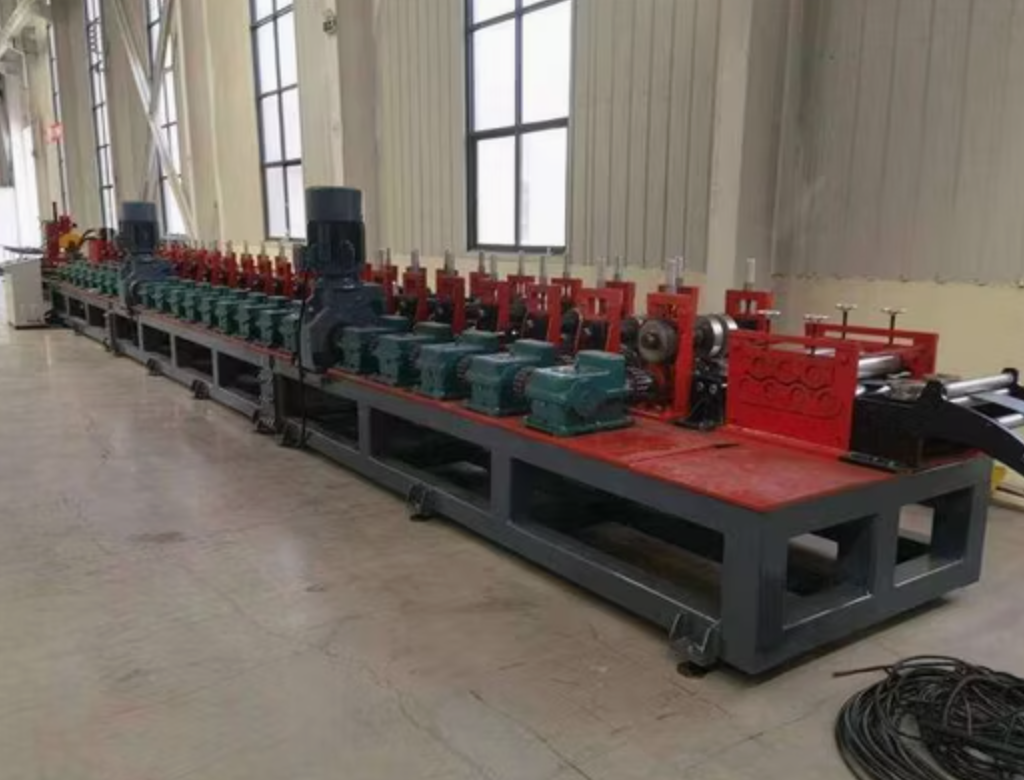

The Strut Channel Roll Forming Machine in Albania is a high-accuracy production line engineered to manufacture various U, C, or slotted channel profiles used in electrical support systems, solar panel structures, and industrial framing.
These versatile channels are essential in electrical installations, HVAC duct supports, cable tray frameworks, mechanical systems, and renewable-energy mounting structures. With Albania’s growing industrial and energy infrastructure, local production of strut channels offers a competitive edge in quality and lead time.
At Machine Matcher, every strut channel roll forming machine is custom-built to your profile drawing, material type, and power configuration. All machines are brand-new, CE-certified, and designed for long-term precision with PLC automation, hydraulic punching, and servo feeding for fast, repeatable production.
Machine Matcher supplies complete turnkey systems — including uncoilers, punching units, roll forming stations, hydraulic cutting, and automatic stackers — supported by global 24/7 technical service.
| Specification | Details |
|---|---|
| Machine Type: | Strut Channel Roll Forming Machine |
| Production Speed: | 10–25 m/min (adjustable depending on punching type) |
| Material Thickness Range: | 1.5–2.5 mm (optional up to 3.0 mm) |
| Material Width Range: | 100–250 mm (customizable) |
| Material Types: | Galvanized Steel (GI), Mild Steel (MS), Stainless Steel, Aluminum |
| Material Yield Strength: | Up to 550 MPa |
| Roller Material: | GCr15 bearing steel, hardened and chrome-plated |
| Roller Surface Treatment: | Hard chrome coating and precision grinding |
| Number of Forming Stations: | 14–24 stations (profile-dependent) |
| Roller Shaft Diameter: | 70–90 mm |
| Shaft Material: | 45# high-strength steel |
| Main Drive Type: | Gearbox or chain drive |
| Power (Albania): | 400 V / 50 Hz / 3 Phase |
| Motor Power: | 15–30 kW |
| Cutting Method: | Hydraulic post-cut or flying shear |
| Blade Material: | Cr12MoV, heat-treated for long life |
| Control Type: | PLC with HMI touchscreen (Siemens / Delta / Mitsubishi) |
| Operating Mode: | Fully automatic with manual option |
| De-coiling System: | 3–10 ton manual or hydraulic uncoiler |
| Punching/Notching System: | Hydraulic or servo punching press, programmable dies |
| Machine Frame: | 400–450 H-beam welded structure |
| Thickness of Frame Steel: | 16–20 mm |
| Profile Shape: | Standard 41×41, 41×21, 41×62, or custom |
| Profile Width and Depth: | Width 21–62 mm, height 41 mm |
| Length Tolerance: | ±1 mm/m |
| Safety Features: | Full enclosure, E-stop, overload protection |
| Protective Covers/Guards: | Transparent safety covers |
| Emergency Stop Button: | Installed at entry, exit, and control panel |
| Overload Protection System: | Built into main motor and hydraulic unit |
Servo feeding and measuring system
Hydraulic punching and embossing stations
Automatic stacker and counting system
Coil car and hydraulic coil tipper
Remote PLC monitoring and diagnostics
Tooling for slotted or unslotted channel
Dual-size roll tooling system (quick-change cassette)
Inline labeling and marking device
Automatic lubrication and maintenance reminders
Sound-insulated safety enclosure
All strut channel lines are built new, tested under load, and shipped with test video, wiring diagrams, and installation guides.
Strut channels are structural metal framing systems designed for supporting mechanical, electrical, and plumbing installations. They are also used in solar mounting systems, racking frameworks, and industrial shelving.
Plain Channel (Unslotted) – Used for heavy structural applications.
Slotted Channel – For flexible bolt and bracket mounting.
Back-to-Back Channel – For double-strength installations.
Solar Mounting Channel – For panel support and frame assembly.
Width: 21 mm – 62 mm
Height: 41 mm
Thickness: 1.5–2.5 mm
Length: 2.4–6.0 m (programmable)
Galvanized Steel (GI): Economical and corrosion-resistant.
Hot-dip Galvanized Steel: For outdoor and solar applications.
Stainless Steel: For industrial and chemical environments.
Aluminum: Lightweight and non-corrosive.
The Albanian market is seeing strong growth in infrastructure, solar energy, and electrical systems, all of which rely heavily on strut channel framing.
Electrical contracting and cable management
Solar power mounting structures
HVAC and mechanical installations
Industrial and warehouse shelving systems
Construction and commercial fit-outs
Transportation and logistics infrastructure
With expanding industrial parks in Tirana, Durrës, and Elbasan, local manufacturers can benefit from domestic channel production to reduce import costs and shorten project delivery times.
Machine Matcher’s strut channel lines help Albanian companies achieve international-grade precision with local cost advantages.
Each machine is shipped fully assembled, calibrated, and tested for plug-and-play installation.
Installation Steps:
Place the machine on a leveled concrete base.
Connect hydraulic and electrical systems.
Load coil and test feed alignment.
Adjust roller gaps and calibrate PLC sensors.
Run trial production for fine-tuning.
Machine Matcher provides:
Remote installation and commissioning support
Optional on-site technician setup in Albania or nearby regions
Operator and maintenance training (manual and video tutorials)
Regular preventive maintenance ensures continuous precision forming.
Daily
Clean rollers and guides.
Check coil alignment and punching accuracy.
Weekly
Lubricate bearings and chain drives.
Check hydraulic oil levels.
Monthly
Tighten bolts and inspect sensors.
Calibrate PLC encoder readings.
Annually
Re-align roller stations.
Replace blades and hydraulic seals.
Conduct full safety inspection.
Machine Matcher offers:
Spare parts (rollers, shafts, blades, bearings)
Remote diagnostics and software updates
Preventive maintenance service plans
24-hour global technical support
Pricing varies by automation level, punching configuration, and output speed.
| Model Type | Configuration | Approx. Price (USD) |
|---|---|---|
| Basic Model | Manual uncoiler, basic PLC, post-cut | $85,000 – $120,000 |
| Mid-Range Model | Hydraulic uncoiler, servo feeder, auto punching | $120,000 – $180,000 |
| High-End Model | Full servo line, dual-tray tooling, automatic stacker | $180,000 – $280,000+ |
All machines include:
Custom profile design and drawing confirmation
Pre-shipment testing and inspection report
Packaging and export documentation
Optional setup and operator training
Machine Matcher supplies strut channel roll forming machines across:
Albania
Kosovo
North Macedonia
Montenegro
Greece
Italy
Turkey
United Kingdom and Europe
Each system is ISO and CE-certified, compatible with local voltage and control standards, and backed by regional technical support.
100% new machines custom-engineered for your channel profile
CE-certified manufacturing
24/7 global technical and PLC support
Pre-delivery inspection with video report
Local service teams in Europe
OEM and aftermarket spare parts
Fast delivery and export documentation handling
Decades of roll forming industry expertise
Machine Matcher helps you build reliable, scalable strut channel production lines that meet European quality standards at local operating costs.
Q1: What is a strut channel roll forming machine?
A: It’s a continuous production line that shapes steel coils into strut channel profiles used in construction, solar, and electrical framing systems.
Q2: Can one machine produce multiple channel sizes?
A: Yes — by using adjustable tooling or interchangeable cassettes, you can make various channel widths and slot patterns.
Q3: What materials are best for Albania’s market?
A: Pre-galvanized or hot-dip galvanized steel is most common for indoor and outdoor projects, offering strength and corrosion resistance.
Q4: How fast can the machine produce?
A: Standard speeds range from 10–25 meters per minute, depending on punching type and material thickness.
Q5: How long does installation take?
A: Typically 3–5 days, including electrical setup and operator training.
Q6: What after-sales support is available?
A: Machine Matcher provides remote PLC access, spare parts supply, maintenance contracts, and on-site service.
