Suspended Ceiling Roll Forming Machine – UAE Market
The Suspended Ceiling Roll Forming Machine is a precision-engineered system designed for the efficient and high-speed production of lightweight metal profiles used in suspended or false ceiling systems. These profiles are critical in modern commercial, industrial, and residential construction, providing the framework for ceiling tiles and acoustic panels.
This machine is ideal for manufacturers and contractors in the UAE construction sector, where demand for durable, corrosion-resistant, and precisely formed suspended ceiling systems continues to grow. Whether you are setting up a new factory in Sharjah or expanding production in Dubai or Abu Dhabi, this fully automatic line delivers exceptional performance, tailored to your specifications.

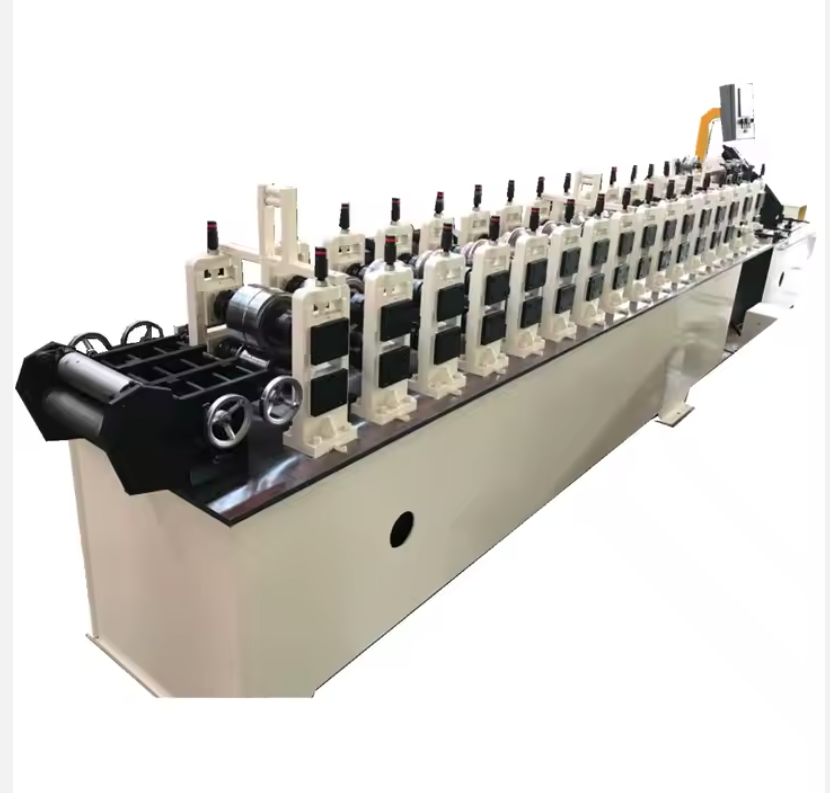

This fully automated roll forming system is designed to produce standard suspended ceiling profiles such as T-bars, main runners, cross tees, and wall angles. With a compact footprint and robust construction, the machine operates reliably even in the demanding conditions of the UAE. High-precision rollers, accurate cutting, and fast production speeds ensure minimal material waste and consistent output.
This machine supports galvanized steel and pre-painted steel coils within a standard gauge range. Optional features like servo notching and hydraulic punching can be added to match your specific profile drawing or ceiling grid system.
This machine serves manufacturers and suppliers producing ceiling profiles for:
Commercial buildings (offices, malls, airports)
Hospitals and clean rooms
Educational institutions
Industrial and logistics facilities
Residential high-rise buildings
Suspended ceiling systems are in high demand throughout the UAE due to their acoustic insulation properties, easy maintenance access, and modern aesthetic appeal.
| Specification | Details |
|---|---|
| Machine Type | Suspended Ceiling Roll Forming Machine |
| Production Speed | 30–45 meters per minute |
| Material Thickness Range | 0.3 – 0.6 mm |
| Material Width Range | 50 – 300 mm (customizable) |
| Material Types | Galvanized Steel, Pre-painted Steel |
| Material Yield Strength | Up to 280 MPa |
| Roller Material | GCr15 steel, heat-treated and hard chrome plated |
| Roller Surface Treatment | Polished + Hard Chrome Coated |
| Number of Forming Stations | 12–20 stations depending on profile |
| Roller Shaft Diameter | 40–60 mm |
| Shaft Material | High-grade steel, precision ground |
| Main Drive Type | Chain Drive or Gearbox Drive |
| Power (UAE Specification) | 380V / 50Hz / 3-phase |
| Motor Power | 5.5 – 7.5 kW |

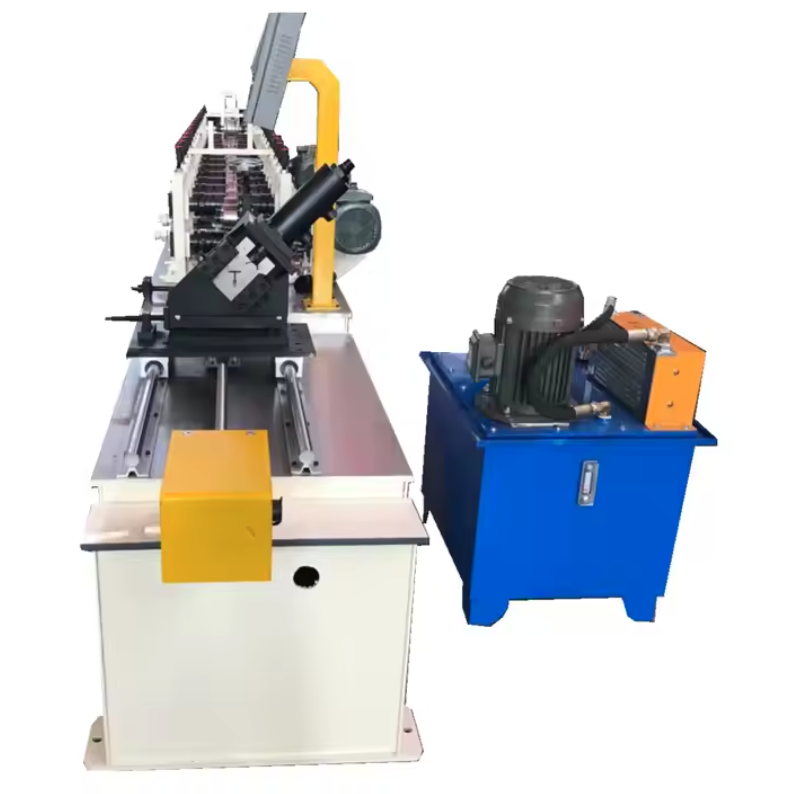

| Cutting Method | Hydraulic Flying Cutting |
| Blade Material | Cr12MoV (heat treated) |
| Control Type | PLC (Siemens, Delta, or Mitsubishi) |
| Operating Mode | Fully Automatic with Touch Screen Interface |
| De-coiling System | Manual or Hydraulic Uncoiler (3–5 tons) |
| Punching/Notching System | Optional hydraulic unit or servo notching |
| Machine Frame | Welded steel structure |
| Thickness of Frame Steel | 16–20 mm |
| Profile Shape | T-grid, Wall Angle, Cross Tee, Main Tee, etc. |
| Profile Width and Depth | Customizable – based on provided drawing |
| Length Tolerance | ±1.0 mm |
| Safety Features | Emergency Stop, Overload Protection, Guards |
| Protective Covers/Guards | Included for all moving parts |
| Emergency Stop Button | Standard on control panel |
| Overload Protection System | Built-in |
Prices start from: USD $35,000
Average price range: USD $35,000 – $65,000 depending on configuration
Number of forming stations
Profile complexity and width
Punching and notching unit inclusion
Type and size of uncoiler
Motor and PLC brand preferences
Additional safety enclosures or automation level
To receive an accurate quote tailored to your requirements, please send your profile drawing, material specifications, power supply info, and delivery location to: [email protected]
All machines are new and custom-built according to your specifications. Delivery is available throughout the UAE, including:
Dubai
Abu Dhabi
Sharjah
Ajman, Fujairah, Ras Al Khaimah, and Umm Al Quwain
Machines are shipped directly from our manufacturing partners with full installation guidance and remote or on-site setup support.
1-Year Warranty (from dispatch date)
Remote diagnostics and spare parts support
Optional annual maintenance packages available
Q1: Can the machine produce multiple ceiling profile types?
A: Yes, with interchangeable tooling or additional rollers, the machine can produce different T-grid and wall angle profiles.
Q2: How long does it take to build and ship this machine to the UAE?
A: Standard production time is 30–60 days. Shipping to UAE ports typically takes 2–3 weeks depending on location.
Q3: Can I customize the profile shape to match my ceiling system?
A: Absolutely. We can fully tailor the profile based on your drawing, including dimensions, punching, and embossing options.
Q4: Is installation support provided?
A: Yes. We offer both on-site and remote setup support. Installation manuals and video guides are included.
Q5: What maintenance is required?
A: Routine lubrication, roller cleaning, and bolt tightening are key. We also offer spare parts and service support.
