To express an interest in this machine please submit the form below.

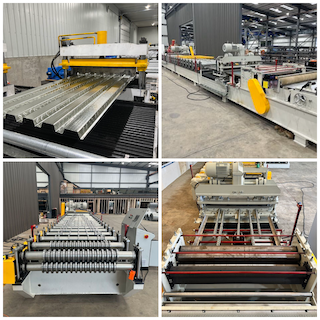

The Type N Metal Roof Deck Roll Forming Machine is a specialized, heavy-duty machine designed for manufacturing high-strength Type N metal roof deck panels. This machine is ideal for construction and roofing applications where superior spanning capability and structural integrity are required. Type N metal decking is commonly used in commercial, industrial, and large-scale infrastructure projects across the United States due to its deep corrugation and enhanced load-bearing capacity.
The Type N Metal Roof Deck Roll Forming Machine is engineered to meet the rigorous demands of the U.S. roofing and construction industry. It is built with high-performance components to ensure precision, durability, and efficiency in forming metal deck profiles from 18-gauge to 24-gauge steel.
This roll forming machine operates with a 32 HP motor, providing substantial power to drive the 28 forming stations, ensuring a smooth and accurate profile. The hydraulic shear cutting system delivers clean cuts with minimal material waste, while the optional safety covers and E-stops enhance operational safety.
The machine’s chain drive and gearbox system provide reliability, reducing maintenance needs and increasing uptime. Designed to operate on a 480V – 3 Phase – 60Hz power supply, this machine meets North American industrial power requirements, making it an excellent choice for manufacturing plants and metal fabrication shops across the United States.
| Specification | Details |
|---|---|
| Material Thickness | 18 gauge – 24 gauge |
| Machine Weight | 20 tons |
| Machine Footprint | 85 feet |
| Main Power Supply | 480V – 3 Phase – 60Hz |
| Motor Power | 32 HP |
| Drive System | Chain Drive / Gearbox |
| Forming Stations | 28 |
| Cutting Type | Hydraulic Shear |
| Safety Covers | Optional |
| Emergency Stops (E-Stops) | Included |
The Type N metal roof deck is widely used in various applications, including:
The speed varies depending on the material thickness and configuration, but it typically ranges from 30–50 feet per minute (FPM).
Yes, it can process galvanized steel, stainless steel, and aluminum, provided they fall within the 18-24 gauge thickness range.
Yes, the hydraulic shear system is designed for precision cutting and can be adjusted based on different panel lengths and specifications.
Yes, it requires a 480V – 3 Phase – 60Hz power supply, which is standard in most U.S. industrial facilities.
The machine includes E-stops for emergency shutdown and optional safety covers to prevent accidental contact with moving parts.
The machine footprint is 85 feet, so a spacious production area is required to accommodate the machine and its material handling components.
Regular lubrication of moving parts, inspection of the hydraulic system, and checking the gearbox and chain drive system for optimal performance.
This machine is designed specifically for Type N metal decking, providing stronger spans and higher load-bearing capacity compared to Type B and other roof deck profiles.
Yes, customization options include additional safety features, automated stacking systems, and upgraded PLC controls for better automation.
The Type N Metal Roof Deck Roll Forming Machine is available from leading roll forming machine manufacturers and metal fabrication equipment suppliers in the United States.
The Type N Metal Roof Deck Roll Forming Machine is an essential investment for manufacturers producing high-strength metal decking for commercial, industrial, and infrastructure projects in the United States. With its robust design, efficient operation, and advanced safety features, this machine is well-suited for high-volume production in metal fabrication facilities across the country.
For businesses looking to expand their production capabilities, this machine offers the reliability and efficiency needed to meet the growing demand for Type N metal decking in the U.S. construction industry.
