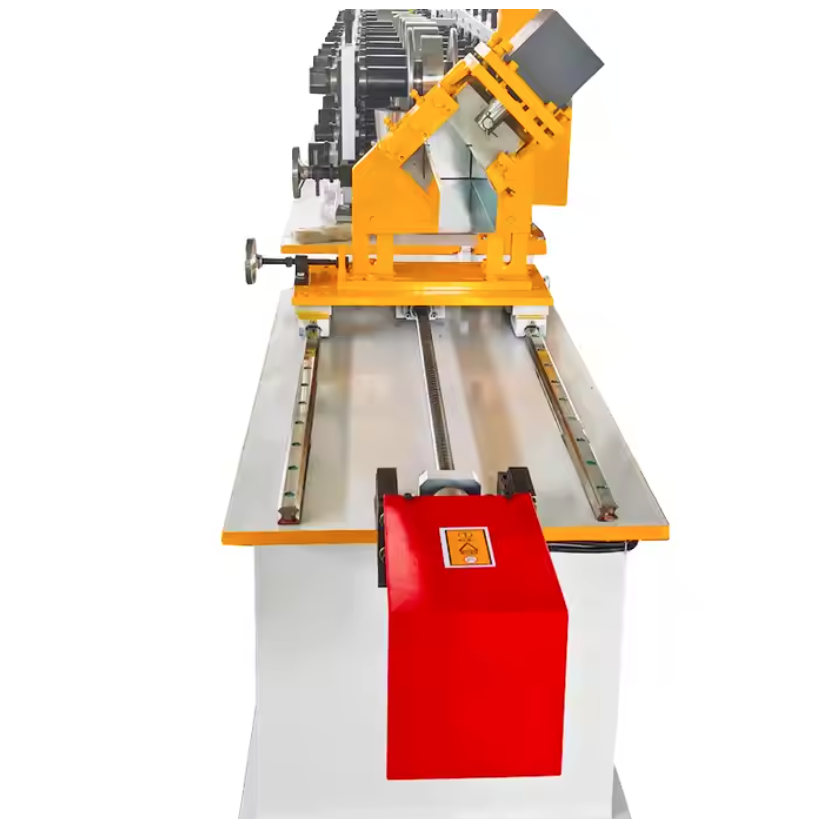

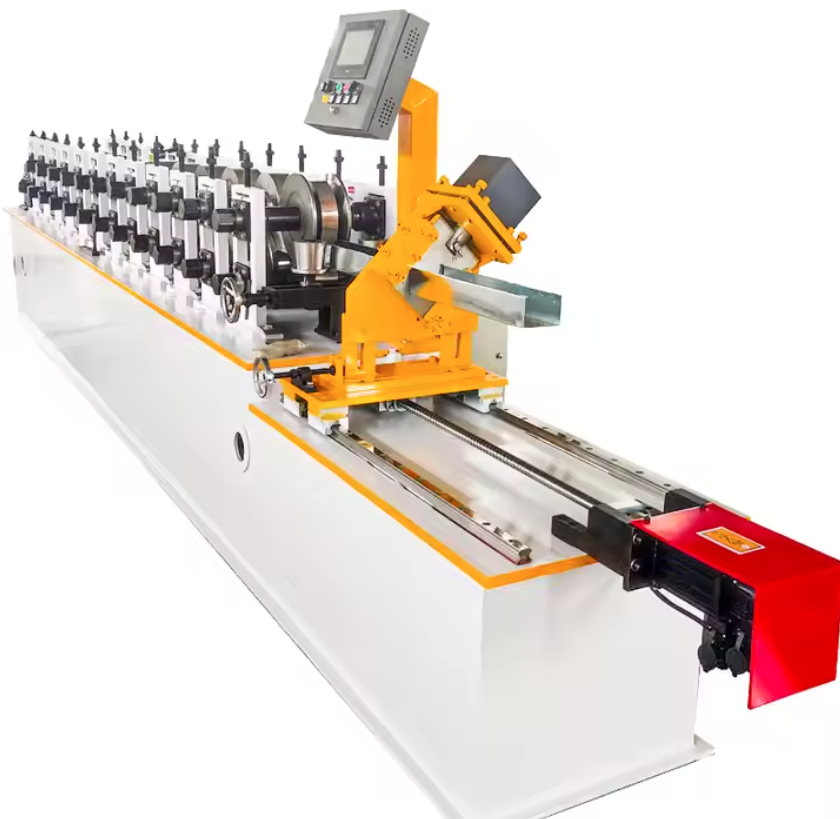

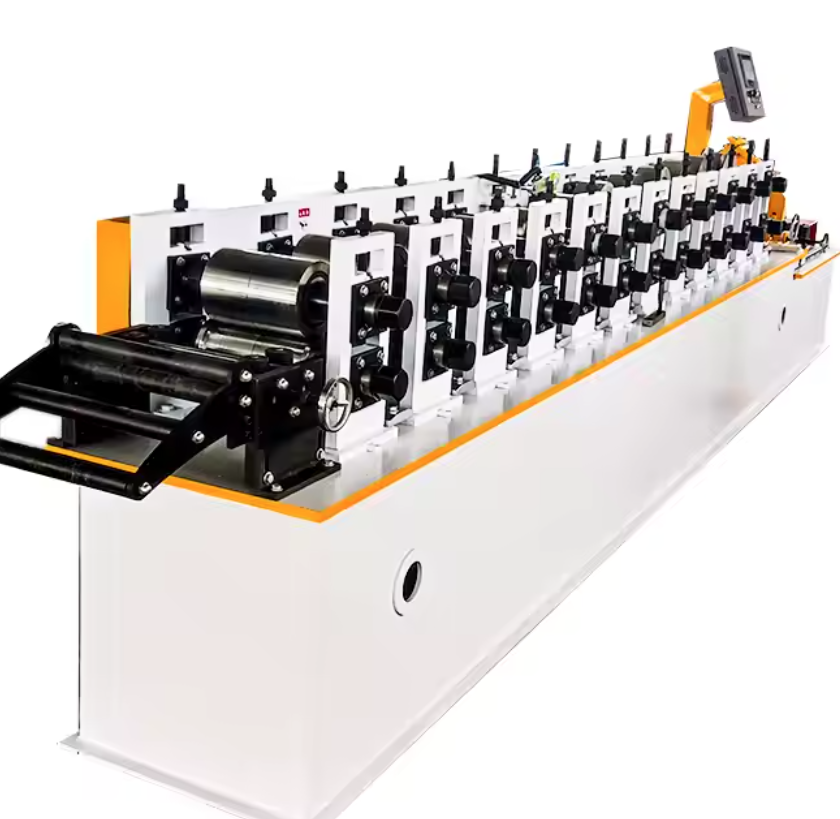

U Profile Roll Forming Machine – United Arab Emirates
The U Profile Roll Forming Machine from Machine Matcher is a high-performance, precision-engineered solution designed for continuous production of U-shaped metal profiles. Built to meet the demands of UAE-based manufacturers, this roll forming machine delivers superior quality, speed, and durability for clients across a wide range of industries.
Whether you're based in Abu Dhabi, Dubai, or Sharjah, this machine is custom-built and delivered directly to your facility. Designed to handle a variety of materials and gauges, this roll forming machine is the ideal solution for both light and heavy-duty applications.
Our U profile roll forming machines are trusted across multiple industries, including:
Construction & Infrastructure: For metal framing, partitions, support channels, wall studs, ceiling grids.
Electrical & Cable Management: Used in fabricating cable trays and support brackets.
Storage & Racking Systems: Produces structural profiles for shelves and racking solutions.
HVAC: For duct framing and ventilation channel support.
Automotive and Transportation: Lightweight framing profiles for interiors and logistics vehicles.
Furniture & Fixtures: Precision U channels for structural and aesthetic use in modular furniture systems.
Example Applications:
U Channels for dry wall and ceiling systems
Cable management U profiles
Structural framing for light steel construction
Machine Type: U Profile Roll Forming Machine
Profile Shape: U Channel / U Profile
Profile Width and Depth: Customizable to customer profile drawings
Production Speed: 10–25 m/min (dependent on profile complexity)
Length Tolerance: ±1 mm
Operating Mode: Fully automatic with touch screen PLC control
Customization Options:
Custom profile dimensions
Extra punching/notching stations
Increased line speed
Integration with packaging lines or stackers
| Feature | Specification |
|---|---|
| Material Thickness Range | 0.4 mm – 2.5 mm |
| Material Width Range | Up to 600 mm |
| Material Types | Galvanized Steel, Cold Rolled Steel, Stainless Steel, Aluminum |
| Material Yield Strength | Up to 350 MPa (51 ksi) |
| Roller Material | GCr15 (High-grade alloy steel) |
| Roller Surface Treatment | Hard chrome plated for corrosion resistance |
| Number of Forming Stations | 12–18 (varies by profile design) |
| Roller Shaft Diameter | 60 mm |
| Shaft Material | High-strength forged steel |
| Main Drive Type | Gearbox-driven or chain drive (as required) |
| Power (UAE configuration) | 380V / 50Hz / 3 Phase |
| Motor Power | 7.5 kW (adjustable based on configuration) |
| Cutting Method | Hydraulic cutting system (post-cut or flying cut) |
| Blade Material | Cr12MoV (hardened and heat-treated) |
| Control Type | PLC control with HMI (brands like Siemens or Delta) |
| De-coiling System | Manual or hydraulic uncoiler (3–5 ton optional) |
| Punching/Notching System | Optional hydraulic station for slots or holes |
| Machine Frame | Welded steel frame, stress relieved |
| Frame Steel Thickness | 20 mm base frame (heavy-duty) |
| Safety Features: | Protective Covers, Emergency Stop Button, Overload Protection System |
Q: Can the machine be customized for our profile?
A: Yes. Every U profile roll forming machine from Machine Matcher is custom-built to your specific drawings and dimensions. Just send your profile drawing to [email protected] to get started.
Q: What type of material is normally used with this machine?
A: Common materials include galvanized steel (G90/G60), cold rolled steel, aluminum, and stainless steel, typically in gauges ranging from 0.4 mm to 2.5 mm and up to 51 ksi yield strength.
Q: Is remote installation support available?
A: Yes, we offer remote video guidance. On-site installation and training in the UAE is available upon request.
Q: What is the lead time for manufacturing and shipping?
A: Production generally takes 30–60 days. Shipping timelines vary based on your location in the UAE, typically arriving at ports in Dubai, Abu Dhabi, or Sharjah.
Starting Price: From USD 48,000 (standard configuration)
What affects the final price?
Profile complexity
Additional punching or notching units
Custom motor power or automation
Material feeding or stacking systems
Note: Pricing is indicative and varies based on customization needs. For a precise quote, please email your technical details and profile drawing to: [email protected]
Custom-Built Machines: Every unit is built specifically for your U profile design, ensuring perfect output from day one.
Heavy-Duty Design: Reinforced frame and hardened rollers for long machine life, even in demanding UAE environments.
Fast Turnaround: With a lead time of 30–60 days, we keep your project on track.
Advanced Automation: Smart PLC controls reduce labor needs and improve consistency.
Low Maintenance: Precision manufacturing minimizes downtime, reducing lifetime operating costs.
Local Delivery: Machines are delivered directly to your facility in Abu Dhabi, Dubai, Sharjah, or anywhere in the UAE.
Expert Support: Backed by Machine Matcher’s global technical team and UAE-based commissioning engineers.
Custom roller tooling based on your exact profile
Choice of hydraulic or servo punching systems
Speed upgrades up to 30 m/min
Stackers or automatic conveyors
Multiple profile setups on a single line (optional)
All roll forming machines from Machine Matcher are backed by a 1-year warranty from dispatch and include ongoing support for maintenance, troubleshooting, and spare parts.
For the best quote, please send:
Profile drawings (PDF or CAD)
Gauge and material details
Any special features or requirements
Email us today at: [email protected]
Supplied exclusively by Machine Matcher – the trusted global source for roll forming equipment.
All machines are new, precision-engineered, and built to order.
