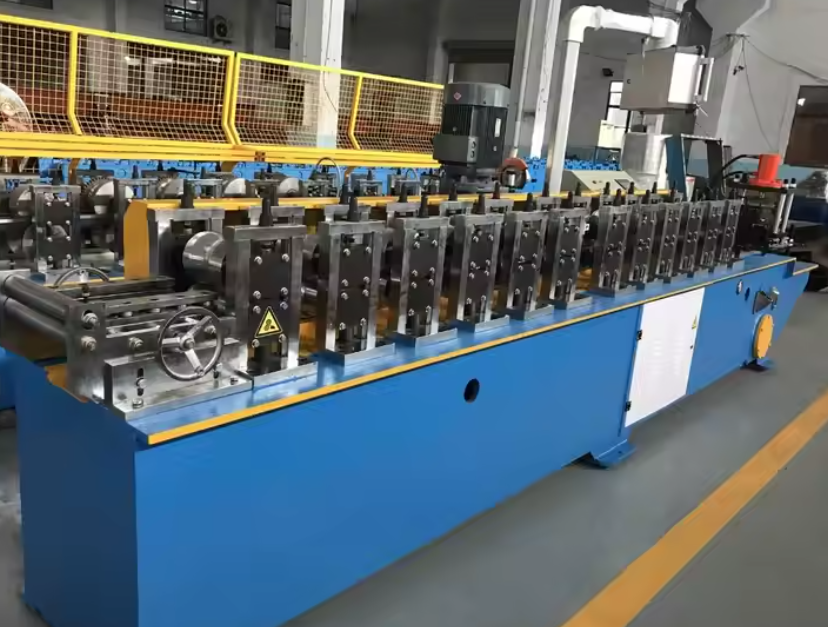

Venetian Blind Roll Forming Machine – Available in the UAE
The Venetian Blind Roll Forming Machine, available from Machine Matcher, is a precision-engineered, fully automated roll forming solution designed for manufacturing high-quality venetian blinds. Built for consistent performance, high-speed output, and long-term durability, this machine is ideal for operations in Abu Dhabi, Dubai, Sharjah, and across the United Arab Emirates.
Whether for commercial, industrial, or residential shading systems, this equipment delivers exceptional results tailored to each customer’s specific profile needs. With customizable tooling, advanced safety systems, and intelligent controls, this roll forming machine meets the highest standards of operational efficiency and quality.
Machine Type: Venetian Blind Roll Forming Machine
Production Speed: Up to 20 meters/minute
Material Thickness Range: 0.18 mm – 0.35 mm
Material Width Range: 50 mm – 100 mm
Material Types: Pre-painted aluminum, mild steel, galvanized steel
Material Yield Strength: ≤ 250 MPa (36 ksi)
Roller Material: High-grade GCr15 steel
Roller Surface Treatment: Hard chrome plated for corrosion resistance and longevity
Number of Forming Stations: 12–18 stations (based on profile design)
Roller Shaft Diameter: 40 mm
Shaft Material: Solid high-tensile steel
Main Drive Type: Chain drive or gear transmission (as per customer spec)
Power (UAE): 380V, 3-phase, 50Hz
Motor Power: 5.5 kW
Cutting Method: Hydraulic cutting synchronized with line speed
Blade Material: SKD11, heat treated
Control Type: PLC-based (touch screen HMI for easy operation)
Operating Mode: Fully automatic with manual override option
De-coiling System: Manual or automatic decoiler, optional loading car
Punching/Notching System: Optional hydraulic system for end slots or custom holes
Machine Frame: Welded steel structure, stress-relieved
Thickness of Frame Steel: 18–20 mm
Profile Shape: Concave, convex, or flat slat shapes
Profile Width and Depth: Width: 50–100 mm; Depth: up to 15 mm
Length Tolerance: ±0.5 mm
Safety Features:
Protective Covers/Guards: Yes
Emergency Stop Button: Yes
Overload Protection System: Included
At Machine Matcher, every Venetian Blind Roll Forming Machine is tailored to match your production profile, slat dimensions, and capacity requirements. Available options include:
Servo flying cut-off system
Slot punching or end notching systems
Auto-stacker or slat collection trays
Different roller coatings (rubber-lined, anodized)
Advanced sensor-based feedback systems
Remote monitoring and diagnostics
The Venetian Blind Roll Forming Machine supports several industries in the UAE and beyond, including:
Window Coverings & Shading Solutions
Used to mass-produce venetian blinds for commercial buildings, hotels, offices, and residential complexes.
Interior & Architectural Finishing
Ensures rapid production of decorative and functional blind systems, particularly in large-scale developments in Dubai and Abu Dhabi.
OEM Manufacturers
Offers integrated component supply for curtain wall and blind system assemblers in the Middle East region.
Residential window blind production for real estate developers
Commercial shading system manufacturing for office complexes
Custom profile manufacturing for interior design contractors
Localized production for building component suppliers
✅ Precision-Engineered Components – Achieve consistent, burr-free slats for smooth stacking and operation.
✅ Flexible & Customizable Tooling – Easily adapt profiles, widths, and notching layouts to suit evolving demands.
✅ Energy-Efficient Operation – Save on operational costs with high-efficiency motors and minimal waste generation.
✅ Remote Installation Support – Benefit from real-time video guidance or request on-site support from our experienced team.
✅ High Productivity – Fast line speed and integrated cutting reduce manual handling and increase output per shift.
✅ Expert Support by Machine Matcher – We ensure unmatched after-sales service, setup guidance, and spare part availability.
Q: Can the machine be customized for our profile?
A: Yes, Machine Matcher can fully customize roller tooling and the profile dimensions to meet your exact design requirements.
Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available on request.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days. Shipping time depends on your port of entry in the UAE.
Q: What type of material is normally used with this machine?
A: The most common materials include pre-painted aluminum (typically 0.23–0.27 mm), mild steel, and galvanized steel. Standard material strength is around 30–36 ksi.
Q: What affects the final price?
A: Price varies based on the inclusion of optional extras such as notching units, decoilers, or servo systems. Custom tooling and profile complexity can also impact cost.
Starting Price Range: From USD 35,000 (for a standard configuration)
Note: Pricing depends on customization and optional systems. Contact Machine Matcher for a tailored quotation.
All machines are new and custom-built based on the customer’s specific profile and production needs. Machine Matcher can deliver directly to Abu Dhabi, Dubai, Sharjah, and all major cities across the United Arab Emirates. Machines are packaged securely for sea freight and comply with international shipping standards.
Every Venetian Blind Roll Forming Machine supplied by Machine Matcher is covered by:
One-year manufacturer’s warranty from dispatch date
Full technical support, including remote diagnostics
Optional annual maintenance agreements
If you have profile drawings or additional details that would help us provide the best quote for your Venetian Blind Roll Forming Machine, please email them to:
[email protected]
All machines listed are exclusively available through Machine Matcher. We do not resell or reference other suppliers. Machine Matcher is your expert partner for roll forming equipment across the UAE and globally.
