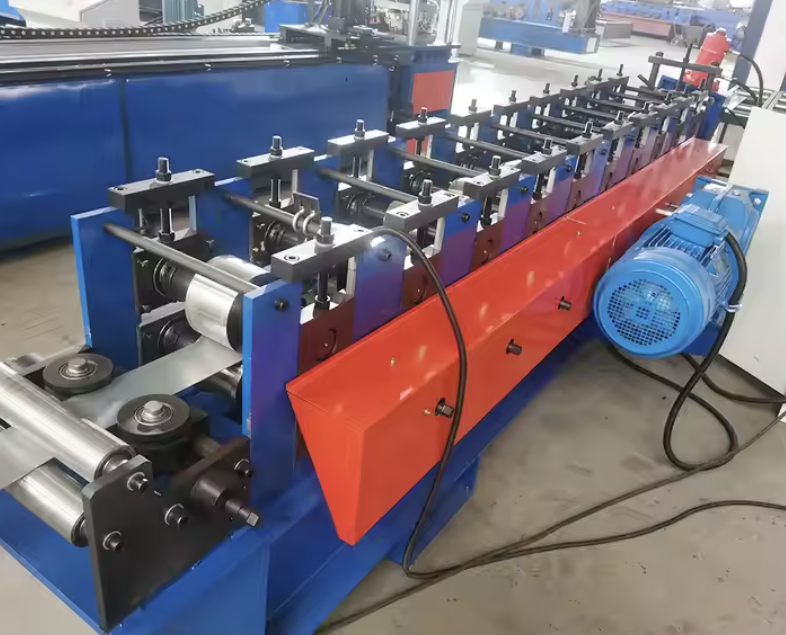

The Wall Angle Roll Forming Machine is a precision-engineered solution designed to manufacture high-quality wall angle profiles used in interior construction, particularly in suspended ceiling framing systems. This machine is ideal for companies operating in the building materials, construction, and interior finishing industries across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah.
Built to handle various material specifications with high efficiency, this machine ensures superior profile consistency, fast production speeds, and easy operation—all essential for large-scale construction and fit-out projects in the UAE’s rapidly growing commercial and residential building sectors.
All our Wall Angle Roll Forming Machines are new, custom-built to match customer profile drawings and material needs, and delivered directly to your location in the UAE through our trusted manufacturing partners.
Machine Type: Wall Angle Roll Forming Machine
Production Speed: 20–40 meters per minute
Material Thickness Range: 0.3 mm – 0.8 mm
Material Width Range: Up to 150 mm
Material Types: Galvanized Steel (GI), Cold Rolled Steel (CRS), Aluminum
Material Yield Strength: Up to 550 MPa
Roller Material: High-Grade 45# Steel
Roller Surface Treatment: Hard Chrome Coating
Number of Forming Stations: 8–12 stations (depending on profile design)
Roller Shaft Diameter: 40 mm
Shaft Material: High-Tensile 45# Steel
Main Drive Type: Gearbox Transmission
Power for UAE location: 380V, 50Hz, 3-phase (customizable if needed)
Motor Power: 4 kW

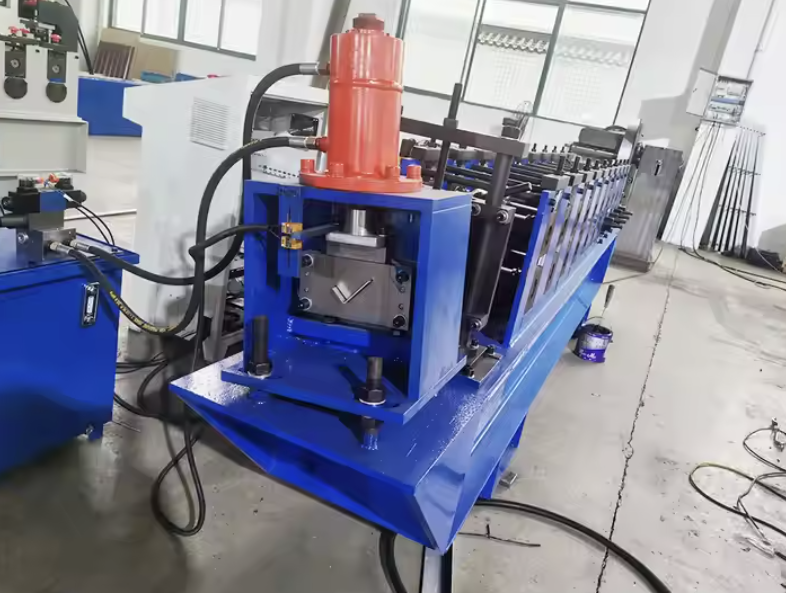

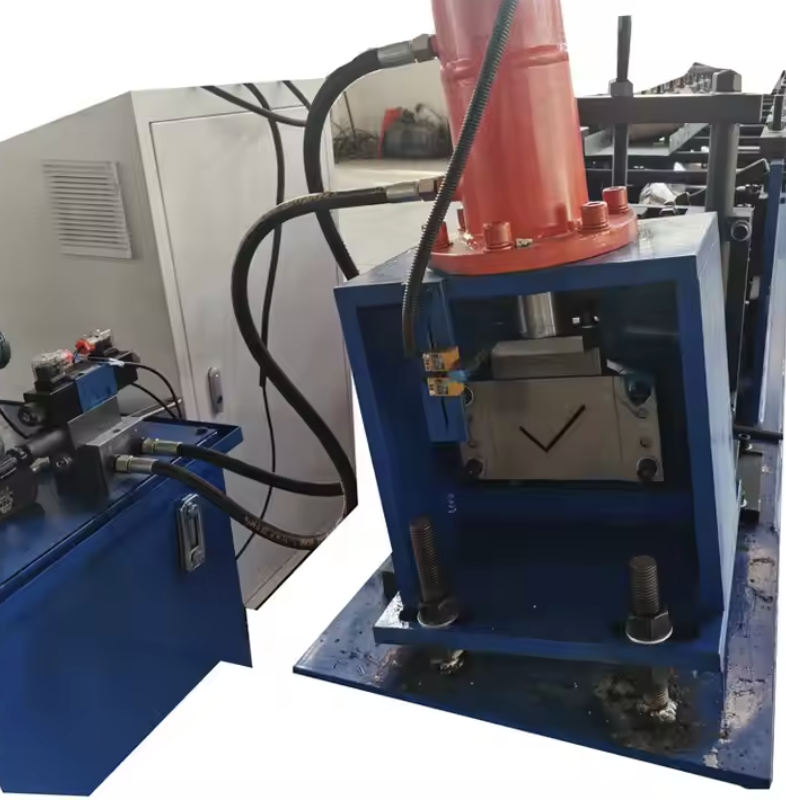

Cutting Method: Hydraulic Cutting (after forming)
Blade Material: Cr12MoV Heat-Treated Steel
Control Type: PLC Control System (Siemens or equivalent)
Operating Mode: Automatic Continuous Operation
De-coiling System: Manual Decoiler (optional hydraulic decoiler available)
Punching/Notching System: Optional - Can include automatic punching unit as per profile requirement
Machine Frame: Welded Steel Frame, heavy-duty
Thickness of Frame Steel: 18–20 mm
Profile Shape: Standard Wall Angle (L-Shape)
Profile Width and Depth: Customizable to project needs (commonly 20–30 mm width, 20–30 mm depth)
Length Tolerance: ± 1.0 mm
Safety Features:
Full Protective Covers/Guards
Emergency Stop Button
Overload Protection System
This Wall Angle Roll Forming Machine is essential for producing components used in:
Ceiling Suspension Systems (T-grid ceiling frameworks)
Office Building Fit-outs
Residential and Commercial Interior Finishing
Retail and Hospitality Developments
Large-Scale Infrastructure Projects
As the UAE construction market continues booming, especially with projects like Dubai Expo-related developments, Abu Dhabi’s real estate expansion, and Sharjah’s growing commercial hubs, demand for reliable ceiling framing components is at an all-time high.
We proudly offer delivery of new, made-to-order Wall Angle Roll Forming Machines anywhere in the UAE—including Abu Dhabi, Dubai, Sharjah, Ajman, Fujairah, Ras Al Khaimah, and Umm Al Quwain.
Each machine includes:
One Year Warranty from Dispatch Date
Ongoing Maintenance and Repair Support
Custom engineering to your required wall angle profile sizes
Professional technical support before and after commissioning
Pricing is customized based on:
Profile requirements
Material types
Optional extras like punching systems, automatic stackers, and hydraulic decoilers
Contact us for your tailored quote.
If you have profile drawings, material specifications, or special requirements, please send them to [email protected] for the fastest and most accurate quotation.
Q: Can this machine handle aluminum profiles for lightweight ceiling systems?
A: Yes. This machine can form profiles from galvanized steel, cold-rolled steel, and aluminum materials.
Q: Is the machine delivered fully assembled?
A: The machine is delivered mostly assembled; final setup, commissioning, and operator training can be arranged upon request.
Q: Can you match an exact wall angle profile I am currently using?
A: Absolutely. Please send your profile drawing (PDF, DWG, or even a hand sketch) to [email protected] and we will customize the machine accordingly.
Q: What is the typical delivery time for a custom Wall Angle Roll Forming Machine to the UAE?
A: Generally, delivery is within 8–12 weeks after deposit confirmation, depending on customization.
Q: Are optional hydraulic decoilers or automatic stackers available?
A: Yes. We offer optional hydraulic decoilers, automatic punching units, automatic stacking systems, and coil cars.
Q: What kind of maintenance support is offered in the UAE?
A: We provide durable maintenance and repair support both remotely and with site visits when needed. Spare parts are readily available.
Q: Is the machine compatible with UAE power standards?
A: Yes, it is built for 380V, 50Hz, 3-phase, which is standard in the UAE.
