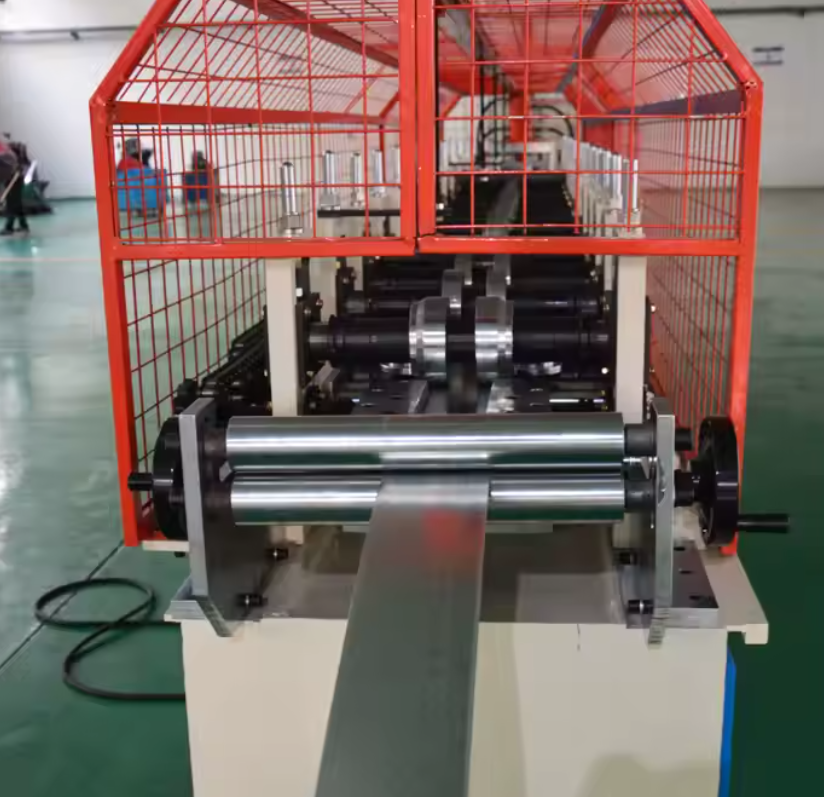

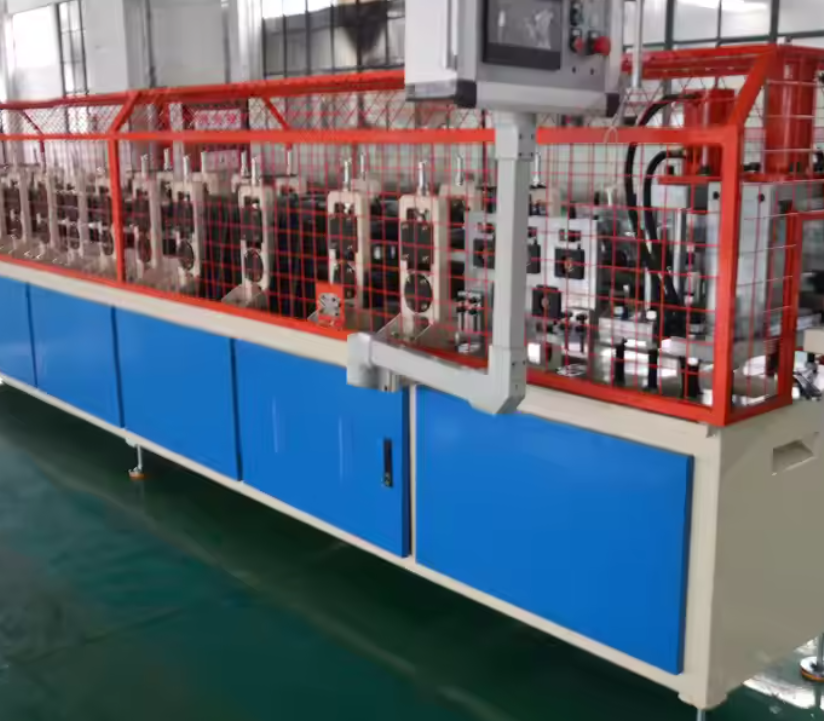

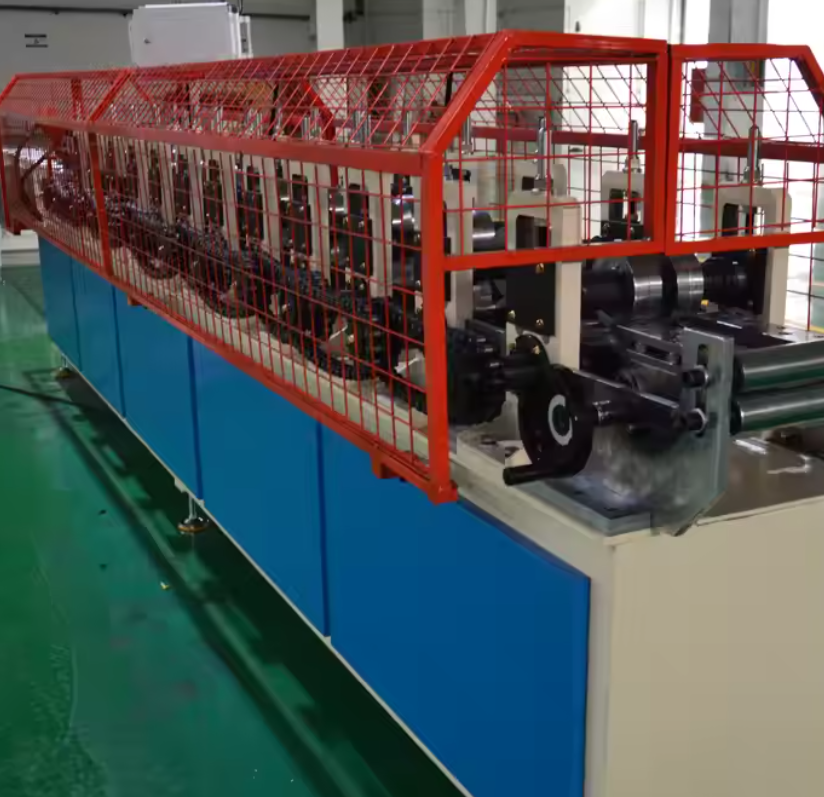

Wall Furring Roll Forming Machine – Supplied by Machine Matcher | Location: United Arab Emirates
Machine Matcher proudly supplies custom-built Wall Furring Roll Forming Machines for customers across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. Each machine is designed to meet specific customer profile requirements with precision engineering, robust performance, and advanced automation.
These machines are ideal for manufacturing wall furring channels, which are widely used in drywall and partition systems across commercial, industrial, and residential construction. Built with durability, speed, and flexibility in mind, Machine Matcher ensures that every unit delivered is optimized for long-term productivity and low maintenance.
Type: Wall Furring Roll Forming Machine
Applications: Used to manufacture precise metal furring channels for wall structures and drywall systems.
Output: Consistently shaped furring profiles with high dimensional accuracy and smooth surface finishes.
Location Served: Available across the UAE including Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al-Quwain.
Construction & Architecture:
Used in framing walls and ceilings for commercial buildings, housing, and interior partitions.
Drywall & Interior Finishing:
Forms the base structure for gypsum boards and other cladding materials.
Prefab Housing and Modular Units:
Enables rapid and lightweight structure assembly for modular projects.
Facility Management & Renovation:
Used in retrofitting and refurbishing old buildings with modern drywall systems.
Examples of Utilization:
Contractors in Dubai using these machines to produce high volumes of drywall framing systems for residential towers.
Industrial parks in Sharjah deploying machines for modular unit production.
Interior fit-out companies in Abu Dhabi benefiting from fast-turnaround on custom profiles.
Machine Type: Wall Furring Roll Forming Machine
Production Speed: 15–25 meters/min (adjustable)
Material Thickness Range: 0.4 mm – 0.8 mm
Material Width Range: 100 mm – 200 mm
Material Types: Galvanized Steel, Cold Rolled Steel, Stainless Steel
Material Yield Strength: Up to 550 MPa (80 ksi)
Roller Material: GCr15 (high-quality bearing steel)
Roller Surface Treatment: Hard chrome plated for anti-corrosion
Number of Forming Stations: 12–18 (customizable based on profile)
Roller Shaft Diameter: 50 mm
Shaft Material: 45# Steel, quenched and tempered
Main Drive Type: Gearbox drive
Power: 380V / 50Hz / 3 Phase (customizable)
Motor Power: 5.5 kW – 7.5 kW depending on configuration
Cutting Method: Hydraulic cutting with stop or flying cut options
Blade Material: Cr12Mov, heat-treated
Control Type: PLC control system with HMI touch screen
Operating Mode: Fully automatic with manual override
De-coiling System: Manual or hydraulic decoiler (3–5 tons capacity)
Punching/Notching System: Optional hydraulic punching system
Machine Frame: Welded steel structure, stress-relieved
Thickness of Frame Steel: 16 mm – 20 mm
Profile Shape: Furring channel profile (can be customized)
Profile Width and Depth: Typically 35–50 mm wide, 18–25 mm deep
Length Tolerance: ±1.0 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Custom-Built in Precision: Machines are tailored to your exact furring profile drawing and output requirements.
High Production Efficiency: Achieve up to 25 meters per minute with minimal operator intervention.
Durability: All forming rollers are chrome-coated and hardened for long-lasting performance, especially important in UAE’s climate.
Flexibility: From material input widths to number of stations, everything is adaptable to your specific needs.
Reliable Operation: Our robust gear-driven system ensures stable, long-term operation even in high-duty cycles.
Reduced Downtime: Easy maintenance and durable components keep production running smoothly.
Remote & On-Site Support: Get setup help via video or schedule installation within the UAE.
These features translate into reduced downtime, faster ROI, and better overall production consistency compared to imported off-the-shelf models.
Profile dimensions
Number of stations
Material input width and thickness
Punching & notching features
Motor and power configuration
Automatic stacking or shearing options
PLC brand preferences (Siemens, Delta, etc.)
If you have specific profile drawings or custom requests, email them to [email protected] for a personalized quote and machine proposal.
Q: Can the machine be customized for our wall furring profile?
A: Yes, all machines are custom-designed based on your profile drawings and technical requirements.
Q: What material is typically used with this machine?
A: Most customers use galvanized steel or cold-rolled steel, ranging from 0.4 mm to 0.8 mm in thickness with yield strengths up to 80 ksi (550 MPa).
Q: What is the lead time for manufacturing and shipping to the UAE?
A: Standard production takes 30–60 days. Shipping time depends on port location and delivery method.
Q: Is remote installation support available?
A: Yes, we provide full remote video guidance and on-site installation in the UAE upon request.
Q: Is the machine covered by warranty?
A: Yes, all machines come with a 1-year warranty from dispatch. We also provide full maintenance and technical support.
Prices start from: USD $34,000
What affects the final price?
Profile customization
Number of forming stations
Power and automation options
Additional systems (punching, notching, stackers, etc.)
All machines are built new and customized, shipped directly to any city or region in the UAE. Machine Matcher handles the full process from consultation to commissioning.
All Machines Supplied by: Machine Matcher
Delivery Region: UAE (Abu Dhabi, Dubai, Sharjah, and all Emirates)
Installation: Video support or on-site setup on request
After-Sales: Warranty, spare parts, remote diagnosis, maintenance guidance
