To express an interest in this machine please submit the form below.

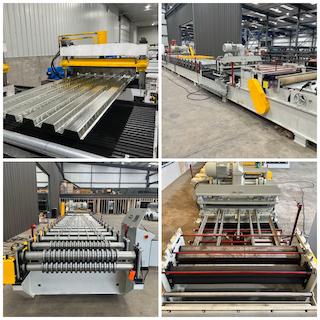

The 1.5″ Type B Roof Deck Roll Forming Machine is a specialized piece of equipment designed for manufacturing Type B metal roof decking, a commonly used structural component in commercial and industrial roofing applications in the United States. This high-performance machine is engineered for efficiency, precision, and durability, meeting the strict standards of the American construction industry.
With a heavy-duty 20-ton build, 28 forming stations, and hydraulic shear cutting, this roll forming machine ensures seamless production of high-quality Type B deck panels. Designed for 18 to 24 gauge steel, it operates on 480V, 3-phase, 60Hz power—ideal for industrial environments across the USA.
The 1.5″ Type B Roof Deck is a popular profile used in the construction industry for roofing applications due to its strength, spanning capabilities, and ease of installation. The roll forming machine that produces these panels is built with precision engineering and heavy-duty construction to handle continuous, high-volume production.
The machine’s 28 forming stations ensure a gradual, stress-free formation of the metal deck profile, reducing material distortion and ensuring high-quality finished products. The chain drive or gearbox transmission system offers reliability and long-term performance, while the hydraulic shear cutting system guarantees clean and precise cuts with minimal material waste.
With an 85ft machine footprint, this unit requires significant floor space but delivers exceptional production capacity, making it a valuable investment for steel fabricators, construction companies, and metal deck suppliers across the United States.
| Specification | Details |
|---|---|
| Material Thickness | 18ga - 24ga |
| Machine Weight | 20 tons |
| Machine Footprint | 85 feet |
| Main Power Supply | 480V, 3-phase, 60Hz |
| Motor Power | 32 HP |
| Transmission | Chain Drive / Gearbox |
| Forming Stations | 28 |
| Cutting Type | Hydraulic Shear |
| Safety Covers | Optional |
| Emergency Stops | Yes |
This machine is designed for mass production of Type B roof deck panels, which are widely used in:
✔ Commercial buildings
✔ Industrial facilities
✔ Warehouses
✔ Stadiums and arenas
✔ Shopping malls
✔ High-rise buildings
The Type B Roof Deck provides a strong, lightweight, and cost-effective solution for roofing systems, offering superior load-bearing capacity and compatibility with various insulation materials.
Installing a 1.5″ Type B Roof Deck Roll Forming Machine requires careful planning and setup to ensure optimal performance. The installation process includes:
✔ Machine placement: Due to its 85ft footprint, the machine requires a large factory floor space with proper alignment.
✔ Power connection: Operates on 480V, 3-phase, 60Hz electrical power, ensuring compatibility with USA industrial power systems.
✔ Hydraulic system setup: The hydraulic cutting system needs proper oil levels and pressure settings for efficient operation.
✔ Safety checks: Ensure emergency stops and safety covers are properly installed and tested.
Proper maintenance ensures long-term reliability and efficiency of the machine. Some key maintenance practices include:
🔧 Lubrication of moving parts to reduce wear and tear.
🔧 Inspecting and tightening chains & gearbox components for smooth transmission.
🔧 Cleaning rollers and guiding systems to prevent material buildup.
🔧 Checking hydraulic fluid levels to maintain cutting efficiency.
🔧 Regularly testing emergency stops and safety systems for compliance with safety regulations.
✅ The machine is designed to work with 18-gauge to 24-gauge steel.
✅ It requires 480V, 3-phase, 60Hz, which is the standard industrial power supply in the United States.
✅ This machine is equipped with a hydraulic shear cutting system, providing clean and precise cuts with minimal material waste.
✅ Yes, it includes Emergency Stops (E-Stops) and has optional safety covers for additional protection.
✅ The total machine length is 85 feet, so it requires a large manufacturing space for proper operation.
✅ This roll forming machine has 28 forming stations, ensuring a smooth and precise formation of the 1.5″ Type B Roof Deck profile.
✅ Type B Roof Decking is widely used in commercial and industrial construction, including warehouses, stadiums, malls, and high-rise buildings.
✅ It uses either a chain drive or gearbox system, depending on the configuration.
✅ The total weight of the machine is 20 tons, making it a heavy-duty, industrial-grade roll forming system.
✅ High-speed production, precision cutting, low maintenance, and compliance with US industry standards.
The 1.5" Type B Roof Deck Roll Forming Machine is a powerful and efficient solution for manufacturers, fabricators, and contractors in the United States who require high-quality metal roof decking panels. With its robust design, high-speed operation, and precise cutting system, this machine provides excellent value for large-scale production facilities.
For companies looking to expand their roof deck production in the USA market, investing in this roll forming machine ensures maximum efficiency, high-quality output, and compliance with American construction standards.
For more information, pricing, and availability, contact us today!
