C channel roll forming machine North Carolina

C Channel roll forming machines are highly efficient and versatile tools designed for manufacturing structural and support components used across various industries, including construction, automotive, and storage systems. These machines transform metal coils into precise, uniform C-channel profiles through a continuous bending process. Their durability, speed, and precision make them indispensable for North Carolina businesses looking to optimize production while maintaining high-quality standards.

Machine Description

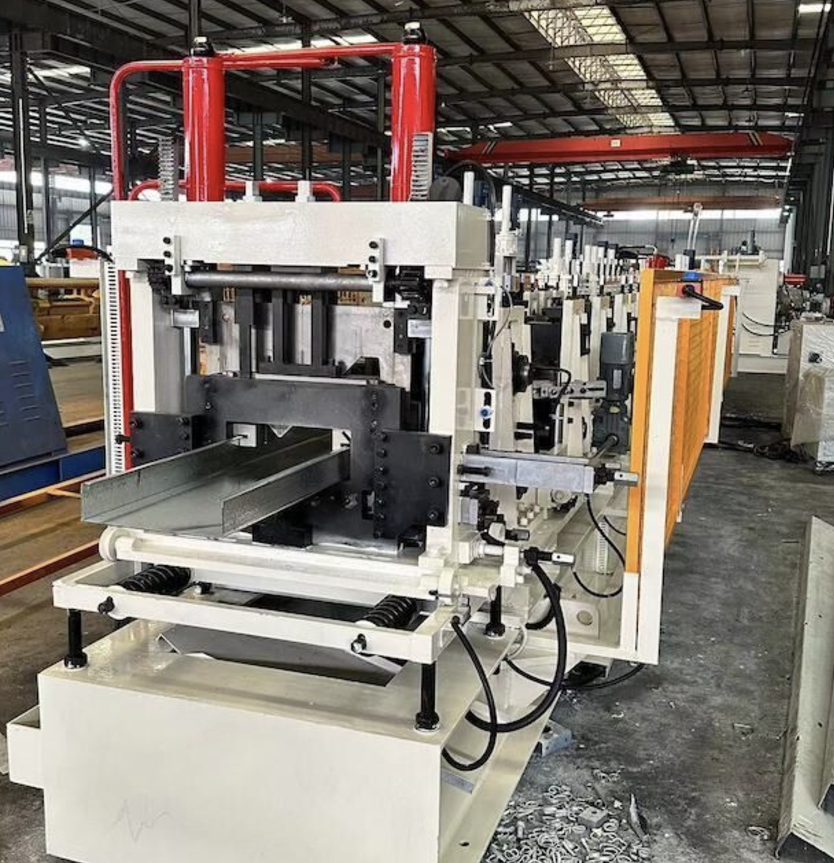

A C Channel roll forming machine is a heavy-duty system engineered for producing C-shaped metal profiles. It starts with feeding metal sheets or coils into a series of rollers, which sequentially bend the material into the desired profile. The process is fully automated, minimizing manual intervention and ensuring consistent output.

Key components of the machine include:

• Decoiler: Holds and feeds the metal coil into the machine.
• Rollers: Multiple rollers progressively shape the metal into a C-channel profile.
• Hydraulic Cutting System: Precisely cuts the profile to the required length without distorting the shape.
• PLC Control System: Enables automation and customization of production parameters such as length, size, and speed.
• Exit Table: Facilitates the collection of finished products.

Specifications

1. Roller Materials

• Material: High-grade chromium steel.
• Features: Hard-coated for wear resistance, ensuring durability and long life.

2. Frame Size

• Frame Type: Welded steel frame.
• Thickness: Robust enough to withstand heavy-duty operation.

3. Motors

• Main Drive Motor: Variable frequency drive motor for speed adjustments.
• Power: 7.5–15 kW, depending on the machine size and requirements.

4. PLC System

• Control Type: Advanced PLC with touch-screen interface.
• Features: User-friendly interface for programming length, quantity, and size.

5. Hydraulic Cutting System

• Cutting Material: High-strength alloy steel.
• Accuracy: ±0.5 mm tolerance for length cutting.

6. Machine Speed

• Speed: Up to 30–40 m/min (customizable based on requirements).

7. Safety Features

• Safety guards and emergency stop buttons for operator protection.

8. Dimensions

• Machine Length: 8–12 meters.
• Machine Width: 1.5–2 meters.
• Machine Height: 1.8–2 meters.

9. Supported Profile Sizes

• Width: 50 mm to 300 mm.
• Thickness: 1.5 mm to 4 mm.
• Length: Customizable.

Target Market: North Carolina

Why C Channel Roll Forming Machines in North Carolina?

1. Growing Construction Industry: North Carolina is experiencing a surge in residential, commercial, and industrial construction projects. C-channels are essential for framing, roofing, and structural support.
2. Automotive and Transportation: The state's expanding automotive industry can utilize C-channels in manufacturing vehicle components.
3. Steel Fabrication: North Carolina’s steel fabrication businesses require high-precision profiles for storage racks, shelving systems, and machinery supports.

Customization for North Carolina Businesses

• Power Supply Compatibility: Machines designed for 60 Hz power supply, matching the local grid.
• Profiles for Local Needs: Customizable C-channel profiles for construction, HVAC systems, and solar mounting structures.
• Service and Support: Local service centers and rapid delivery of spare parts ensure minimal downtime.

Question and Answer Section

Q1: What materials can the C Channel roll forming machine process?

A: The machine can handle various metals, including galvanized steel, mild steel, aluminum, and stainless steel, with thicknesses ranging from 1.5 mm to 4 mm.

Q2: Is the machine customizable for different profile sizes?

A: Yes, the machine can be adjusted to produce different widths, heights, and thicknesses of C-channels, meeting specific project requirements.

Q3: What maintenance does the machine require?

A: Regular lubrication of rollers and moving parts, periodic inspection of the hydraulic system, and cleaning of the PLC system ensure optimal performance.

Q4: How long does installation take?

A: Installation typically takes 2–3 days, depending on the machine's complexity and site conditions.

Q5: Is operator training provided?

A: Yes, training is available to help operators efficiently use the PLC system and maintain the machine.

Q6: Can the machine integrate with existing production lines?

A: Absolutely! The machine can be integrated into existing lines for seamless production.

Conclusion

Investing in a C Channel roll forming machine is a smart decision for North Carolina businesses in construction, automotive, and steel fabrication industries. With its precision, efficiency, and customization capabilities, this machine offers excellent ROI and streamlines manufacturing processes. By targeting local needs and ensuring compliance with U.S. power standards, this machine is an invaluable asset for the state’s thriving industrial landscape.
