hydraulic decoiler with drag rollers
working type: hydraulic type
with drag rollers help to feed strips into punching machine
inner diameter: 450-550mm
capacity: 3 tons
advantage: use hydraulic decoiler to avoid feeding strips tolerance, ensure feeding accurate
Punching machine, with servo feeding system
punching machine brand: Yangli brand, China famouse
servo feeding system: ensure feeding automaticly when punching, also ensure the feeding accuracy

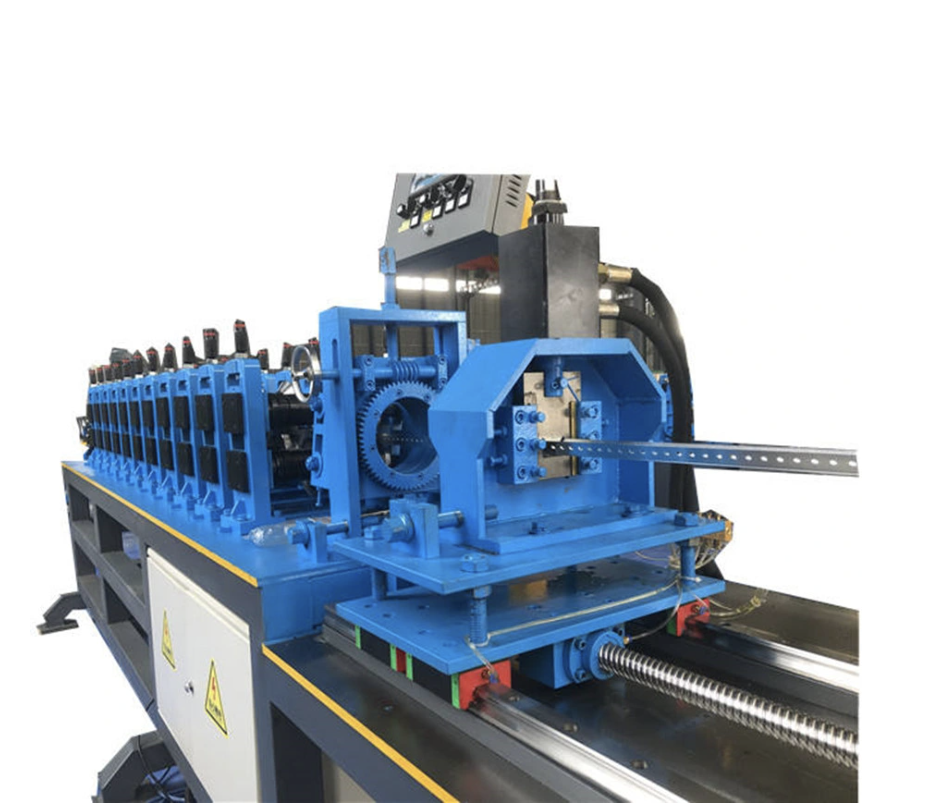

Main roll forming machine
Roller station: 11 stations
Roller material: 45# steel withquenched treatment and hard chroming
Shaft diameter: 50mm,solid
Shaft material: bearing steel with tempering treatment
Motor power:7.5kw
Speed: 24m/min
Transmission: By chains

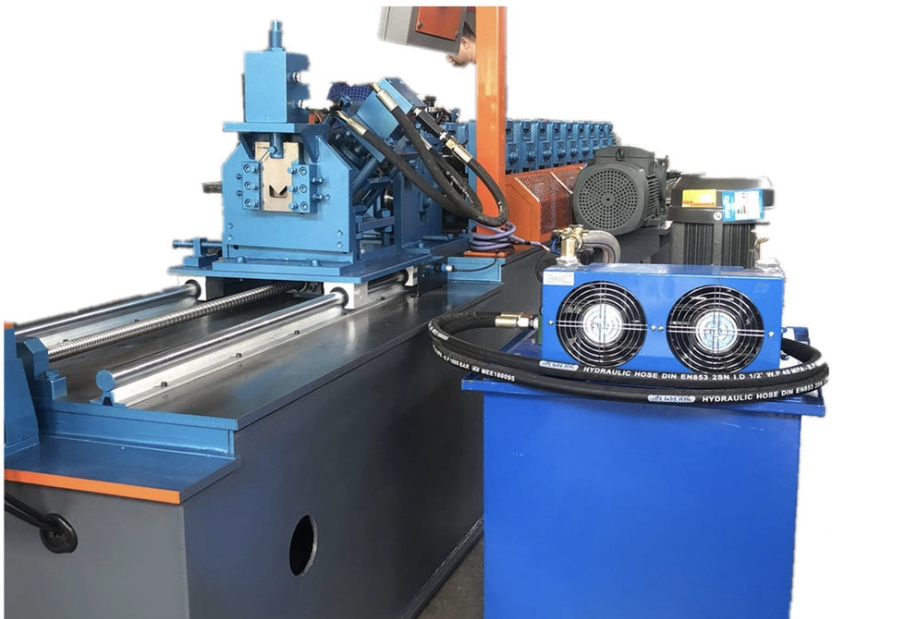

servo track hydraulic cutting
servo motor: 2.3kw
working type: hydraulic cutting, no stop when cutting
PLC control system
Frequency brand: Delta brand (original)PLC brand:Delta brand (original)Low pressure electric part: famouse brandEncoder: Omron brandScreen type:Touch screen,also have bottons on the panelCut command:YesProfile length set-up:YesBacth quantity program:Yes
