Corrugated metal deck concrete floor roll forming machine in the USA

Corrugated metal deck concrete floor roll forming machines are specialized equipment used to manufacture steel decking panels that serve as a structural platform for poured concrete floors in commercial and industrial buildings. These machines ensure precision, durability, and high production speed, making them indispensable in the construction industry.

Machine Description

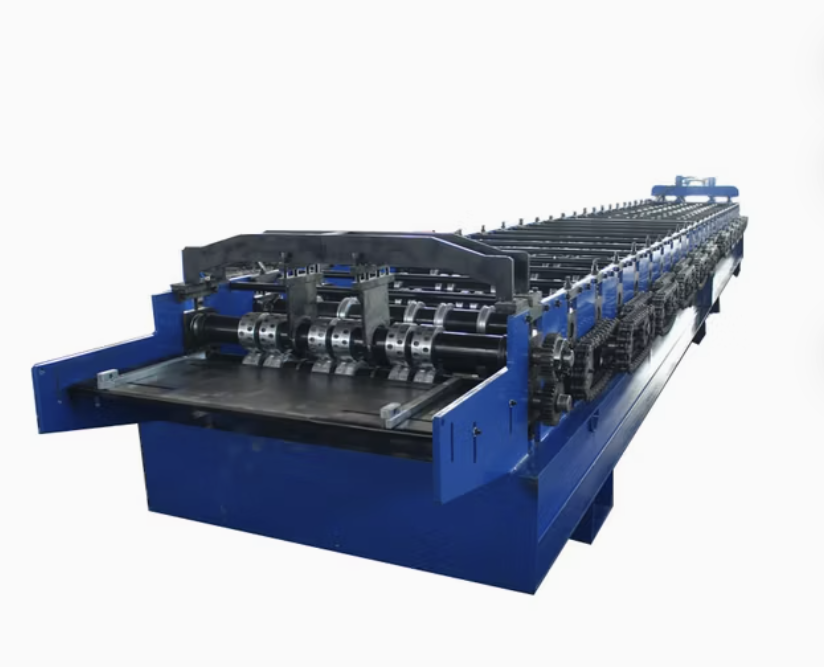

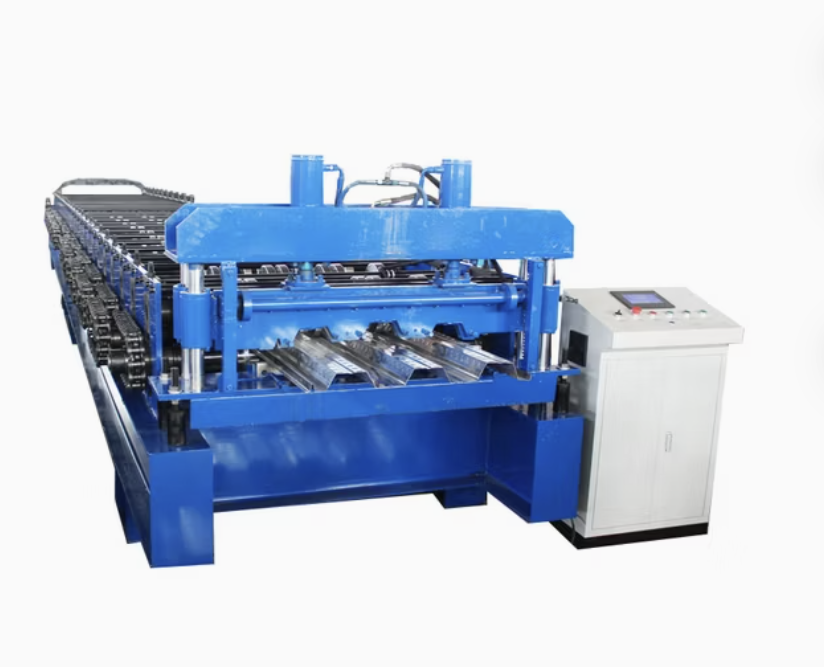

The corrugated metal deck roll forming machine produces metal deck panels with a corrugated profile that adds rigidity and strength to the flooring system. These panels are widely used in construction projects for their ability to support heavy loads and reduce the quantity of concrete required, thus lowering costs.

The machine is fully automated and equipped with advanced features to ensure high-quality outputs. Its PLC control system offers user-friendly operation, while the hydraulic cutting system ensures precision and smooth edges. Designed for heavy-duty applications, these machines are robust, reliable, and capable of operating continuously in demanding environments.

Specifications

• Roller Materials: High-grade chromium-coated steel to ensure durability and prevent wear.
• Punching and Notching: Servo-driven hydraulic punching for precise openings and cutouts.
• Cutting System: Hydraulic cutting system with hardened steel blades for clean cuts.
• Frame Size: Heavy-duty steel frame, customizable according to production needs.
• Drive System: Servo motors for accurate feeding and forming.
• Control System: PLC (Programmable Logic Controller) with a touchscreen interface for easy operation.
• Machine Speed: Up to 25 meters per minute, depending on the profile and material thickness.
• Material Compatibility: Galvanized steel, stainless steel, and aluminum.
• Material Thickness: 0.8 mm to 2.5 mm (customizable for specific requirements).
• Profile Dimensions: Customizable corrugated patterns with varying heights, widths, and pitch.
• Safety Features: Protective guards and emergency stop buttons to ensure operator safety.

Optional Add-Ons

1. Automatic Stacker: Streamlines panel stacking for higher efficiency.
2. Remote PLC System: Enables machine monitoring and troubleshooting remotely.
3. Coil Car Tippers: Facilitates easy loading and unloading of steel coils.
4. Uncoiler and Recoiler Systems: For seamless feeding of raw materials into the machine.

Question and Answer Section

Q1: What is the purpose of corrugated metal deck panels?

A1: Corrugated metal deck panels are used as a structural platform for concrete floors in multi-story buildings. They provide strength, reduce the amount of concrete required, and act as a working platform during construction.

Q2: How does the machine ensure accuracy in panel dimensions?

A2: The machine uses a servo-driven feeding system and a PLC-controlled hydraulic cutting system to maintain precise measurements and clean edges.

Q3: Can this machine handle different profiles?

A3: Yes, the machine is customizable to produce various corrugated profiles based on construction requirements.

Q4: What materials are compatible with this machine?

A4: The machine can process galvanized steel, stainless steel, and aluminum in thicknesses ranging from 0.8 mm to 2.5 mm.

Q5: Is operator training required to use this machine?

A5: Basic operator training is recommended to ensure the efficient and safe operation of the machine. The user-friendly PLC system simplifies the learning process.

Q6: What maintenance is required for the machine?

A6: Routine maintenance includes lubrication of moving parts, regular checks of the hydraulic system, cleaning the rollers, and inspecting the PLC system for updates or errors.

Q7: Can the machine be used for large-scale production?

A7: Yes, the machine is designed for industrial-scale operations, with high-speed production and minimal downtime.

Q8: How can I ensure the machine complies with USA safety standards?

A8: The machine is equipped with safety guards, emergency stop features, and complies with OSHA regulations for industrial machinery. Always verify certification during purchase.
