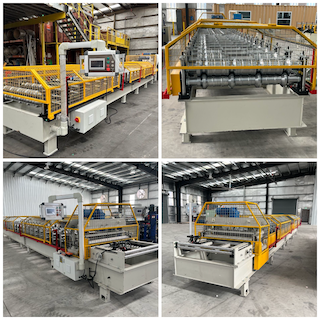

The corrugated metal panel roll forming machine is a specialized piece of equipment designed to produce high-quality corrugated panels for roofing, siding, and other structural applications. These machines are widely used in California due to the region’s high demand for durable and versatile building materials for residential, commercial, and agricultural structures. This machine ensures efficiency, precision, and durability, making it ideal for large-scale projects.

California’s construction market demands equipment that complies with local safety standards, meets high productivity requirements, and adapts to various building codes. This roll forming machine offers all these features while maintaining eco-friendly operation and minimal material wastage.

Specifications

• Dimensions: 40 feet long, 5 feet wide
• Material Gauge Range: Supports 24-gauge to 29-gauge steel
• Profile Features: Precise corrugated profiles with consistent wave patterns
• Pre-Shear Functionality: Allows cutting to precise lengths before forming
• Computer Batching System: Automated batching for enhanced productivity and accuracy
• Number of Stands: 18 heavy-duty stands for uniform profile shaping
• Rollers: Heavy-duty rollers designed for long-lasting performance and minimal wear
• Motor: Heavy-duty motor ensuring robust performance under continuous operation
• Drive System: Chain drive for reliable and consistent power transmission
• Safety Features: Includes emergency stops (E-stops) and safety covers to protect operators
• Measurement Output: Digital readout in inches for precise length tracking
• Uncoiler Compatibility: Works with a 10,000 lb uncoiler equipped with a coil car for seamless material feeding

Profile Details

The corrugated metal panel produced by this machine is characterized by its wavy pattern, which enhances strength and durability.

Profile Specifications:

• Width: Standard corrugated widths suitable for roofing and siding applications
• Material Gauge: Supports 24g to 29g, making it versatile for lightweight to moderately heavy-duty applications
• Applications: Roofing, siding, fencing, and architectural cladding
• Material Compatibility: Galvanized steel, galvalume, and pre-painted steel

Features and Benefits for California Market

1. Weather Resistance: The corrugated panels are ideal for California's diverse climate, offering durability against sun, rain, and coastal air.
2. Energy Efficiency: Panels are compatible with cool roofing technology to reduce energy consumption.
3. Earthquake Resistance: Lightweight yet durable panels are suitable for seismic zones.
4. Safety and Compliance: Meets stringent safety and environmental regulations in California.

Setup and Installation

The machine is delivered fully assembled and requires minimal setup. A trained technician will assist with installation, operator training, and testing to ensure seamless integration into your production line.

Steps:

1. Positioning: Place the machine in a leveled, spacious area.
2. Power Connection: Connect to a power supply compliant with the machine’s specifications.
3. Material Loading: Use the 10,000 lb uncoiler with a coil car for smooth material feeding.
4. Calibration: Configure the pre-shear and computer batching system to desired settings.
5. Testing: Run a trial batch to ensure accuracy and smooth operation.

Maintenance Requirements

• Routine Inspections: Check rollers, chains, and motor for wear and tear.
• Lubrication: Regularly lubricate moving parts to prevent friction and overheating.
• Safety Systems: Test E-stops and safety covers periodically.
• Software Updates: Keep the computer batching system updated.

Frequently Asked Questions (FAQs)

Q: What types of materials can this machine process?
A: It processes galvanized steel, galvalume, and pre-painted steel in gauges ranging from 24g to 29g.

Q: How fast can this machine produce panels?
A: Production speed depends on material and settings but typically ranges from 30-50 feet per minute.

Q: Is this machine suitable for seismic regions like California?
A: Yes, the lightweight corrugated panels are ideal for earthquake-prone areas due to their strength and flexibility.

Q: Can the machine handle pre-painted steel without damaging the finish?
A: Yes, the heavy-duty rollers are designed to handle pre-painted materials without scratching or damaging the surface.

Q: What are the safety features of this machine?
A: It includes E-stops, safety covers, and chain guards to protect operators during operation.

Q: Can this machine integrate with other equipment?
A: Yes, it’s compatible with a 10,000 lb uncoiler and coil car, ensuring seamless material feeding.

This corrugated metal panel roll forming machine is an excellent investment for businesses in California looking to meet the growing demand for durable and eco-friendly construction materials. Its advanced features, reliable performance, and compliance with local standards make it a top choice for the region.
