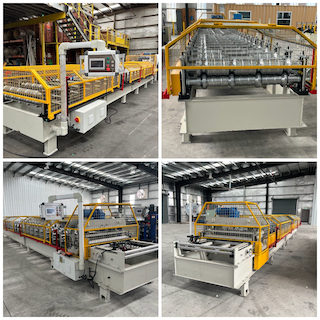

Corrugated Metal Panel roll forming machine Arizona, USA

The Corrugated Metal Panel Roll Forming Machine is a versatile and efficient solution designed for the Arizona market. With its robust specifications and adaptability, it caters to the growing demand for corrugated metal panels in the construction and roofing industries. These panels are widely used in residential, commercial, and agricultural projects for their durability, aesthetic appeal, and cost-effectiveness.

Machine Description

The machine is built to produce high-quality corrugated metal panels with precision and efficiency. Its heavy-duty components ensure long-term durability, even in high-volume production environments. Designed with Arizona’s diverse construction needs in mind, this machine meets the demands of builders and fabricators in the region, ensuring compliance with local standards and material preferences.

Key Specifications

• Dimensions:
  Machine size: 40 feet long x 5 feet wide
  Compact yet efficient, suitable for medium to large manufacturing facilities.
• Material Gauge:
  Processes materials ranging from 24-gauge to 29-gauge, perfect for roofing and cladding applications.
• Pre-Shear:
  Integrated pre-shear system allows clean and precise cutting before profiling, reducing waste and ensuring accuracy.
• Batching System:
  A computer batching system enables precise panel production, allowing users to pre-program lengths and quantities.
• Number of Stands:
  Equipped with 18 forming stands, the machine delivers precise corrugated profiles with consistent quality.
• Rollers:
  Heavy-duty rollers ensure smooth material feeding and long-lasting performance, even with thicker gauges.
• Motor:
  Powered by a heavy-duty motor, the machine maintains consistent speed and performance for high-volume production.
• Drive Mechanism:
  Uses a chain drive system for reliable operation and low maintenance requirements.
• Safety Features:
  Includes E-stops and safety covers to ensure operator safety during machine operation.
• Readout System:
  Features a readout in inches, enabling easy adjustments and precise control during production.
• Uncoiler Compatibility:
  Compatible with a 10,000 lb uncoiler with a coil car, providing smooth feeding of raw materials for continuous operation.

Related Profiles

This machine is specifically engineered for producing corrugated metal panels that are widely used in roofing, cladding, and fencing. The typical profile specifications include:

• Panel Dimensions: Customizable lengths with standard widths.
• Material Thickness: Between 24-gauge and 29-gauge, catering to different load and durability requirements.
• Applications: Roofing, wall cladding, agricultural buildings, and industrial structures.

Question and Answer Section

Q1: What is the production speed of this machine?
A1: The machine typically operates at a production speed of 30-50 feet per minute, depending on the material and profile requirements.

Q2: Can the machine handle other profiles besides corrugated panels?
A2: While this machine is designed for corrugated panels, additional tooling and modifications may enable it to produce other profiles. Please consult the manufacturer for customization options.

Q3: How is the machine maintained in Arizona’s climate?
A3: Routine maintenance includes lubrication of the chain drive, inspection of rollers and stands, and ensuring the motor operates within recommended temperature ranges. Arizona’s dry climate reduces rust risks but necessitates dust management.

Q4: Does the machine require special electrical requirements?
A4: The machine typically operates on 220V or 440V, 3-phase power. Specific requirements depend on your facility setup.

Q5: What is the lead time for installation and setup in Arizona?
A5: Installation and setup usually take 2-4 weeks, including delivery, assembly, and testing.

Q6: Can this machine process coated or painted steel?
A6: Yes, the machine is compatible with pre-painted, galvanized, and coated steel materials, making it ideal for Arizona’s varied aesthetic and durability demands.

Q7: Is training provided with the machine?
A7: Yes, comprehensive training is provided during installation to ensure operators are proficient in using the machine and maintaining safety standards.

Conclusion

The Corrugated Metal Panel Roll Forming Machine is a reliable and high-performance solution for Arizona’s roofing and construction industries. With its advanced features, robust build, and compatibility with various material gauges, it is a valuable asset for manufacturers looking to produce premium-quality corrugated panels. The inclusion of safety and precision features ensures that it meets the highest industry standards, providing excellent value for businesses in the region.
