Corrugated metal roofing manufacturer roll forming machine USA

A Corrugated Metal Roofing Roll Forming Machine is a state-of-the-art solution for producing precise and reliable corrugated panels. Below, we explore the machine’s specifications, capabilities, profiles it produces, and additional features suited for the U.S. market.

Machine Description

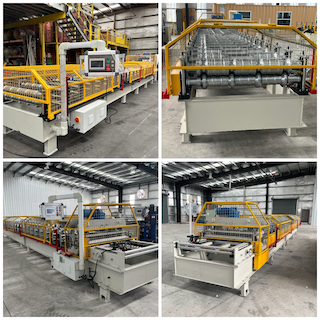

The Corrugated Metal Roofing Manufacturer Roll Forming Machine is specifically designed for the production of high-quality metal roofing panels in the USA. It offers unparalleled precision, efficiency, and durability, meeting the demanding requirements of roofing manufacturers. Equipped with advanced automation and safety features, it simplifies the production process while maintaining strict compliance with U.S. safety and industry standards.

Specifications

• Machine Dimensions: 40 feet long, 5 feet wide
• Material Capability: Processes 24-gauge (0.0239 inches) to 29-gauge (0.0149 inches) steel
• Roller Configuration: 18 heavy-duty stands with durable rollers designed for consistent shaping and longevity
• Pre-Shear Capability: Integrated for cutting panels before the roll forming process
• Computer Batching System: Ensures accurate production runs with customizable batch sizes
• Drive System: Chain drive for reliable and robust operation
• Motor: Heavy-duty motor for consistent high-speed production
• Safety Features: Emergency stops (E-stops) and safety covers for operational safety compliance
• Measurement Readout: Inch-based digital readout for precise length tracking
• Uncoiler Compatibility: Works with a 10,000 lb uncoiler equipped with a coil car for easy loading and handling

Profiles Produced by the Machine

The machine produces corrugated metal roofing profiles with consistent ribbing, a hallmark of strength and weather resistance. The profiles are highly versatile, offering applications in various sectors:

Profile Specifications:

• Width: Up to 5 feet (adjustable based on customer needs)
• Material Thickness: 24-gauge to 29-gauge steel
• Profile Features:
  • Enhanced structural rigidity due to uniform rib spacing
  • High resistance to weather, fire, and corrosion
  • Ideal for long-span roofing and cladding

Features Designed for the USA Market

1. Durability:
   The machine's heavy-duty build and chain drive system make it suitable for large-scale operations, common in U.S. manufacturing plants.
2. Automation:
   The integrated computer batching system ensures quick adjustments and streamlined production for varying batch sizes, catering to diverse U.S. roofing demands.
3. Safety Compliance:
   Equipped with E-stops and safety covers, this machine adheres to OSHA safety standards, ensuring operator protection.
4. Pre-Shear Capability:
   This feature eliminates the need for additional trimming, speeding up production and reducing material waste.
5. Uncoiler Compatibility:
   Designed to handle heavy coils (up to 10,000 lbs) with ease, the machine integrates seamlessly with an uncoiler equipped with a coil car, simplifying operations in high-volume U.S. facilities.

Setup and Maintenance

• Setup Process:
  • Position the machine and uncoiler securely on a flat, stable surface.
  • Connect the power supply (ensure compatibility with U.S. voltage standards).
  • Load steel coils onto the uncoiler using the integrated coil car.
  • Configure the batching system via the PLC interface.
  • Perform a trial run to ensure proper alignment and rib formation.
• Maintenance Requirements:
  • Regularly inspect and lubricate rollers and chain drives.
  • Ensure the pre-shear mechanism is clean and free from debris.
  • Check motor and PLC systems for optimal functionality.
  • Replace worn safety covers or E-stop buttons as needed.

Question and Answer Section

Q1. What is the production speed of this machine?
A: The production speed varies but typically ranges between 30 to 50 feet per minute, depending on the material and profile.

Q2. Can the machine process materials other than steel?
A: Yes, the machine can process materials like aluminum and galvalume, provided they fall within the specified gauge range (24g to 29g).

Q3. What power requirements does this machine have?
A: The machine is designed to operate on standard U.S. industrial voltage (typically 220V or 480V, 3-phase).

Q4. Is technical support available for installation and training?
A: Yes, manufacturers typically offer on-site setup and training for operators. Remote support options are also available.

Q5. Can the machine produce custom corrugated profiles?
A: Yes, the machine can be customized to produce different corrugated profiles based on customer specifications.

Q6. How does the pre-shear feature benefit production?
A: The pre-shear feature reduces material waste and eliminates the need for secondary trimming, saving time and improving efficiency.

Q7. What is the expected lifespan of the rollers?
A: With regular maintenance and proper lubrication, the rollers can last several years under standard production conditions.

Conclusion

The Corrugated Metal Roofing Roll Forming Machine is an essential asset for U.S. manufacturers looking to produce high-quality corrugated roofing panels efficiently. With advanced automation, robust construction, and compatibility with industry standards, this machine ensures optimal performance and profitability. For roofing manufacturers in the United States, it offers the perfect balance of precision, safety, and productivity.

Corrugated metal roofing remains one of the most widely used roofing profiles in the United States, thanks to its durability, cost-effectiveness, and versatility. Manufacturers in the U.S. rely on specialized roll forming machines to produce these profiles efficiently, ensuring consistent quality for various applications, including residential, commercial, and industrial roofing.
