Corrugated steel bridge decking roll forming machine USA

Corrugated steel bridge decking is a crucial component in bridge construction, providing high strength, durability, and efficient load distribution. In the United States, the demand for corrugated steel bridge decking roll forming machines is increasing due to the expansion of infrastructure projects and the need for reliable, high-performance steel deck production.

This article explores the Corrugated Steel Bridge Decking Roll Forming Machine tailored for the U.S. market, its specifications, features, applications, and installation requirements, along with an in-depth Q&A section.

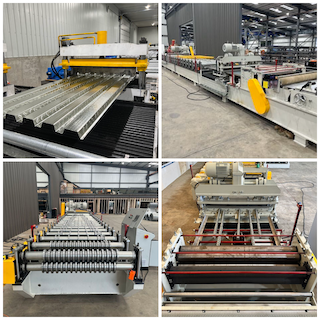

Corrugated Steel Bridge Decking Roll Forming Machine – Description

A Corrugated Steel Bridge Decking Roll Forming Machine is designed to manufacture high-strength, lightweight, and structurally efficient corrugated bridge decks used in bridges and elevated roadways. These decks enhance load distribution and support heavy traffic loads over extended periods.

This machine processes galvanized steel or other high-strength steel sheets into precise corrugated decking profiles, ensuring durability and compliance with U.S. infrastructure standards.

The roll forming process uses a series of 28 forming stations to shape the metal sheet progressively, achieving a high-precision, uniform deck profile. The hydraulic shear cutting system ensures clean and accurate cuts, minimizing material waste.

Machine Specifications – USA

Key Features & Benefits

1. Heavy-Duty Construction

• Designed to handle 18g - 24g steel sheets, ideal for high-load bridge decking.
• Sturdy frame construction supports long-term high-speed production.

2. Precision Roll Forming Process

• 28 forming stations ensure uniform and dimensionally accurate profiles.
• Hydraulic shear cutting system provides clean and burr-free edges.

3. Efficient Power & Drive System

• 32HP motor for consistent and reliable power output.
• Chain drive or gearbox options ensure optimal torque and efficiency.
• 480V - 3Ph - 60Hz power supply, compliant with U.S. industrial standards.

4. High-Speed Production

• Capable of producing continuous steel bridge decks at high speeds.
• Minimal material waste due to precise cutting and forming processes.

5. Safety & Compliance

• Equipped with E-Stops for emergency shutdown.
• Optional safety covers available to enhance workplace safety.

Applications of Corrugated Steel Bridge Decking

The corrugated steel bridge decking produced by this machine is widely used in:

• Highway Bridges – Provides structural support for asphalt or concrete bridge decks.
• Pedestrian Bridges – Ensures durability and weight efficiency.
• Railway Bridges – Used in elevated railway track supports.
• Modular Bridge Systems – Ideal for quick installation and assembly.

Installation & Maintenance

Installation Process

1. Machine Setup: Position the machine on a flat, stable foundation (85ft space required).
2. Electrical Connection: Requires 480V - 3Ph - 60Hz power supply.
3. Hydraulic System Setup: Connect hydraulic shear for cutting operations.
4. Material Loading: Load the 18g - 24g steel coils onto the machine.
5. Testing & Calibration: Run test sheets to check accuracy and alignment.
6. Safety Inspection: Ensure E-Stops and optional safety covers are functional.

Maintenance Requirements

• Regular Lubrication of gearbox and forming rollers to prevent wear.
• Hydraulic System Inspection to maintain cutting efficiency.
• Check Electrical Components to ensure consistent power output.
• Routine Cleaning to prevent material buildup on rollers.

Frequently Asked Questions (Q&A Section)

1. What is the production capacity of this machine?

The machine can continuously produce corrugated bridge decking at a high speed, depending on the material thickness and production settings.

2. What type of steel can be used in this roll forming machine?

This machine processes galvanized steel, mild steel, and other high-strength steel sheets with thicknesses ranging from 18-gauge to 24-gauge.

3. What power requirements are needed for installation in the USA?

The machine operates on 480V - 3 Phase - 60Hz, which is the standard industrial power supply in the United States.

4. Is the cutting system fully automated?

Yes, the machine features a hydraulic shear cutting system, which is fully automated to ensure accurate and smooth cuts.

5. What safety features are included?

The machine is equipped with E-Stops for emergency shutdown, and optional safety covers can be added for extra protection.

6. Can this machine be customized for different bridge deck profiles?

Yes, the machine can be customized with different roller sets to produce various corrugated decking profiles based on project requirements.

7. How long does it take to install and set up the machine?

The installation and commissioning process typically takes 1-2 weeks, including testing and calibration.

8. What type of maintenance is required for long-term use?

Regular lubrication, hydraulic inspections, electrical checks, and roller cleaning are necessary to ensure optimal performance and longevity.

9. Can this machine be used for other applications besides bridge decking?

Yes, the corrugated steel profiles can be used in construction, roofing, and industrial platforms, depending on the design specifications.

10. Is after-sales support available for U.S. customers?

Yes, most manufacturers provide technical support, spare parts, and remote troubleshooting for U.S.-based customers.

Conclusion

The Corrugated Steel Bridge Decking Roll Forming Machine is an essential solution for producing high-strength, precision-engineered bridge decking in the U.S. infrastructure industry.

With robust specifications, a high-speed production capacity, and compliance with American power standards, this machine is an ideal choice for bridge construction companies, steel fabricators, and infrastructure developers.

For inquiries about machine pricing, customization options, and delivery, feel free to contact us today!
