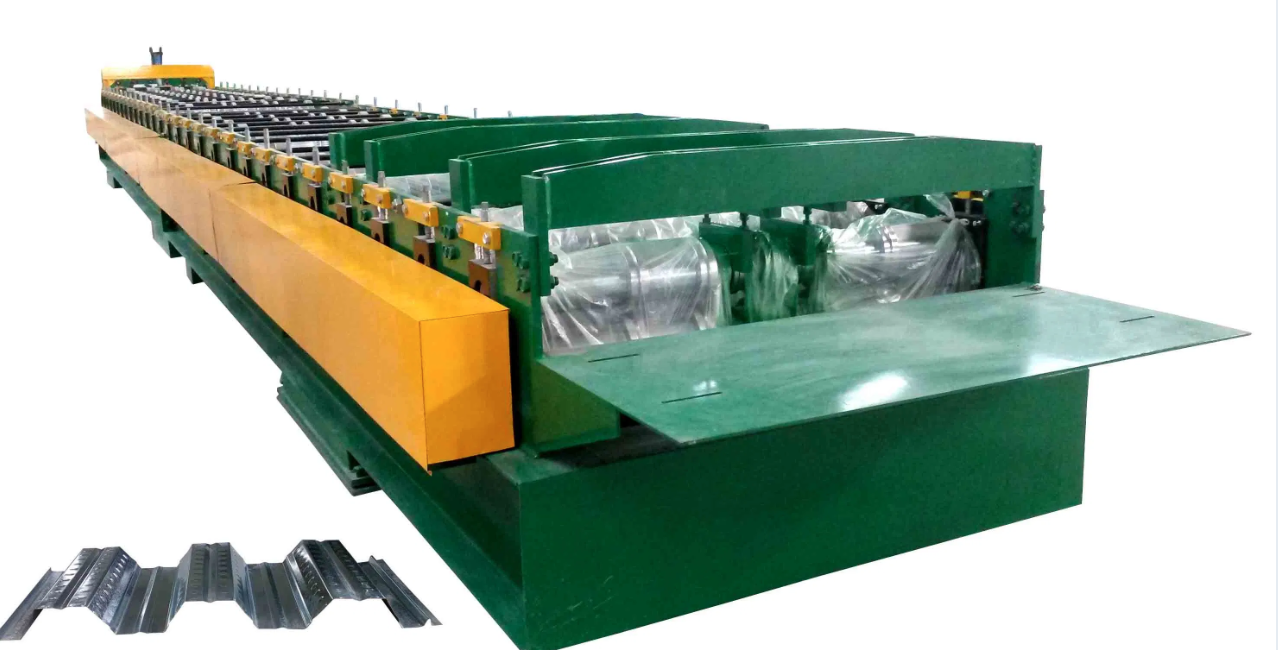

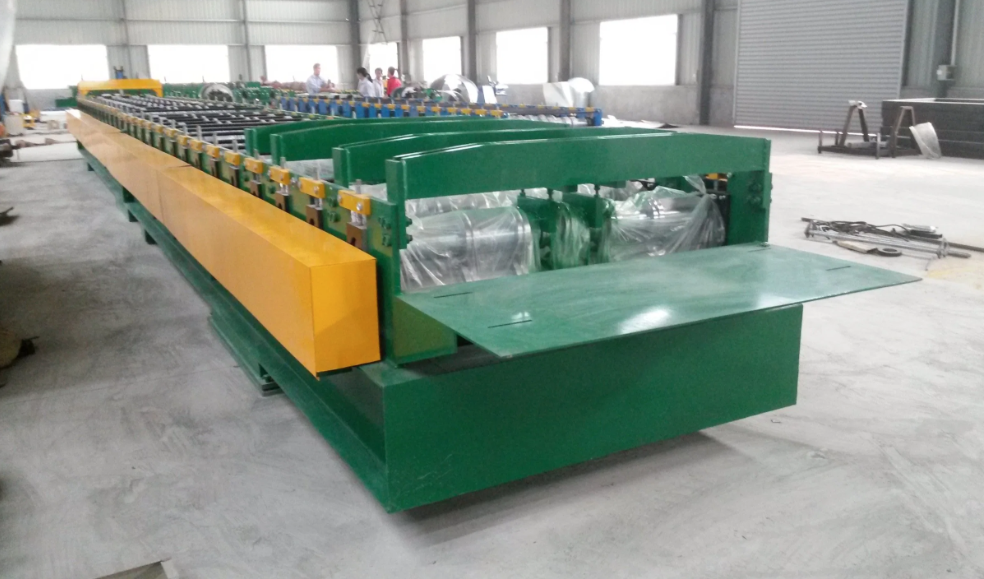

Corrugated Steel Decking Roll Forming Machine specification
Main Accessories:
1. Main floor deck forming machines,
2. 5 tons manual decoiler;
3. Hydraulic system;
4. PLC computer controlling system with touch screen;
5. Hydraulic forming cutter;
6. Run Out Table (3 sets);
7. Operational manual;
8.tools.
| 1. | Dimension | 16000*1800*1500mm |
| 2. | Hydraulic Motor Power | 37KW |
| 3. | Weight | 20 Tons |
| 4. | Material Width | 1219mm |
| 5. | Effective Width | 900mm |
| 6. | Material Thickness | 0.6-1.8mm |
| 7. | Forming Steps | 16 steps |
| 8. | Usage | Floor Decking Panel |
