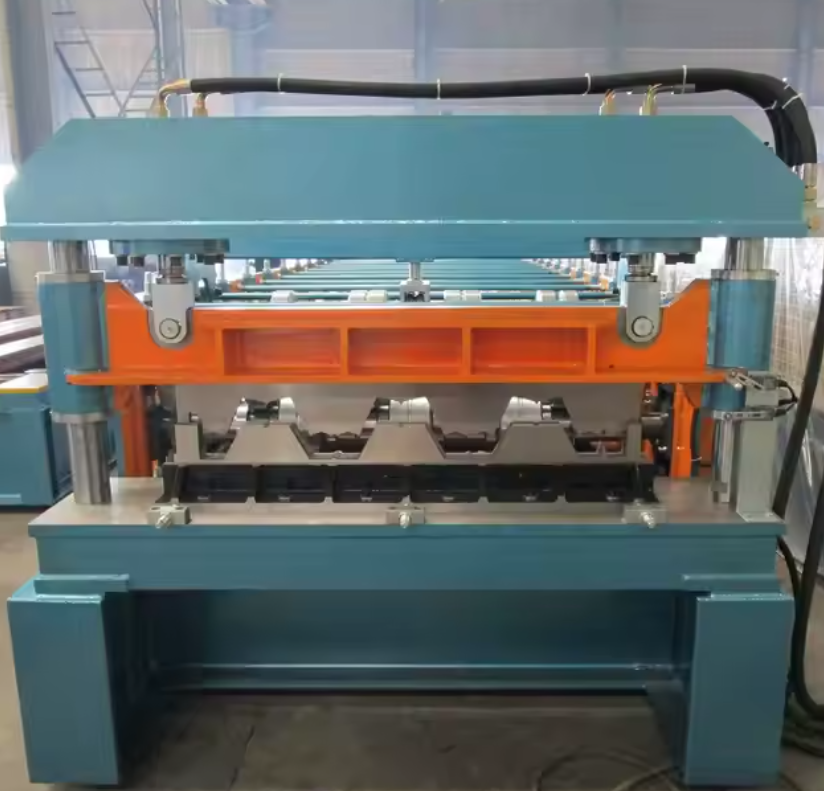

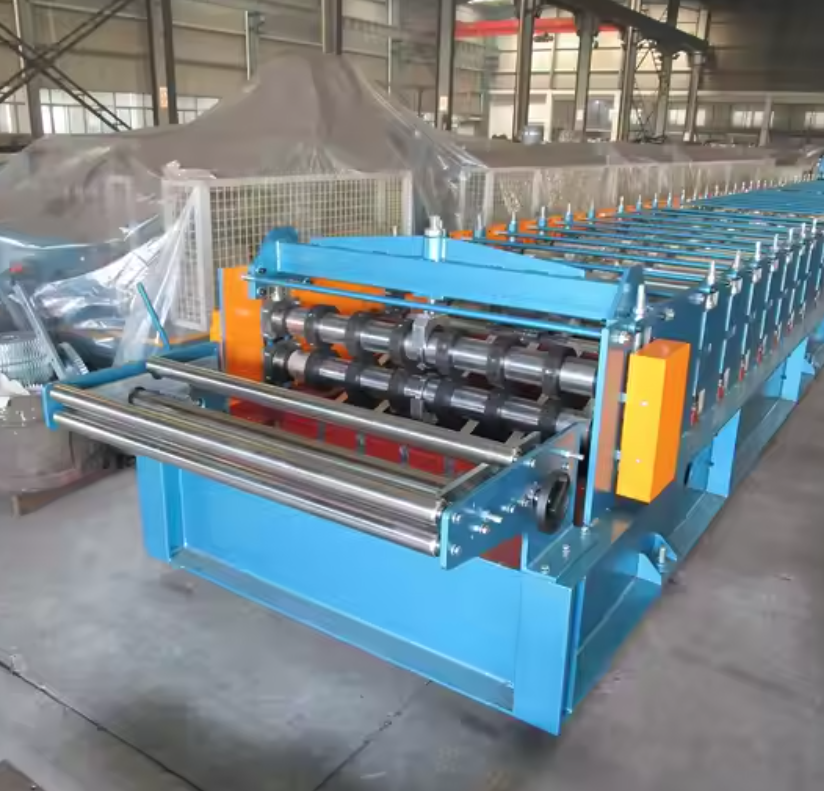

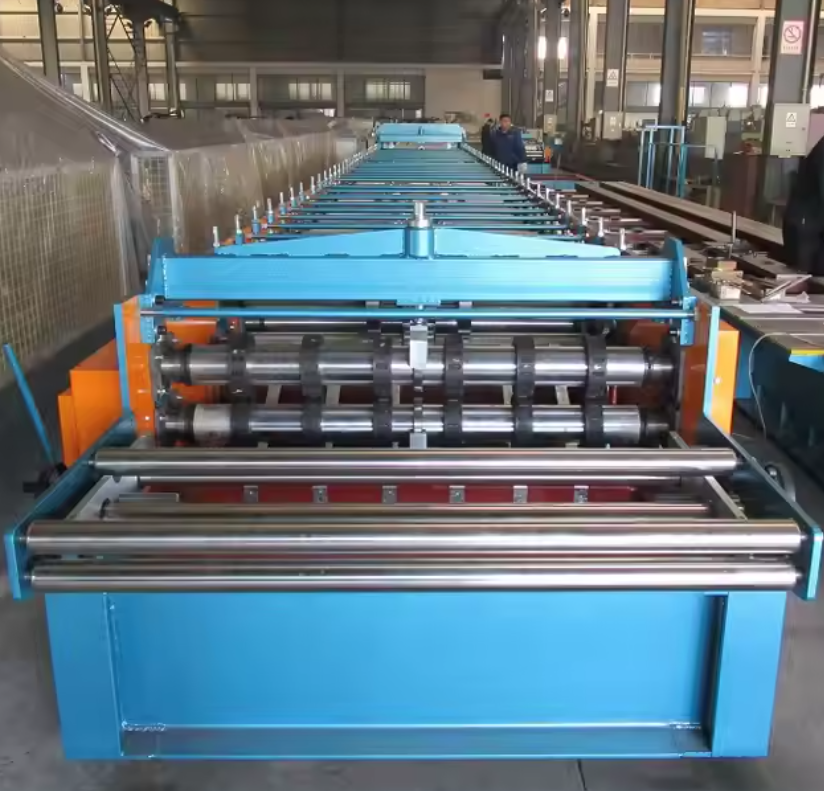

Machine Matcher offers high-performance Floor Deck Roll Forming Machines engineered for precision, speed, and long-term durability—specifically tailored for industrial projects across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and other major cities.
This machine is ideal for manufacturing structural metal floor decking used in large commercial and industrial buildings. Built to deliver high throughput, consistent accuracy, and superior profile finish, it is the go-to solution for companies that demand robust performance and high production efficiency.
All machines are new, custom-built, and delivered directly to your location in the UAE from our trusted global manufacturing partners. From installation support to local after-sales care, Machine Matcher ensures you receive world-class service every step of the way.
Machine Type: Floor Deck Roll Forming Machine
Production Speed: 10–20 meters/min (depending on profile and material)
Material Thickness Range: 0.8 mm to 1.5 mm
Material Width Range: 1000 mm to 1300 mm
Material Types: Galvanized Steel, Galvalume, Cold Rolled Steel
Material Yield Strength: Up to 550 MPa (80 ksi)
Roller Material: High-Grade GCr15 Steel
Roller Surface Treatment: Hard Chrome Coating
Number of Forming Stations: 20–26 stations (varies with profile)
Roller Shaft Diameter: 75 mm
Shaft Material: Solid 45# Steel, precision-ground
Main Drive Type: Chain Drive or Gearbox Drive (based on customer request)
Power for UAE Location: 380V / 50Hz / 3-Phase
Motor Power: 15 kW–22 kW depending on configuration
Cutting Method: Hydraulic Post-Cutting
Blade Material: Cr12Mov Heat Treated Steel
Control Type: PLC Control System (Siemens or Delta)
Operating Mode: Fully Automatic
De-coiling System: Manual or Hydraulic De-coiler, 5–10 Ton capacity
Punching/Notching System: Optional hydraulic notching unit available
Machine Frame: Welded Steel Frame with precision-machined base
Thickness of Frame Steel: 20–25 mm
Profile Shape: Floor Deck (Ribbed or Trapezoidal)
A: Yes. We manufacture each machine to match your exact floor deck profile. Just send us your drawing.
Profile Width and Depth: Customized (typically 915–1219 mm wide; depth 51–76 mm)
Length Tolerance: ±2.0 mm
Fully enclosed protective covers and guards
Integrated Emergency Stop Button
Overload Protection System for motors and hydraulic units
This machine caters to several key sectors:
Construction & Infrastructure
Manufacturing composite floor decking for commercial buildings, bridges, high-rises, and warehouses.
Steel Structure Fabrication
Producing structural floor panels used in pre-engineered buildings (PEBs).
Industrial Warehousing
Creating load-bearing platforms and mezzanine floors.
A structural steel contractor in Dubai uses this machine to produce thousands of square meters of floor deck daily for multi-level car parks.
A PEB fabricator in Sharjah relies on this machine to produce custom ribbed deck profiles for export to GCC countries.
Profile customization to match local or project-specific standards
Optional embossing rolls for better concrete bonding
Choice between manual or automatic stackers
Selection of PLC brands (Siemens, Delta, Mitsubishi)
Motor and power configurations to suit your factory environment
Add-on: Hydraulic notching, oiling, or servo-feeding systems
Tailored Precision: Each machine is custom-engineered to your specific floor deck profile, ensuring seamless fitment in your project builds.
Durability: Built with high-grade materials including GCr15 rollers and Cr12 cutting blades for long-lasting wear resistance.
Higher Output, Lower Costs: High-speed, low-maintenance operation results in increased productivity and reduced labor costs.
Full Support: From profile consultation to commissioning and after-sales, Machine Matcher ensures full-cycle service and peace of mind.
Local Readiness: Power and voltage specifications aligned with UAE industry standards. Fast shipping and on-site installation available upon request.
Q: What material types and thicknesses are normally used with this machine?
A: The machine is designed to work with galvanized steel or galvalume, ranging from 0.8 mm to 1.5 mm, typically with a yield strength of up to 550 MPa (80 ksi).
Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available upon request.
Q: What is the lead time for manufacturing and shipping?
A: Production time is 30–60 days, and shipping time depends on your delivery port in the UAE.
Q: What affects the final machine price?
A: Pricing depends on customization, optional add-ons (like notching or automatic stackers), and power configurations. Contact us for a tailored quote.
Prices start from: USD $38,000 (standard model, FOB)
Custom features, profile variations, automation upgrades, and installation support will influence final pricing.
For an exact quotation tailored to your requirements, please send your profile drawings and project details to:
[email protected]
Machine Matcher supplies and ships all machines directly from our manufacturing facilities to your specified site across the United Arab Emirates, including:
Abu Dhabi
Dubai
Sharjah
And other commercial and industrial zones
Every machine is built to order, ensuring compatibility with your local standards and project requirements.
All machines come with a 1-year warranty from the date of dispatch and include durable maintenance and repair support. Our technical team is available to support you throughout the machine’s lifecycle.
To get started, send your profile drawings, material specs, or any questions to:
📩 [email protected]
Machine Matcher – Your Expert Source for Floor Deck Roll Forming Machines in the UAE
