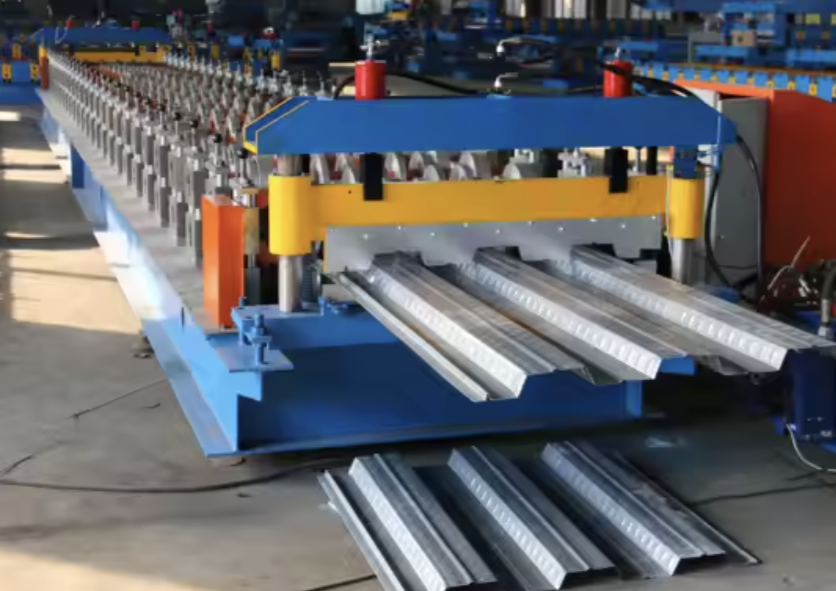

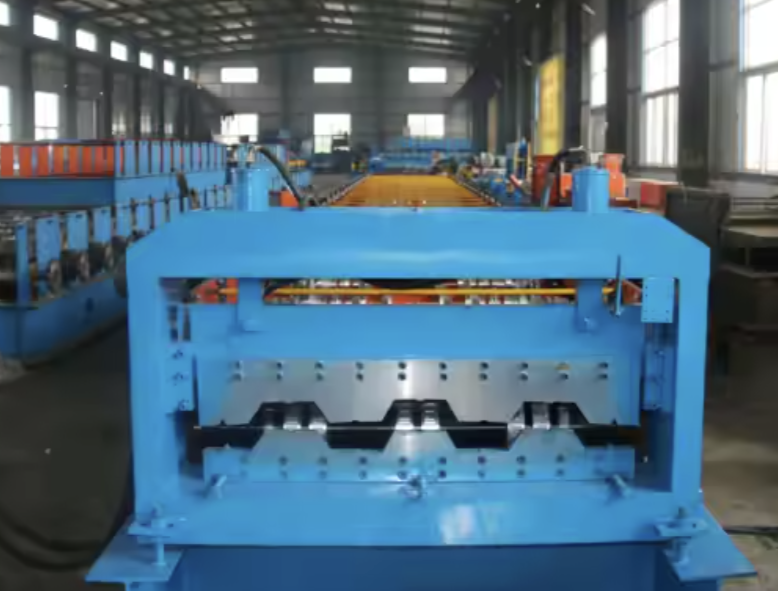

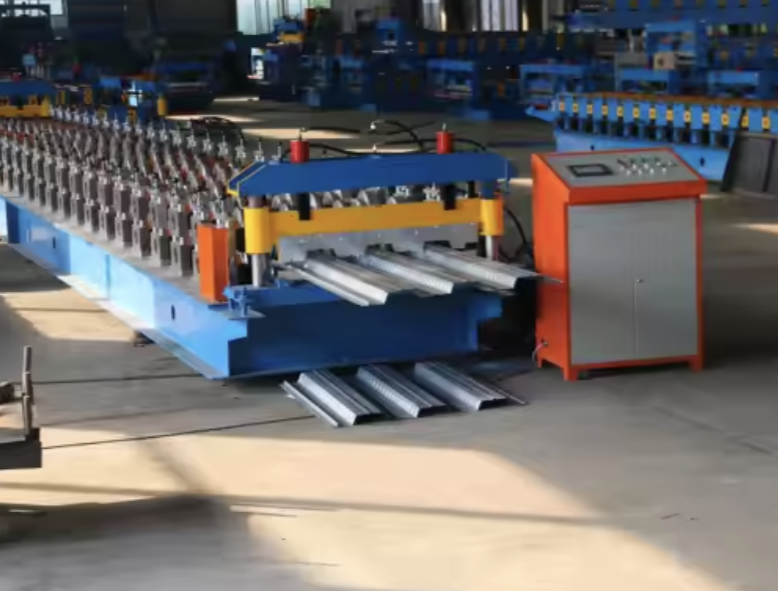

The Metal Mezzanine Decking Roll Forming Machine is expertly designed to manufacture high-strength metal decking profiles used extensively in mezzanine floors, raised storage platforms, and intermediate levels within warehouses, factories, and large commercial buildings across the United Arab Emirates.
Built for the UAE's demanding construction and industrial markets, this machine offers precision, durability, and high output, making it an essential piece of equipment for steel fabricators, contractors, logistics companies, and industrial developers.
All machines are new, custom-built to your specific profile drawings and technical needs, and can be delivered anywhere in the UAE, including Abu Dhabi, Dubai, Sharjah, and other major cities, directly from our manufacturing partners.
Note: Pricing varies based on selected optional extras and customizations. Contact us for a tailored quote to match your project requirements.
| Feature | Specification |
|---|---|
| Machine Type | Metal Mezzanine Decking Roll Forming Machine |
| Production Speed | 15–20 meters per minute |
| Material Thickness Range | 0.8mm – 2.0mm |
| Material Width Range | Up to 1250mm |
| Material Types | Galvanized Steel, Cold Rolled Steel, High-Tensile Steel |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | High-Grade 45# Steel with Hard Chrome Coating |
| Roller Surface Treatment | Hard Chrome Plated for Wear Resistance |
| Number of Forming Stations | 18–24 Stations (depending on profile design) |
| Roller Shaft Diameter | 75mm solid shafts |
| Shaft Material | 40Cr precision-ground, quenched and tempered |
| Main Drive Type | Gearbox drive for high strength and reliability |
| Power | 380V/50Hz/3-Phase (adjustable based on UAE standards) |
| Motor Power | 22KW main motor (or customized) |
| Cutting Method | Hydraulic Cutting after Forming |
| Blade Material | Cr12Mov Steel, Heat Treated |
| Control Type | PLC Fully Automatic Control |
| Operating Mode | Touchscreen HMI and Manual Backup Controls |
| De-coiling System | Hydraulic De-coiler (5T–10T capacity) |
| Punching/Notching System | Optional Hydraulic Punching/Pre-Punching Unit |
| Machine Frame | Heavy-duty welded steel base frame |
| Thickness of Frame Steel | 20mm welded frame |
| Profile Shape | Custom mezzanine deck profiles (open flat or ribbed) |
| Profile Width and Depth | As per customer drawings (typical depth 32mm–76mm) |
| Length Tolerance | ±2mm |
| Safety Features | Full Protective Covers and Guards |
| Emergency Stop Button | |
| Overload Protection System |
This mezzanine decking machine is ideal for companies in:
Warehousing and Storage (mezzanine floors for racking systems)
Industrial Construction (intermediate floors in factories and production plants)
Retail and Commercial Projects (multi-level retail storage spaces)
Logistics and Distribution Centers
Structural Steel Contractors
Building Material Suppliers
The growing construction and logistics boom in the UAE, especially in hubs like Dubai and Abu Dhabi, makes this machine an excellent investment for companies targeting durable, cost-effective flooring systems.
We deliver new mezzanine deck roll forming machines to all major cities including Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, and Al Ain. Each machine is made to order to match your specific needs.
All machines include:
1-Year Warranty (from dispatch)
Durable Maintenance and Repair Support
Comprehensive Technical Support
Spare Parts and Wear Parts Availability
If you have a profile drawing, material specifications, or project details, send them to [email protected] for a fast and accurate quotation.
Q1: Can you deliver the mezzanine decking roll forming machine to Dubai?
A: Yes, we deliver machines throughout the UAE, including Dubai, Abu Dhabi, Sharjah, and other emirates.
Q2: What material thickness can the machine handle?
A: The machine can process material thicknesses between 0.8mm and 2.0mm.
Q3: Can the machine be customized for different profile sizes?
A: Absolutely. Each machine is custom-built based on your provided drawings and project requirements.
Q4: How fast is the production speed?
A: The production speed typically ranges between 15 to 20 meters per minute depending on profile complexity.
Q5: Does the machine come with a de-coiler?
A: Yes, a hydraulic de-coiler with 5–10 tons capacity can be included as an option.
Q6: What type of cutting system does it use?
A: Hydraulic cutting after forming, with blades made of Cr12Mov steel.
Q7: What warranty and support are included?
A: All machines come with a one-year warranty, with durable maintenance and repair support available thereafter.
Q8: Can you assist with installation and training in the UAE?
A: Yes, installation and training support is available. Please contact us to discuss service arrangements.
📩 Email your project requirements, profile drawings, and material details to: [email protected]
Let’s match you with the best mezzanine decking roll forming solution for your UAE project!
