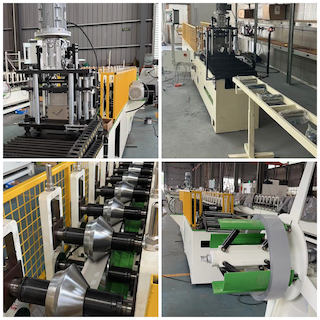

Type D Drip edge roll forming machine USA

The Type D Drip Edge Roll Forming Machine is a high-performance, precision-engineered piece of equipment designed to manufacture drip edge profiles used in roofing systems. Drip edges are essential for protecting roof edges, directing water away from the fascia and underlying structures, and enhancing the overall longevity of roofing systems. This machine is particularly well-suited for the USA market due to its compliance with local power standards and its ability to handle high-volume production.

Machine Description

The Type D Drip Edge Roll Forming Machine is designed for efficiency, accuracy, and durability. Equipped with advanced features like an electric shear and a production speed of 80 feet per minute, this machine is ideal for businesses looking to scale production while maintaining quality. Its sturdy frame and precise engineering ensure consistent profile output, making it a reliable choice for roofing manufacturers and contractors across the USA.

Specifications

1. Weight: 2,500 lbs
2. Machine Dimensions: 18 ft (length) x 3 ft (width) x 5 ft (height)
3. Power Requirements: Electric, 240V, three-phase, 60 Hz
4. Production Speed: 80 feet per minute
5. Roller Stands: 10 stands
6. Cutting System: Electric shear
7. Material Compatibility:
   • Aluminum
   • Galvanized steel
   • Stainless steel
   • Copper
8. Material Gauge: 0.3mm to 0.7mm (customizable based on requirements)
9. Control System: PLC (Programmable Logic Controller) for user-friendly operation
10. Safety Features: Emergency stop, safety guards, and enclosures for moving parts

Profile Details

The Type D Drip Edge Roll Forming Machine produces drip edge profiles that are widely used in roofing applications. The profiles are designed to meet the following specifications:

• Profile Widths: Customizable between 1 inch and 3 inches
• Material Options: Aluminum, steel, and other roofing-grade metals
• Market Applications: Residential, commercial, and industrial roofing projects
• Common Industries: Roofing contractors, construction companies, and building supply manufacturers

Advantages for the USA Market

1. Power Compatibility: The machine's 240V, three-phase, 60 Hz power specification aligns with standard U.S. industrial power systems.
2. High Speed: At 80 feet per minute, this machine meets the demands of high-production environments.
3. Ease of Installation: Compact size and standard U.S. fittings make installation straightforward.
4. Durable Build: Constructed for longevity, ensuring minimal downtime and maximum ROI.
5. Customizable Profiles: Adaptable to a wide range of drip edge designs to suit various regional requirements and preferences.

Setup and Installation

1. Preparation: Ensure the workspace is leveled and has access to a 240V three-phase power supply.
2. Unpacking: Carefully unpack the machine, ensuring all components are present and undamaged.
3. Positioning: Place the machine on a flat surface and secure it to avoid vibration during operation.
4. Electrical Connection: Connect the machine to the power supply and test the PLC system for functionality.
5. Trial Run: Conduct a test run with sample materials to calibrate the rollers and shear system.

Maintenance Requirements

• Daily Maintenance: Check the roller stands and clean any debris.
• Weekly Maintenance: Inspect the electric shear and apply lubrication as needed.
• Monthly Maintenance: Test the PLC system and recalibrate settings if necessary.
• Annual Maintenance: Conduct a comprehensive inspection of all mechanical and electrical components.

Questions and Answers

Q1: What materials can the Type D Drip Edge Roll Forming Machine handle?

A1: The machine is compatible with aluminum, galvanized steel, stainless steel, and copper, within a material gauge range of 0.3mm to 0.7mm.

Q2: Can the machine be customized for different profile sizes?

A2: Yes, the machine is customizable to produce various profile widths ranging from 1 inch to 3 inches.

Q3: What is the production capacity of this machine?

A3: The machine operates at a speed of 80 feet per minute, making it suitable for high-production environments.

Q4: Is the machine compliant with U.S. power standards?

A4: Yes, it operates on a 240V three-phase 60 Hz power supply, which is standard in the United States.

Q5: How long does it take to set up the machine?

A5: Setup typically takes 2-3 hours, depending on the experience of the technician and the workspace preparation.

Q6: Does the machine come with a warranty?

A6: Most suppliers provide a one-year warranty covering manufacturing defects. Extended warranties may be available upon request.

Conclusion

The Type D Drip Edge Roll Forming Machine is a versatile, efficient, and reliable choice for manufacturers and contractors in the USA. With its high-speed production, customizable profiles, and adherence to U.S. power standards, it stands out as a valuable asset for roofing projects. Whether you're a small business or a large-scale manufacturer, this machine can enhance your production capabilities while ensuring top-notch quality.
