Most Popular Roll Forming Machines in Madagascar

This guide covers the most popular roll forming machines in Madagascar: Types, Industries, Costs, and Expert Buying Help

Madagascar, a growing economy with expanding infrastructure and construction sectors, is seeing increased demand for roll forming machines. From roofing sheets to structural steel components, these machines are vital for creating consistent, high-quality metal profiles used across a wide range of industries. This blog explores the most popular types of roll forming machines in Madagascar, their specifications, the industries and regions using them, pricing, maintenance requirements, and how to get the right machine with support from Machine Matcher.

Most Popular Roll Forming Machine Types in Madagascar

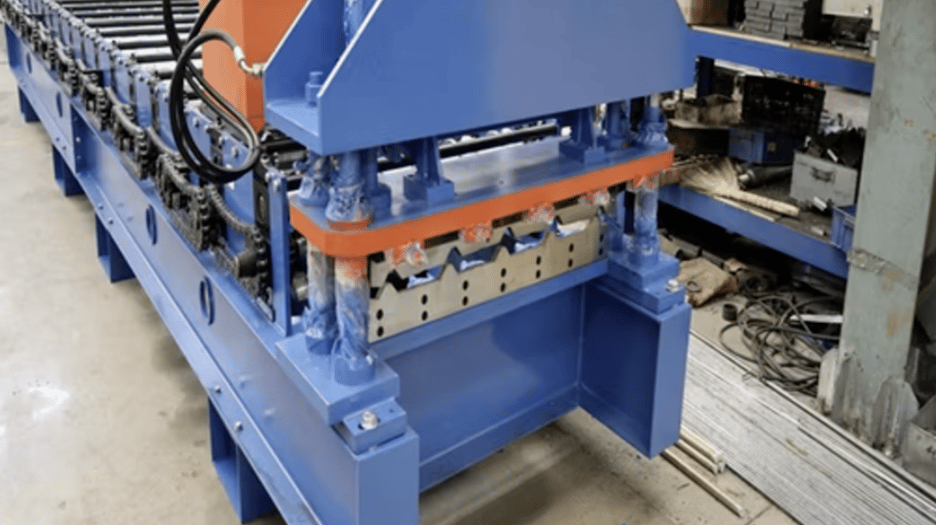

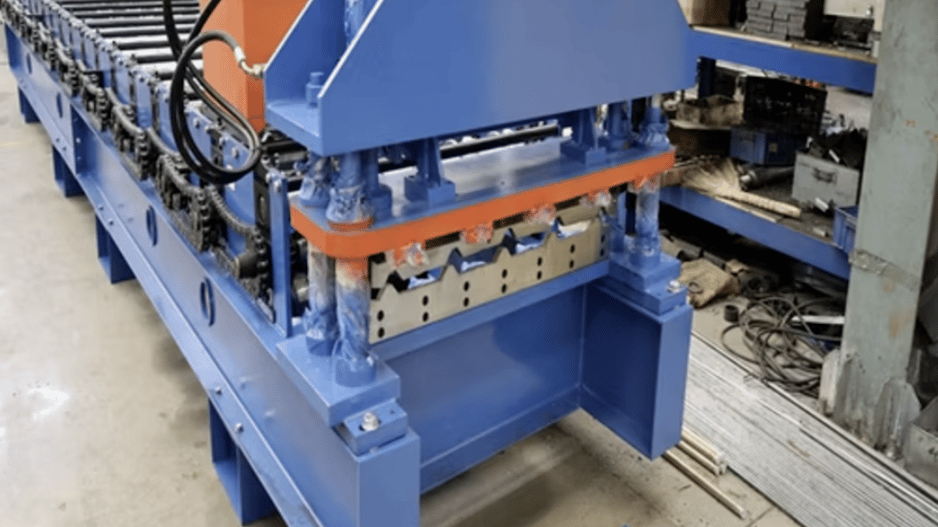

1. Roofing Sheet Roll Forming Machines

These are the most widely used in Madagascar’s building and construction sector.

Specifications:

  • Material: Galvanized steel, pre-painted steel, aluminum

  • Material Thickness: 0.3 mm to 0.8 mm

  • Rollers: 13–18 stations, made from 45# steel with hard chrome coating

  • Drive Type: Chain or gearbox

  • Cutting System: Hydraulic guillotine

  • Speed: 8–15 meters per minute

  • Control System: PLC (Mitsubishi, Siemens, or Delta)

Profiles Used: Corrugated, IBR, trapezoidal panels

Industries: Residential and commercial roofing, warehouses, rural housing projects

2. C/Z Purlin Roll Forming Machines

Used for producing structural steel purlins for frames and buildings.

Specifications:

  • Material: Galvanized steel, cold-rolled steel

  • Thickness: 1.5 mm to 3.0 mm

  • Roller Stations: 18–22 stations

  • Changeover: Manual or automatic C/Z interchanging system

  • Speed: 10–20 m/min

  • Punching & Cutting: Hydraulic punching and post-cutting system

Profiles Used: C100-C300 and Z100-Z300 purlins

Industries: Steel structure building, logistics warehouses, solar racking

3. Gutter and Downspout Roll Forming Machines

Essential for water management systems in buildings.

Specifications:

  • Material: Aluminum, galvanized steel, color-coated steel

  • Thickness: 0.4 mm to 0.7 mm

  • Forming Stations: 12–16

  • Speed: 8–12 m/min

  • Drive Type: Chain

Profiles Used: K-style gutter, half-round gutter, rectangular downpipes

Industries: Residential construction, public facilities

4. Door Frame and Steel Door Roll Forming Machines

In demand in Madagascar’s urban commercial and industrial sectors.

Specifications:

  • Material: Galvanized steel

  • Thickness: 1.0 mm to 2.0 mm

  • Cutting System: Hydraulic with punching for locks and hinges

  • Speed: 8–12 m/min

Profiles Used: Jambs, channels, and frame sections

Industries: Building materials, security doors, warehouse doors

5. Highway Guardrail Roll Forming Machines

Used for safety barriers on roads, especially in developing transport corridors.

Specifications:

  • Material: Galvanized or hot-rolled steel

  • Thickness: 2.0 mm to 3.5 mm

  • Profiles: W-beam and thrie-beam guardrails

  • Speed: 10–15 m/min

  • Cutting: Hydraulic with pre-punching system

Industries: Road construction, public infrastructure

Key Industries Using Roll Forming Machines in Madagascar

  • Construction and Roofing: Dominant sector using corrugated and trapezoidal sheet machines.

  • Agricultural Warehousing: Demands purlin and panel machines for large shelters.

  • Public Infrastructure: Highway guardrails and drainage systems.

  • Manufacturing: Doors, window frames, and other structural metal parts.

Main Cities and Areas Using Roll Forming Machines

  • Antananarivo: The capital and industrial hub; most machines are installed here.

  • Toamasina: Port city with warehousing and construction activity.

  • Antsirabe: Known for growing light manufacturing and construction.

  • Fianarantsoa and Mahajanga: Smaller cities seeing expansion in infrastructure projects.

Maintenance Requirements

Maintaining roll forming machines is crucial to avoid downtime:

  • Daily: Clean rollers, check for metal debris, inspect sensors

  • Weekly: Lubricate bearings and chains, test emergency stops

  • Monthly: Check roller alignment, hydraulic fluid levels, and PLC memory

  • Annually: Full inspection of electrical components, re-chrome worn rollers, recalibrate forming stations

Regular maintenance improves longevity and production accuracy.

Setup and Operation of Roll Forming Machines

Setup Steps:

  1. Install the base frame on level ground.

  2. Connect electrical power according to the local voltage and frequency.

  3. Align rollers and feed guides for the specific profile.

  4. Connect the hydraulic system for cutting/punching units.

  5. Load coil on the uncoiler and test the straightening section.

  6. Run trial production to adjust speed, accuracy, and cutting length.

Operation Tips:

  • Use the PLC interface to set production quantity, length, and punching patterns.

  • Monitor sheet feeding and alignment regularly.

  • Pause the machine immediately if abnormal noise or material jams occur.

Operators typically need 3–5 days of hands-on training.

Roll Forming Machine Prices in Madagascar

Low-End Machines:

  • Basic roofing sheet machines or light door frame machines

  • Price Range: USD 15,000 – USD 30,000

High-End Machines:

  • C/Z Purlin auto-change lines, guardrail machines, gutter systems with punching units

  • Price Range: USD 45,000 – USD 120,000+

Factors like profile complexity, automation level, and roller materials affect cost.

Local and Regional Manufacturers

Madagascar has limited domestic manufacturers. Most roll forming machines are imported from:

  • China

  • Turkey

  • India

  • South Africa

Some local companies provide assembly, installation, and basic support but not full-scale manufacturing.

Why Machine Matcher is the Best Choice for Madagascar

Machine Matcher specializes in helping businesses in Madagascar and across Africa source roll forming machines suited for their profile needs and industry applications. Here's how Machine Matcher supports your success:

  • Profile Matching: Send us your drawing or sketch, and we’ll recommend the best machine.

  • New and Used Options: Access high-quality new and reconditioned roll forming machines.

  • Expert Support: We help you with installation, shipping, and after-sales services.

  • Global Network: We work with leading manufacturers in Asia, Europe, and the USA.

  • Tailored to Local Needs: We consider voltage, power supply, material thickness, and climate conditions in Madagascar before making recommendations.

Whether you're a roofing contractor in Antananarivo or a steel frame fabricator in Toamasina, Machine Matcher can match you with the right machine.

Questions and Answers

Q1: What type of power supply is required for roll forming machines in Madagascar?
A1: Most machines run on 380V/50Hz three-phase power, but options are available for 220V or 415V based on location.

Q2: Can I use aluminum with my roofing sheet roll forming machine?
A2: Yes, many machines can process aluminum, but rollers should be chrome-coated and adjusted for softer metal.

Q3: How long does delivery and installation take?
A3: Delivery from overseas takes 6–10 weeks. Installation and training usually take 3–5 days on-site.

Q4: Can Machine Matcher help me buy used roll forming machines?
A4: Yes, Machine Matcher offers both new and used machines with detailed condition reports.

Q5: What happens if I need spare parts?
A5: Spare parts like rollers, motors, and PLC components can be shipped to Madagascar. Machine Matcher can assist with logistics.
