Most Popular Roll Forming Machines in Cyprus

This guide covers the most popular roll forming machines in Cyprus Types, Industries, Costs, and Expert Buying Help

November 24, 2023

Roll forming machines are integral to metal fabrication and construction projects across Cyprus, powering a wide range of industries with precise, high-volume profile production. From roof and wall cladding to structural framing, the demand for these machines has steadily grown, especially in cities like Nicosia, Limassol, Larnaca, and Paphos.

In this guide, we explore the most popular roll forming machines in Cyprus, including their types, specifications, applications, maintenance, pricing, operation, and how Machine Matcher can help you buy the right machine for your needs.

Popular Types of Roll Forming Machines in Cyprus

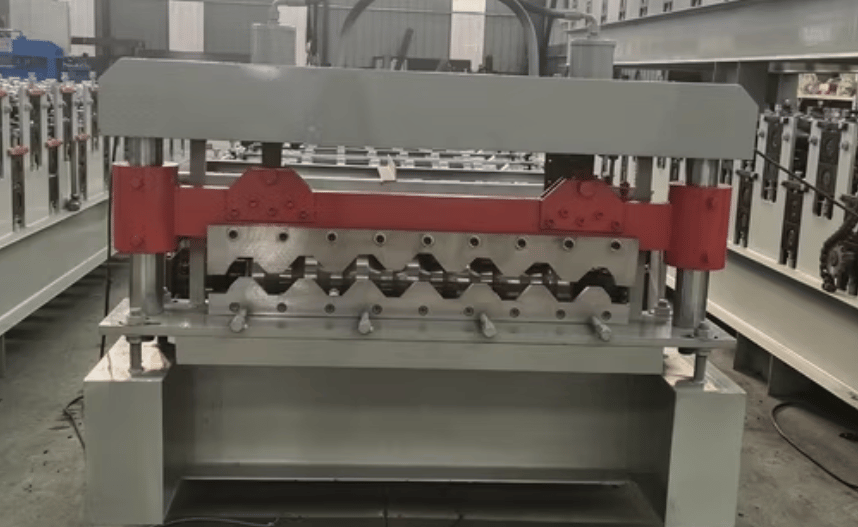

1. Roofing Sheet Roll Forming Machines

Specifications:

Roller Material: GCr15, heat treated and hard chrome coated
Thickness Capacity: 0.3–0.8 mm
Profile Types: Corrugated, trapezoidal, and standing seam
PLC Control System: Siemens or Delta
Speed: 10–15 meters per minute
Cutting Type: Hydraulic post-cutting

Industries: Roofing and cladding companies, construction firms, prefab building manufacturers
Cities of Use: Nicosia, Limassol, Larnaca

2. C/Z Purlin Roll Forming Machines

Specifications:

Size Range: 80–300 mm web height
Thickness: 1.5–3.0 mm
Punching and Notching: Fully automated
Changeover Time: ≤15 minutes (manual or automatic)
Drive Type: Gearbox with chain or servo motor

Industries: Structural steel, steel frame buildings, warehouses
Cities of Use: Limassol, Nicosia

3. Gutter Roll Forming Machines

Specifications:

Material: Galvanized steel, aluminum
Thickness: 0.4–0.8 mm
Roller Stations: 15–20
Speed: Up to 20 meters per minute
Shape: Half-round, K-style, and box gutter profiles

Industries: Rainwater systems, roofing companies, residential construction
Cities of Use: Paphos, Larnaca

4. Decking Roll Forming Machines

Specifications:

Profile Depth: 51–76 mm
Thickness: 0.8–1.5 mm
Material: Galvanized steel
Speed: 10–15 m/min
Roller Material: GCr15

Industries: Commercial building, multi-story construction, flooring systems
Cities of Use: Nicosia, Limassol

5. Light Steel Frame Roll Forming Machines

Specifications:

Profiles: U, C, L, Omega
Material: Galvanized steel (0.75–1.5 mm)
Control: Fully automated CAD/CAM integration
Punching: Servo-powered for fast throughput

Industries: Modular housing, prefab structures, interior partition systems
Cities of Use: Larnaca, Nicosia, rural development zones

Typical Applications

Residential and commercial roofing
Steel building frames
Floor decking for high-rise buildings
Gutter and downpipe systems
Prefabricated housing structures
Solar panel mounting rails
Agricultural buildings and storage units

Key Maintenance Practices

Daily: Clean rollers and surfaces to prevent debris buildup.
Weekly: Check alignment, lubricate chains and gears.
Monthly: Inspect electrical connections, check hydraulic oil levels.
Quarterly: Replace worn parts, recalibrate PLC and sensors.
Annually: Full diagnostic checkup, major part replacements if needed.

Troubleshooting Common Issues

Uneven Profile Output: Likely caused by worn or misaligned rollers.
Hydraulic Cutting Delay: Check solenoids or hydraulic oil levels.
Motor Overheating: Clean ventilation, ensure proper motor load.
PLC Error Codes: Fault in sensor or programming logic—requires software check.
Excessive Noise or Vibration: Gear misalignment or loose base mounts.

Limitations of Roll Forming Machines

Not ideal for short production runs or low-volume customization
High initial investment cost
Profile-specific tooling—limited flexibility without multiple sets
Requires skilled setup and maintenance personnel
Sensitive to material thickness and coil quality

Benefits of Roll Forming Machines

High-speed and high-volume production
Uniform profile quality with tight tolerances
Low waste and high material efficiency
Minimal labor required with automation
Reduced per-unit cost over long production runs
Capable of producing complex profiles with integrated punching

Setup, Installation, and Commissioning

Foundation: Flat concrete surface, at least 500mm clearance on all sides
Electrical Setup: 380V or 415V 3-phase power (Cyprus standard)
Coil Loading: Use uncoiler or coil car for safe and efficient loading
Roller Calibration: Set based on profile drawing, tested with sample runs
Commissioning: Dry run without material, followed by sample run with coil
Training: Operator training on machine use, emergency stops, PLC handling

Operation and Maintenance

Operate using the touch-screen PLC interface
Feed coil material into entry guide
Monitor production speed, profile accuracy, and cutting alignment
Regularly clear metal shavings and lubricate key components
Replace rollers or blades as per wear indicators

Price Range for Roll Forming Machines (International Market)

Machine Type	Price Range (USD)
Roofing Roll Formers	$20,000 – $65,000
C/Z Purlin Machines	$45,000 – $120,000
Gutter Roll Formers	$18,000 – $45,000
Decking Machines	$50,000 – $110,000
Light Steel Frame Machines	$60,000 – $160,000

Prices vary based on automation level, production speed, material thickness range, and optional extras like stackers or remote diagnostics.

Main Manufacturers of Roll Forming Machines in Cyprus

There are very few local manufacturers of roll forming machines in Cyprus. Most companies import machines from Europe, China, or Turkey. However, local service providers and resellers do offer installation, commissioning, and maintenance services.

For this reason, working with global machine experts like Machine Matcher can give you access to a wider inventory with technical support and better value.

Design Standards for Roll Forming Machines in Cyprus

Machines used in Cyprus generally follow CE and ISO standards to meet European compliance. Key standards include:

EN 60204-1 (Safety of Machinery)
ISO 9001 (Quality Management)
CE Compliance (for electrical and mechanical components)
EN 1090 (Structural Steel Components for Buildings)

How Machine Matcher Can Help with Buying and Inspections

At Machine Matcher, we simplify the process of sourcing, inspecting, and buying the right roll forming machine for your needs. Here's how we help:

Profile Matching: Send us your profile drawing or sketch, and we’ll recommend the perfect machine configuration.
Factory Inspections: We arrange full pre-shipment inspections, video reports, and testing runs.
Global Sourcing: Access new and used machines from vetted suppliers in Europe, China, Turkey, and India.
Shipping and Logistics: We help manage shipping from door to port, including crating and insurance.
After-Sales Support: We help connect you with local technicians and guide you through setup and maintenance.

Whether you're a contractor in Limassol or a roofing company in Larnaca, Machine Matcher ensures you get a machine that fits your needs, budget, and profile requirements.

Contact Machine Matcher

Speak to one of our roll forming machine experts today:
UK: +44 20 335 56554
USA: +1 407 559 7948
Europe: +32 460 24 13 95
WhatsApp: +44 20 335 56554
Email: [email protected]

Questions and Answers

Q: Can I use one machine to make different profiles?
A: Some machines, like C/Z purlin lines, allow profile size changes with minimal tooling. Others require separate tooling sets.

Q: How long does it take to install a new roll forming machine?
A: Usually 3–5 days, including electrical and mechanical setup, test runs, and training.

Q: Are used machines a good option in Cyprus?
A: Yes, especially with professional inspection. Used machines can offer significant savings if in good condition.

Q: Do I need special power requirements in Cyprus?
A: Most machines run on 380V–415V, 3-phase systems, which is standard across Cyprus.

Q: What materials can I use?
A: Galvanized steel, aluminum, PPGI, and stainless steel are common, depending on the profile and application.
