Most Popular Roll Forming Machines in Morocco

Morocco’s growing construction, infrastructure, and manufacturing sectors have created strong demand for roll forming machines. These machines are essential for producing metal profiles used in roofing, cladding, framing, guardrails, and more. Whether in Casablanca, Tangier, Agadir, or Marrakech, roll forming technology plays a vital role in shaping the country's industrial output.

In this guide, we’ll explore the most popular types of roll forming machines used in Morocco, the specifications of each, the industries they serve, regions where they are commonly used, the type of maintenance they require, price ranges, local manufacturers, how to set up and operate these machines, and why Machine Matcher is your trusted source for buying the right roll forming machine for your business.

Popular Types of Roll Forming Machines in Morocco

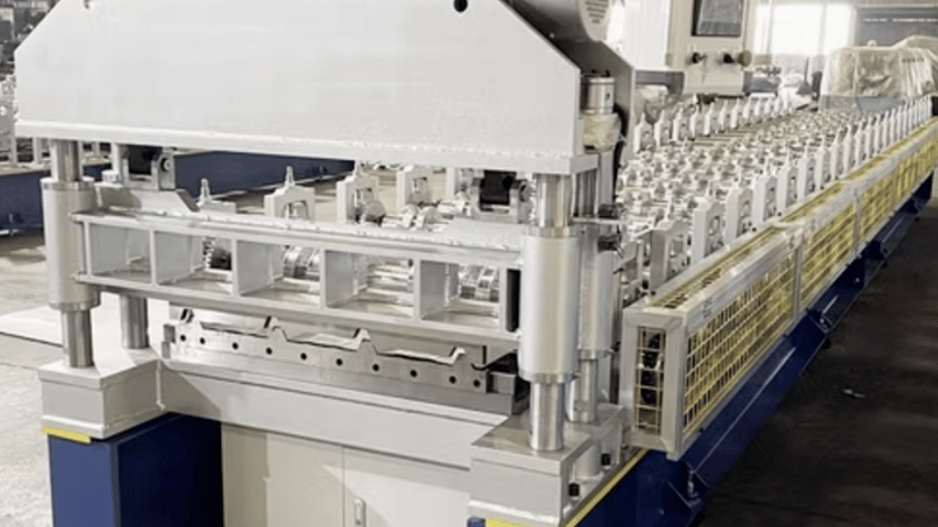

1. Roofing Sheet Roll Forming Machines

Specifications:

• Rollers: GCr15 steel with hard chrome coating

• Motor: 5.5kW to 15kW depending on profile

• Hydraulic Cutting: Yes, with automatic length control

• PLC: Siemens or Delta system

• Speed: 10–15 meters/min (standard), up to 40 meters/min (high-speed models)

Profiles Produced:

• Corrugated roofing sheets

• Trapezoidal profiles

• PBR and R-panel profiles

Industries:
Construction, commercial roofing, residential building materials

Cities Used:
Casablanca, Rabat, Agadir, Fez

2. C/Z Purlin Roll Forming Machines

Specifications:

• Automatic size change from C to Z profile

• Material Thickness: 1.5–3.0mm

• Motor: 18.5kW–30kW

• Roller Stations: 13–20

• Speed: Up to 25 meters/min

Profiles Produced:

• C-purlins, Z-purlins (customizable sizes)

Industries:
Steel building construction, warehouses, structural framing

Cities Used:
Tangier, Kenitra, Meknes

3. Highway Guardrail Roll Forming Machines

Specifications:

• Material Thickness: 2.5–4.0mm

• Punching Station: Hydraulic with mold changes

• Speed: 8–12 meters/min

• Cutting Type: Hydraulic fly cut or stop-to-cut

Profiles Produced:

• W-beam guardrails

• Three-wave guardrails

Industries:
Road infrastructure, transportation, public works

Cities Used:
Casablanca, Marrakech, highways leading to rural areas

4. Door Frame and Steel Door Roll Forming Machines

Specifications:

• Rollers: Hardened alloy steel

• Material Thickness: 0.8–2.0mm

• Punching & Notching: Integrated hydraulic stations

• Speed: 10–15 meters/min

Profiles Produced:

• Jambs, headers, strike plates, thresholds

Industries:
Security doors, fire-rated doors, building interior systems

Cities Used:
Fez, Casablanca, Tangier

5. Drywall Stud and Track Roll Forming Machines

Specifications:

• Material: Galvanized steel, thickness 0.4–0.8mm

• High-Speed Option: 30–40 meters/min

• Servo Motor Cutting: For precision lengths

• PLC: Touch screen with auto length adjustment

Profiles Produced:

• Studs, tracks, furring channels

Industries:
Interior partition systems, commercial and office buildings

Cities Used:
Agadir, Rabat, new urban development zones

Key Industries Using Roll Forming Machines in Morocco

• Construction and Roofing – Residential and commercial structures

• Infrastructure Development – Highways, industrial parks, logistics zones

• Steel Fabrication – Prefabricated buildings and frame suppliers

• Interior Contracting – Drywall contractors, office space builders

• Manufacturing and Assembly – Steel door producers, rack manufacturers

Main Cities and Areas for Roll Forming Machine Use

• Casablanca – Industrial hub, logistics, commercial construction

• Tangier – Automotive, export-oriented manufacturing

• Agadir – New construction, warehouses, tourism infrastructure

• Rabat – Government projects, residential growth

• Marrakech – Tourism, luxury developments, commercial roofing

• Fez & Meknes – Light industry, growing demand for building materials

Maintenance Requirements

To keep roll forming machines running smoothly, regular maintenance is critical:

1. Lubrication:

   • Grease moving parts every 2–3 days of operation

   • Use industrial-grade oil on rollers and drive shafts

2. Roller Inspection:

   • Check for alignment and surface wear monthly

   • Polish rollers to prevent profile scratching

3. Electrical System Check:

   • Test PLCs, inverters, and motors weekly

   • Keep electrical panels dust-free

4. Hydraulic System:

   • Change hydraulic oil every 3–6 months

   • Inspect cylinders, hoses, and seals

5. Cleaning:

   • Clean the entire line at the end of each workday

   • Remove metal chips and debris

Setup and Operation of Roll Forming Machines

Setup Process:

1. Position and level the machine line on the factory floor

2. Connect to power supply (380V, 3-phase standard in Morocco)

3. Install uncoiler and feed coil through rollers

4. Calibrate PLC settings based on profile length and batch size

5. Conduct test run and adjust roller pressure and cut lengths

Operating Steps:

• Load the coil

• Set profile specs via PLC

• Start the line and monitor cutting and profile accuracy

• Regularly check for alignment, feeding consistency, and wear

Price Range: Low to High

• Basic Manual Machines (used or simple profiles):
  $8,000 – $15,000

• Standard PLC-Controlled Machines:
  $20,000 – $40,000

• High-Speed, Fully Automated Lines with Servo Drives:
  $45,000 – $90,000

• Custom Industrial Lines (guardrail, C/Z interchangeable):
  $100,000+

Prices vary based on configuration, brand, motor size, and whether the machine is new or used.

Main Manufacturers and Suppliers in Morocco

While Morocco imports many roll forming machines from Europe, Turkey, and Asia, some regional suppliers and service providers include:

• Local Distributors: Based in Casablanca and Tangier, these suppliers offer installation, training, and spare parts.

• OEM Partners: Morocco often imports from manufacturers in Turkey, China, and Italy.

• Fabrication Workshops: Some machine service centers offer used machine retrofitting and refurbishing.

Frequently Asked Questions (Q&A)

Q: Can I use Moroccan power supply standards with imported machines?
A: Yes, but confirm voltage (380V, 50Hz) compatibility or request step-up/step-down transformers.

Q: Are used roll forming machines a good investment in Morocco?
A: Yes, for small- to mid-scale operations. Ensure the rollers and PLC are still in good working condition.

Q: How long does installation take?
A: A full roll forming line usually takes 2–5 days to install and test.

Q: Can I change the profile shape on one machine?
A: Some machines allow for interchangeable cassettes (especially C/Z purlin lines), but others are fixed-profile.

Q: What is the lifespan of a roll forming machine?
A: With proper maintenance, machines can operate for 10–20 years.
