Most Popular Roll Forming Machines in Gambia

This guide covers the most popular roll forming machines in Gambia: Types, Industries, Costs, and Expert Buying Help

February 8, 2024

Roll forming machines are transforming how Gambian industries produce roofing sheets, wall panels, construction trims, and structural components. With Gambia’s increasing investment in infrastructure and construction—particularly in urban hubs like Banjul, Serekunda, Brikama, and Farafenni—the demand for high-quality roll forming machines has significantly grown. This guide explores the most popular roll forming machines in Gambia, their specifications, applications, maintenance requirements, pricing, key manufacturers, and how Machine Matcher can help you find the perfect machine to match your profile needs.

1. Types of Roll Forming Machines Popular in Gambia

a) Corrugated Roofing Sheet Roll Forming Machines

Specifications:

• Rollers: 18–22 stations, made of GCr15 steel with heat treatment

• Frame: 350–400 H-beam welded structure

• Cutting System: Hydraulic cutting with Cr12 blades

• Speed: 12–20m/min

• Power Supply: 380V, 3 Phase, 50Hz or customized

• PLC: Siemens or Delta control system

Used Profiles:

• Traditional wave-style corrugated sheets

• Sizes: 840mm, 850mm, 900mm cover width

Industries:

• Residential and commercial roofing

• Agricultural shelters

b) IBR Roof Panel Roll Forming Machines

Specifications:

• Roller Stations: 16–24

• Material Thickness: 0.3mm–0.8mm

• Cutting: Hydraulic guillotine, programmable length

• Transmission: Chain or gearbox drive

Used Profiles:

• IBR profile, widely used in African markets

• Sizes: 686mm, 890mm effective width

Industries:

• Roofing for schools, warehouses, housing projects

c) Ridge Cap Roll Forming Machines

Specifications:

• Roller Material: GCr15 steel with hard chrome coating

• Frame: 300 H-beam

• Cutter Type: Flying shear cutting

• PLC: Touch screen for easy input

Used Profiles:

• Roof ridge capping profiles with variations for pitch angles

Industries:

• Roofing accessories for full roof systems

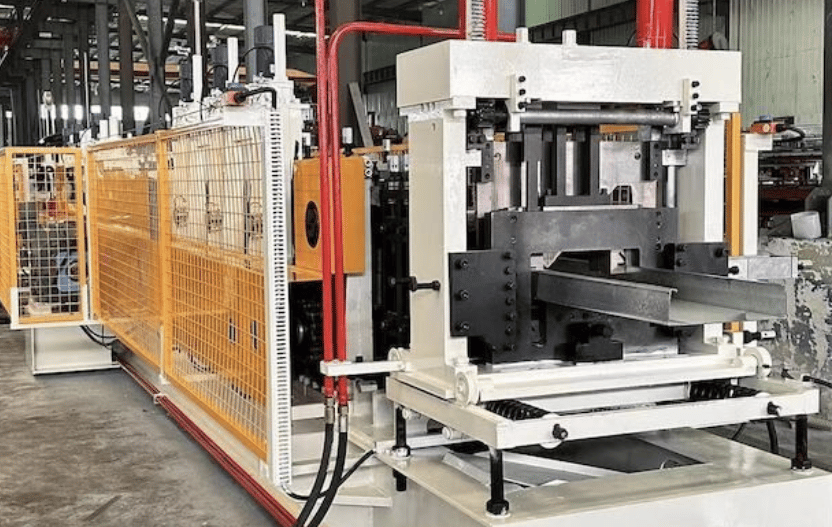

d) C & Z Purlin Roll Forming Machines (Interchangeable)

Specifications:

• Adjustable sizes: 80mm–300mm

• Thickness Range: 1.2mm–3.2mm

• Punching Stations: Optional servo punching

• Changeover: Manual or automatic

Used Profiles:

• C and Z purlins for structural steel framing

Industries:

• Industrial sheds, warehouses, commercial buildings

e) Door Frame Roll Forming Machines

Specifications:

• Roller Stations: 12–18 depending on design

• Material Thickness: 0.8mm–2.0mm

• Servo Notching and Punching System: Optional

• Operating Speed: Up to 20m/min

Used Profiles:

• Door frames, steel door stiles and channels

Industries:

• Commercial and industrial building interiors

2. Main Cities and Regions Using Roll Forming Machines in Gambia

• Banjul – Capital city and a center for government construction and real estate

• Serekunda – Gambia’s largest urban area, major hub for retail, housing, and trade

• Brikama – Known for growing residential neighborhoods and industrial development

• Farafenni – Strategic trade town with cross-border commercial activity

• Bakau and Lamin – Residential and commercial growth driving roofing demand

3. Maintenance of Roll Forming Machines

Regular maintenance is crucial to extend the life and performance of roll forming machines. Key steps include:

• Daily Cleaning: Wipe down rollers and working surfaces

• Lubrication: Apply oil to chains, gearboxes, and moving parts weekly

• Roller Alignment: Check every month to avoid profile distortion

• Hydraulic System: Inspect fluid levels, hoses, and seals every 3 months

• Electrical System: Tighten loose wiring and check PLC functionality

• Blade Sharpening or Replacement: Inspect blades monthly depending on production volume

Proper training and periodic audits ensure safe and efficient operation.

4. Setup and Operation

Setup Process:

1. Install Frame and Leveling – Use precision levels to place the machine on a flat surface

2. Connect Power Supply – Ensure correct voltage and phase

3. Load Coil on Uncoiler – Manual or hydraulic uncoilers depending on size

4. Calibrate Rollers and Profile – Input profile specs in PLC system

5. Test Run – Run short batches to check accuracy

Operation:

• Operator Panel – Use touch screen to set length, quantity, and speed

• Safety Protocols – Always activate emergency stop before adjustments

• Monitoring – Keep an eye on motor temp, noise, and final product quality

• Quality Checks – Measure output profiles regularly for accuracy

5. Pricing of Roll Forming Machines in Gambia

Pricing depends on machine complexity, automation level, and production capacity.

Machine Type	Low-Cost Range (USD)	High-Cost Range (USD)
Corrugated Roofing Machine	$20,000	$45,000
IBR Roll Forming Machine	$22,000	$50,000
Ridge Cap Machine	$15,000	$35,000
C/Z Purlin Machine	$40,000	$90,000
Door Frame Machine	$25,000	$60,000

Note: Prices may vary based on extra features such as automatic stackers, servo punching, or hydraulic decoilers.

6. Main Manufacturers Supplying Gambia

While Gambia does not have local manufacturers of roll forming machines, machines are mainly imported from:

• China – The primary exporter to Gambia, offering cost-effective and customizable solutions

• Turkey – Offers machines with robust steel frames and mid-level automation

• India – Focuses on standard roofing lines with affordable pricing

• Europe – For higher-end solutions with advanced control systems

Most Gambian buyers import directly or via distributors in West Africa, especially from Senegal.

7. Frequently Asked Questions

Q1: Can roll forming machines be customized for Gambian power supply?
A: Yes, machines can be tailored for 380V or 220V, 50Hz depending on your local setup.

Q2: How long does it take to deliver a machine to Gambia?
A: Standard delivery is 45–60 days including manufacturing, sea freight, and customs clearance.

Q3: Do I need skilled labor to operate these machines?
A: Basic operator training is required, and most suppliers offer free training with the machine.

Q4: What are the most popular profiles in Gambia?
A: Corrugated and IBR roof panels are the most common, along with ridge caps and wall cladding panels.

Q5: How do I import a machine safely into Gambia?
A: Work with experienced suppliers who provide export documents, and ensure you have proper clearance agents for customs.

8. Why Machine Matcher Is the Best Partner for Buyers in Gambia

Machine Matcher helps you source the right roll forming machine for your business in Gambia by:

• Matching Your Profile Needs: Whether you need corrugated sheets, IBR panels, or steel trims, we help find machines suited to your required profiles and gauges.

• Expert Consultation: Our experts guide you through power setup, sizing, automation, and profile designs.

• New and Used Options: Choose from a wide inventory of both brand-new and pre-owned roll forming machines.

• Reliable Suppliers: We only work with vetted manufacturers who meet international standards.

• Shipping and Delivery Support: From factory to your door in Banjul, Brikama, or Farafenni—we handle everything.

• After-Sales Support: Installation guides, remote training, spare parts, and technical help.
