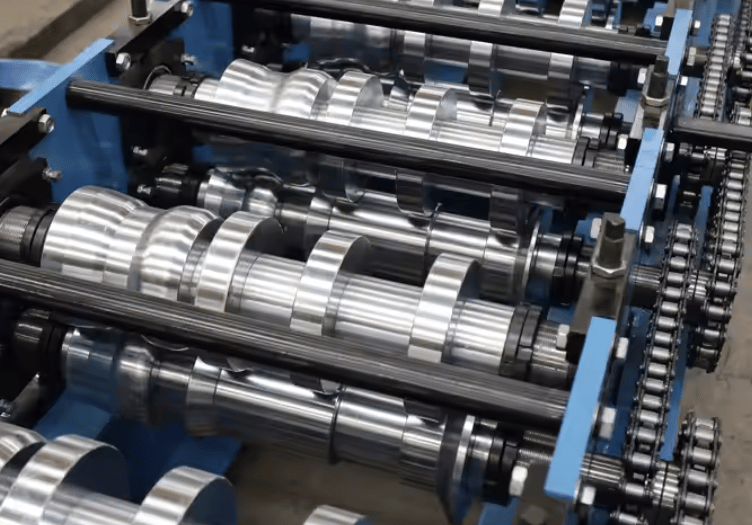

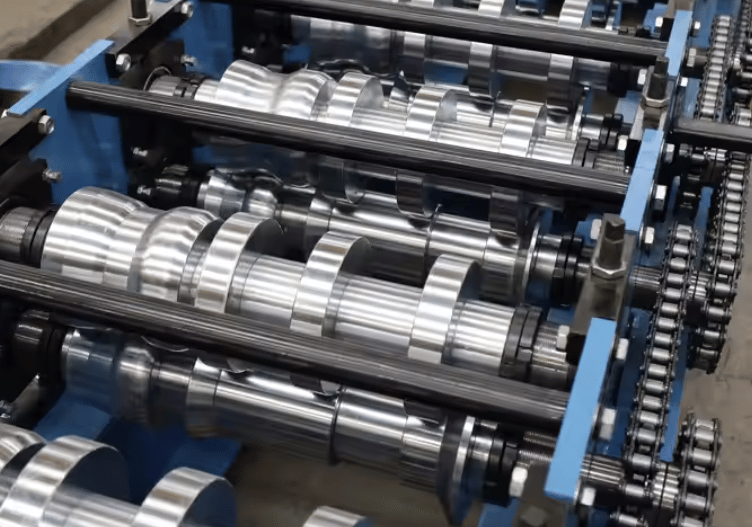

Most Popular Roll Forming Machines in Lebanon

Lebanon’s growing construction, infrastructure, and manufacturing sectors have led to increased demand for high-quality roll forming machines. These machines are essential for producing profiles used in roofing, wall panels, structural elements, and more. This blog explores the most popular roll forming machines in Lebanon, their specifications, profile applications, industries that use them, main areas where these machines are deployed, typical maintenance requirements, and pricing. Additionally, this guide includes troubleshooting tips, benefits, limitations, and a Q&A section.

We will also explain how Machine Matcher can assist in finding the ideal roll forming machine that meets your profile requirements while ensuring quality, affordability, and seamless inspections.

Types of Roll Forming Machines Popular in Lebanon

1. Roofing Panel Roll Forming Machines

• Specifications:

  • Roller Materials: High-strength steel or chrome-coated rollers.

  • Frame Size: 300-400 mm H-beam steel frame.

  • Motors: 5-7.5 kW depending on the machine size.

  • Cutting System: Hydraulic cutting with 5-10 MPa pressure.

  • Speed: 10-20 m/min (can vary based on model).

  • PLC System: Fully automated with touch screen control.

• Profiles Produced: Corrugated sheets, trapezoidal roofing panels, and standing seam panels.

• Industries Using These Machines: Construction, real estate, and steel fabrication.

• Main Cities Using These Machines: Beirut, Tripoli, Sidon, and Zahle.

2. C/Z Purlin Roll Forming Machines

• Specifications:

  • Roller Materials: GCr15 steel with heat treatment.

  • Frame: Welded steel with reinforced structure.

  • Punching and Notching: Hydraulic punching and cutting system.

  • Motors: 11-15 kW for heavy-duty production.

  • PLC Control System: Integrated with Siemens or Mitsubishi systems.

• Profiles Produced: C and Z-shaped purlins for roof and wall structures.

• Industries Using These Machines: Construction, infrastructure, and industrial warehousing.

• Main Cities Using These Machines: Beirut, Jounieh, Zahle, and Nabatieh.

3. Decking Roll Forming Machines

• Specifications:

  • Roller Materials: Carbon steel with heat treatment.

  • Frame Size: 400 mm H-beam or stronger.

  • Motor Power: 7.5-11 kW motor.

  • Cutting System: Hydraulic guillotine.

  • Speed: 12-15 m/min.

  • PLC Control: Automated with a touchscreen HMI.

• Profiles Produced: Floor decking profiles for multi-story buildings.

• Industries Using These Machines: Construction, commercial building projects, and infrastructure.

• Main Cities Using These Machines: Beirut, Tripoli, Baalbek, and Byblos.

4. Highway Guardrail Roll Forming Machines

• Specifications:

  • Roller Material: High-strength alloy steel.

  • Frame Size: Heavy-duty welded frame with 450 mm thickness.

  • Motor: 18-22 kW, depending on production capacity.

  • Punching and Notching: Hydraulic press system.

  • Speed: 10-12 m/min.

• Profiles Produced: W-beam and thrie-beam guardrails.

• Industries Using These Machines: Road safety and infrastructure projects.

• Main Cities Using These Machines: Beirut, Tripoli, Zahle, and Jounieh.

5. Door Frame and Window Frame Roll Forming Machines

• Specifications:

  • Roller Materials: High-strength carbon steel with precision grinding.

  • Frame Size: 350 mm reinforced steel frame.

  • Motor: 5-7.5 kW servo motor.

  • Punching: Hydraulic punching system.

  • Cutting System: Flying saw or hydraulic cutter.

• Profiles Produced: Metal door and window frames for residential and commercial projects.

• Industries Using These Machines: Building and renovation industry.

• Main Cities Using These Machines: Beirut, Tyre, Sidon, and Jbeil.

Typical Maintenance for Roll Forming Machines

To ensure consistent performance and longevity, regular maintenance is essential for roll forming machines in Lebanon. Maintenance tasks include:

• Daily: Clean and lubricate the rollers and cutting system.

• Weekly: Check for loose bolts, ensure oil levels in the hydraulic system, and inspect the electric panel.

• Monthly: Grease all moving parts, inspect the chain drive system, and examine gear conditions.

• Yearly: Full inspection of the hydraulic pump, motor efficiency, and PLC system.

Price Range of Roll Forming Machines Internationally

The international price for roll forming machines depends on the machine type, size, and specifications.

• Roofing Panel Roll Forming Machines: $15,000 - $50,000

• C/Z Purlin Roll Forming Machines: $20,000 - $80,000

• Decking Roll Forming Machines: $25,000 - $70,000

• Highway Guardrail Roll Forming Machines: $50,000 - $120,000

• Door/Window Frame Roll Forming Machines: $10,000 - $40,000

Main Manufacturers of Roll Forming Machines in Lebanon

While Lebanon does not have a large base of domestic manufacturers for roll forming machines, most machines are imported from:

• China: Known for cost-effective and durable roll forming machines.

• Turkey: Offers high-quality machines with advanced technology.

• Italy: Provides specialized and high-end roll forming machines.

• Germany: Supplies premium machines with superior automation and durability.

Setup and Operation of Roll Forming Machines

Setup Process:

1. Foundation Preparation: Ensure a level, vibration-free foundation.

2. Machine Installation: Securely bolt the machine to the foundation.

3. Electrical Connection: Connect the machine to the appropriate power supply.

4. Hydraulic System Setup: Fill the hydraulic tank with oil and check pressure levels.

Operation Process:

• Load the steel coil onto the uncoiler.

• Feed the material through the roller stations.

• Adjust the roller gaps to ensure profile precision.

• Monitor the cutting system and ensure precise cuts.

• Inspect finished profiles for quality assurance.

How Machine Matcher Can Help You Buy the Right Roll Forming Machine

Machine Matcher provides expert assistance in sourcing, inspecting, and purchasing roll forming machines that match your profile requirements. Our services include:

• Profile Analysis: We analyze your profile specifications to recommend the most suitable machine.

• Pre-Purchase Inspection: We conduct detailed inspections to ensure the machine meets international quality standards.

• Vendor Verification: We work with trusted manufacturers to guarantee quality and performance.

• Logistics and Delivery Support: We handle all aspects of shipping and delivery to Lebanon.

• After-Sales Service: We provide technical assistance and maintenance tips post-installation.

Contact Machine Matcher

Speak to one of our roll forming machine experts today:

• UK: +44 20 335 56554

• USA: +1 407 559 7948

• Europe: +32 460 24 13 95

• WhatsApp: +44 20 335 56554

• Email: [email protected]

Typical Applications of Roll Forming Machines

• Construction Industry: Roofing, wall panels, and purlins.

• Infrastructure Projects: Highway guardrails and structural beams.

• Building Renovations: Metal door and window frames.

• Commercial Projects: Floor decking systems.

Troubleshooting Issues with Roll Forming Machines

1. Inconsistent Profile Dimensions: Check roller alignment and hydraulic pressure.

2. Material Jamming: Ensure material feed is smooth and rollers are clean.

3. Cutting Misalignment: Calibrate the cutting system and inspect the PLC.

4. Hydraulic System Failure: Check for leaks, change oil, and test pump efficiency.

Limitations of Roll Forming Machines

• High Initial Investment: Advanced models can be expensive.

• Profile Flexibility: Not all machines can adapt to changing profile designs.

• Complex Setup: Requires technical expertise to set up and operate.

Benefits of Roll Forming Machines

• High Production Efficiency: Consistent and precise output with minimal waste.

• Customization Options: Can produce profiles in various shapes and sizes.

• Durability and Longevity: Machines built with high-grade materials have a longer lifespan.

Installation and Commissioning of Roll Forming Machines

• Site Inspection: Evaluate the site for adequate space and power supply.

• Machine Alignment: Ensure rollers, cutters, and other components are aligned correctly.

• Trial Runs: Perform trial runs to confirm profile accuracy.

• Operator Training: Provide training on PLC operation and maintenance.

Design Standards for Roll Forming Machines

• ISO 9001: Ensures quality management in machine manufacturing.

• CE Certification: Compliance with European safety and quality standards.

• ASTM Standards: Specifies tolerances and quality benchmarks for profile production.

By choosing Machine Matcher, you gain access to expert guidance, high-quality machines, and reliable after-sales support to meet your roll forming needs in Lebanon.
