Most Popular Roll Forming Machines in Libya

This guide covers the most popular roll forming machines in Libya: Types, Industries, Costs, and Expert Buying Help

Libya’s growing construction, roofing, infrastructure, and steel industries have seen a sharp rise in demand for efficient, high-performance roll forming machines. These machines are crucial for producing steel profiles used in roofing, wall cladding, framing systems, fencing, and more. Whether you're in Tripoli, Benghazi, Misrata, or Sabha, the right roll forming equipment can elevate your production quality, reduce waste, and expand your business opportunities.

This article covers the most popular roll forming machines used in Libya, their specifications, applications by industry, regional usage trends, setup, maintenance, pricing, and why Machine Matcher is your best partner when sourcing new or used machines.

Most Popular Types of Roll Forming Machines in Libya

1. Corrugated Sheet Roll Forming Machines

Specifications:

  • Roller Material: GCr15 steel with chrome plating

  • Roll Stations: 16–24 stations

  • Motor Power: 5.5kW to 11kW

  • Forming Speed: 10–15m/min

  • Cutting System: Hydraulic, automatic stop and cut

  • Control System: PLC (Mitsubishi/Siemens)

Profiles Used:

  • Corrugated sheets (wavy profile)

  • Common material thickness: 0.3mm–0.7mm

Industries:

  • Roofing

  • Cladding

  • Agricultural buildings

  • Warehouse construction

Regions:

  • High demand in Tripoli, Misrata, and Benghazi

2. Trapezoidal Roofing Panel Machines

Specifications:

  • Roller Material: High-grade steel, hardened and coated

  • Roll Stations: 16–22 stations

  • Motor Power: 7.5kW–15kW

  • Speed: Up to 20m/min

  • Cutting System: Hydraulic post-cutting with auto length control

Profiles Used:

  • Trapezoidal panels (commonly used in PEB structures)

  • Material thickness: 0.4mm–0.8mm

Industries:

  • Steel buildings

  • Residential and industrial roofing

  • Export panel production

Regions:

  • Common in Benghazi, Ajdabiya, and oilfield infrastructure hubs

3. C and Z Purlin Roll Forming Machines

Specifications:

  • Roller Stations: 12–20 stations

  • Change System: Automatic size change (for advanced lines)

  • Material Thickness: 1.5mm–3.0mm

  • Power: 15–30kW

  • Speed: 10–20m/min

Profiles Used:

  • C purlin

  • Z purlin (for structural supports)

Industries:

  • Steel structure building

  • Prefabricated houses

  • Greenhouses

Regions:

  • Widely used in Sabha, Al Khums, and industrial construction zones

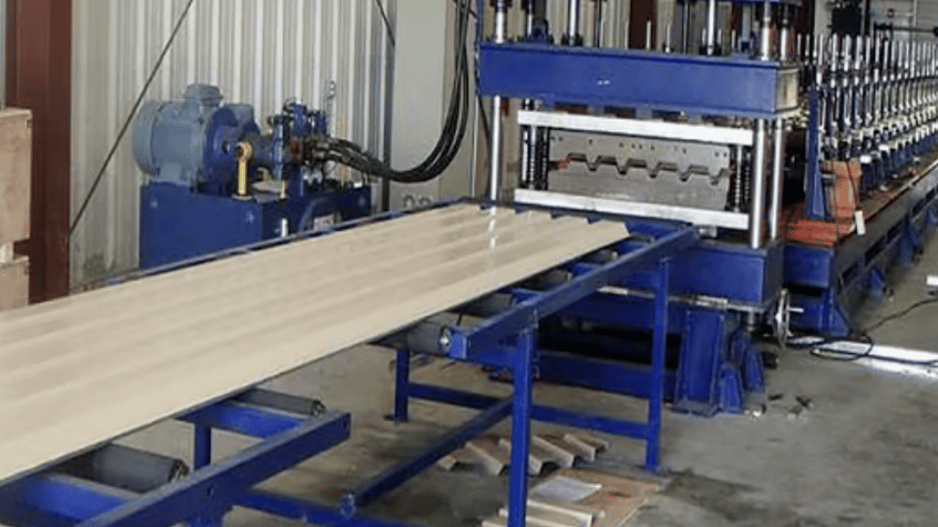

4. Floor Deck Roll Forming Machines

Specifications:

  • Rollers: 28–32 stations

  • Thickness: 0.8mm–1.5mm

  • Power: 22kW–30kW

  • Speed: 10–12m/min

  • Control System: Fully automatic PLC

Profiles Used:

  • Composite deck profiles with embossing for concrete bonding

Industries:

  • High-rise building construction

  • Commercial floor systems

Regions:

  • Construction sites in Tripoli, Misrata, and Tobruk

5. Rainwater Gutter and Downspout Machines

Specifications:

  • Material: Aluminum, galvanized, or color-coated steel

  • Motor: 3kW–7.5kW

  • Speed: 8–12m/min

  • Cutting: Servo-controlled for precision lengths

Profiles Used:

  • Half-round gutter

  • Box-style downpipe

  • Rectangular downspout

Industries:

  • Residential and commercial roofing

  • Gutter system suppliers

Regions:

  • Growing popularity in suburban areas and villa developments near Tripoli and Derna

Maintenance Requirements for Roll Forming Machines

To ensure long service life and consistent output quality, operators in Libya should follow a routine maintenance schedule:

  • Daily: Clean rollers, check electrical connections, inspect hydraulic levels

  • Weekly: Lubricate chains and gears, clean sensors, inspect alignment

  • Monthly: Check hydraulic seals, re-calibrate length sensors, inspect control cabinet

  • Annually: Replace worn rollers, service hydraulic pumps, upgrade PLC software if needed

Well-maintained machines can run reliably for over a decade.

Main Manufacturers and Suppliers in Libya

While Libya has some local machine resellers, most roll forming machines are imported. The key suppliers include:

  • Chinese roll forming machine manufacturers (widely popular for affordability)

  • Turkish manufacturers (for mid-range performance machines)

  • European and Indian brands (for advanced automation)

These machines are often imported through Benghazi Port, Tripoli Port, and Misrata Free Zone.

Setup and Operation Process

Setting up a roll forming machine includes:

  1. Unpacking and base installation on a level factory floor

  2. Aligning the machine frame

  3. Connecting electrical and hydraulic systems to local standards (380V/50Hz is common in Libya)

  4. Running test coils and calibrating profile sizes

  5. Training staff on operation via the HMI (Human-Machine Interface)

Machine operation is PLC-controlled, allowing the operator to enter length and quantity and monitor the process digitally.

Pricing: Low-End to High-End Machine Costs in Libya

The cost of roll forming machines in Libya varies by complexity and features:

  • Low-end (manual/basic machines): $12,000–$25,000

  • Mid-range (semi-automatic systems): $25,000–$45,000

  • High-end (fully automatic lines): $50,000–$120,000+

C/Z purlin lines and floor deck machines are typically at the higher end, while simple corrugated machines are more budget-friendly.

Most Active Cities and Areas for Roll Forming Machines in Libya

  • Tripoli: The largest demand center for all types of machines

  • Misrata: A growing industrial hub with many steel fabricators

  • Benghazi: A stronghold for infrastructure and roofing projects

  • Sabha and Al Khums: Regions involved in structural and prefabricated buildings

  • Ajdabiya and Derna: Increasing roll forming adoption in oil-related construction

Why Machine Matcher is the Best Choice for Buyers in Libya

At Machine Matcher, we connect buyers in Libya with high-quality new and used roll forming machines tailored to your exact profile needs. Whether you're producing trapezoidal panels for roofing or structural purlins for prefabricated buildings, our experts help you find the most cost-effective and efficient machine on the global market.

We support:

  • Custom profile matching

  • Profile sketch reviews

  • Power supply adaptation

  • Shipping support to Libya

  • After-sales and maintenance guidance

Our global reach ensures you get reliable machines from vetted suppliers, at the best price, delivered to your facility in Libya with complete documentation and training support.

Questions and Answers

Q: Can I buy a used roll forming machine for Libya?
A: Yes. Machine Matcher can help you source reliable used roll forming machines that have been inspected, refurbished, and matched to your production needs.

Q: How long does delivery to Libya take?
A: Delivery typically takes 4–6 weeks by sea freight, depending on the port and documentation requirements.

Q: What profile drawings do I need to send for a quote?
A: You’ll need to share the profile sketch or dimensions (in mm), coil material, thickness, and quantity requirements.

Q: What power supply is used in Libya for these machines?
A: Most machines use 380V/50Hz 3-phase power. Machine Matcher will confirm compatibility before shipping.

Q: Can I get training in Libya?
A: Yes. We offer remote setup guidance and can arrange on-site technician support upon request.
