Roll Forming Machine Operation Manual

1. Introduction

• Purpose: This manual provides step-by-step instructions on safely operating the roll forming machine. It is essential for operators, technicians, and maintenance personnel to understand the machine’s operation, safety guidelines, and troubleshooting.
• Overview of Machine: Briefly describe what a roll forming machine is, its key components (uncoiler, rollers, cutter, etc.), and its application in forming metal into desired profiles like C/Z purlins, decking panels, etc.

2. Safety Precautions

• Personal Protective Equipment (PPE):
  • Safety glasses, gloves, and steel-toed boots are mandatory.
  • Hearing protection is required if noise levels exceed safety limits.
• Emergency Procedures:
  • Know the location of the emergency stop button.
  • Familiarize yourself with fire exits and first-aid kits.
  • Always have a safety monitor when operating the machine.
• Pre-Operational Checklist:
  • Inspect the machine for any visible damage.
  • Ensure all guards and safety covers are in place.
  • Check that the work area is clean and free of obstructions.

3. Machine Components Overview

• Uncoiler/Decoiler:
  • Holds the metal coil and feeds it into the machine.

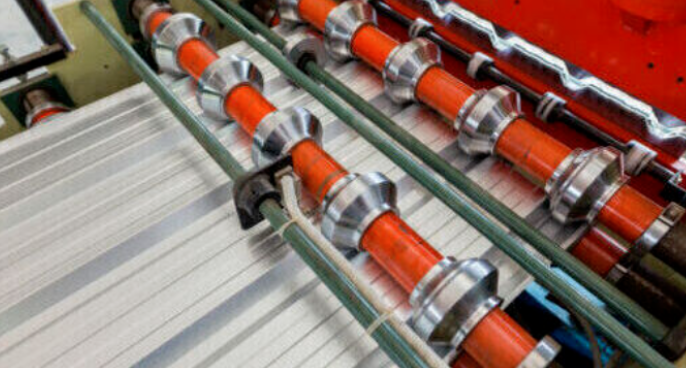

• Rollers:
  • Rollers shape the metal into the desired profile as it passes through the machine.
• Cutting System:
  • Automatic or manual cutting mechanism that trims the material to length.
• Runout Table:
  • Receives the formed product as it exits the machine.

4. Operating Instructions

Step 1: Machine Setup

1. Loading the Coil:
   • Secure the coil on the uncoiler and ensure it’s centered.
   • Adjust the tension arm and make sure the coil unwinds smoothly.
2. Feeding the Material:
   • Guide the leading edge of the metal sheet into the first roller.
   • Adjust guide rollers to ensure proper alignment.
3. Adjusting the Machine:
   • Set the required profile and width by adjusting the rollers and other settings.
   • Check the machine’s settings for thickness and length.
   • Ensure the correct cutting length is programmed.

Step 2: Starting the Machine

1. Pre-Run Inspection:
   • Double-check that the material is aligned.
   • Confirm that all machine settings are correct.
2. Run a Test Strip:
   • Start the machine and run a short test strip to ensure the product meets specifications.
   • Inspect the test piece for accuracy in width, thickness, and length.
3. Production Run:
   • Once confirmed, start the machine for continuous operation.
   • Monitor the machine for any issues like material jams or misalignment.
   • Adjust speed as needed based on material type and thickness.

5. Post-Operation Procedures

1. Shutting Down the Machine:
   • Gradually reduce the machine speed and stop feeding material.
   • Turn off the main power supply.
   • Clean the rollers and other parts to prevent material build-up.
2. Maintenance:
   • Regularly lubricate moving parts.
   • Check for wear and tear on the rollers and replace them if necessary.
   • Inspect electrical connections and hydraulic systems for leaks or damage.

6. Troubleshooting

• Material Jam: Check the alignment and roller spacing.
• Inconsistent Profile: Adjust roller pressure and ensure proper material feeding.
• Machine Not Starting: Verify electrical connections and check emergency stop settings.
• Cut Length Error: Ensure the cutter is calibrated correctly.

7. Maintenance Schedule

• Daily: Clean and inspect the machine for any debris or issues.
• Weekly: Lubricate key components and check for signs of wear.
• Monthly: Perform a thorough inspection of all mechanical and electrical parts.

8. Emergency Procedures

• In case of a machine malfunction or emergency:
  • Immediately press the emergency stop button.
  • Disconnect power from the machine.
  • Notify a supervisor or maintenance personnel.

9. Appendices

• Appendix A: Machine Specifications
  • Include model-specific details like voltage, power consumption, maximum coil size, etc.
• Appendix B: Contact Information
  • Provide contact information for technical support or spare parts.

By following this structure, you'll cover all essential aspects needed for safe and efficient operation of a roll forming machine.
