Roll Forming Machine Tolerances Issues

Here are some common tolerance issues in roll forming machines, their potential causes, and solutions to address them:

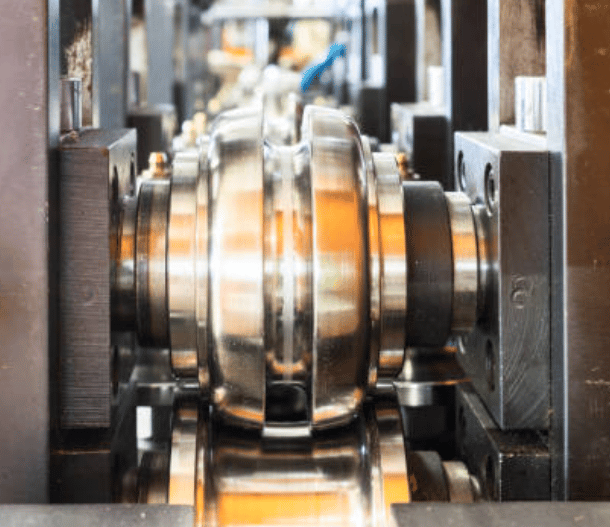

Roll forming machines are designed to produce consistent and precise profiles, but sometimes tolerance issues can arise. These issues may occur due to various factors that affect the quality and accuracy of the final product. Here are some common tolerance issues in roll forming machines, their potential causes, and solutions to address them:

1. Material Variations

  • Issue: Variations in the material thickness, hardness, or quality can lead to inconsistent profile dimensions.
  • Cause: If the material being fed into the machine is not uniform, it may cause the rolls to apply uneven pressure, affecting the final dimensions.
  • Solution: Ensure consistent material quality by working with reliable suppliers and using materials that meet required specifications. Regularly inspect and measure incoming coils for uniformity.

2. Tooling Wear

  • Issue: Over time, the tooling (rolls, dies, etc.) in a roll forming machine may wear down, leading to inconsistent product dimensions.
  • Cause: Continuous use of tooling without maintenance or replacement can lead to wear, which affects the forming process.
  • Solution: Regularly inspect and maintain tooling. Replace worn or damaged tooling to ensure the machine maintains tight tolerances.

3. Misalignment of Rolls

  • Issue: Misaligned rolls can lead to uneven forming, resulting in profiles that deviate from the specified tolerances.
  • Cause: Improper setup, incorrect roll positioning, or machine movement can cause roll misalignment.
  • Solution: Regularly check the alignment of the rolls during machine setup and adjust as necessary. Use precision alignment tools to ensure rolls are positioned correctly.

4. Inconsistent Roll Pressure

  • Issue: If the pressure applied by the rolls is not uniform across the entire profile, it can lead to inconsistencies in the final product.
  • Cause: Variations in roll pressure may be due to machine calibration issues or worn-out components like bearings or shafts.
  • Solution: Calibrate the machine to ensure even pressure is applied throughout the roll forming process. Replace or repair any components that may affect pressure consistency.

5. Improper Machine Setup

  • Issue: Incorrect setup of the roll forming machine can lead to tolerance issues, particularly if the machine is not configured correctly for the specific material or profile being produced.
  • Cause: Setting incorrect gap distances between the rolls or not accounting for material springback can affect accuracy.
  • Solution: Follow the manufacturer’s guidelines for machine setup, paying close attention to roll gap settings and material properties. Make test runs and fine-tune the setup if necessary.

6. Thermal Expansion

  • Issue: Heat generated during the roll forming process can cause expansion of the rolls, leading to dimensional variations in the final product.
  • Cause: Continuous operation without cooling or material with high friction can lead to heat buildup in the tooling.
  • Solution: Implement cooling systems or use lubricants to minimize heat buildup. Monitor temperature closely, especially during extended production runs.

7. Backlash in Drive System

  • Issue: Backlash in the drive system can lead to uneven or erratic movement of the rolls, affecting the profile's dimensions.
  • Cause: Worn gears, chains, or belts in the drive system can cause backlash, leading to inconsistent roll speed and product dimensions.
  • Solution: Regularly inspect and maintain the drive system. Replace worn components to ensure smooth and consistent operation.

8. Material Springback

  • Issue: After the material passes through the rolls, it may spring back slightly, leading to dimensional inaccuracies.
  • Cause: Material properties such as elasticity can cause springback after forming.
  • Solution: Account for material springback in the machine setup and tooling design. Adjust the roll gaps or use post-processing methods to correct any springback effects.

9. Vibration and Machine Stability

  • Issue: Excessive machine vibration or instability can lead to deviations in product dimensions.
  • Cause: Poor machine foundation, worn bearings, or excessive roll speed may cause vibrations.
  • Solution: Ensure the machine is mounted on a stable foundation, and regularly check bearings and other components for wear. Adjust roll speeds to avoid vibrations.

10. Inadequate Lubrication

  • Issue: Lack of proper lubrication can cause increased friction, leading to inconsistent forming and potential surface defects.
  • Cause: Friction between the material and the rolls can cause overheating or increased wear on the tooling.
  • Solution: Use appropriate lubricants for the material and regularly apply lubrication to reduce friction and ensure smooth forming.

Addressing these tolerance issues often involves a combination of proper machine maintenance, correct setup, and high-quality materials. Regular inspections, precise calibration, and preventative maintenance can go a long way in ensuring the roll forming machine produces profiles within tight tolerances.
