9/16" steel form deck roll forming machine profile

A 9/16" steel form deck roll forming machine typically produces a profile designed for concrete slab support in construction projects. The profile includes deep corrugations to increase the bond between the concrete and the deck, providing reinforcement.

The key features of a 9/16" steel form deck profile might include:

Depth: 9/16" depth of the deck (which is the height of the corrugations).
Ribs: Corrugated patterns that enhance the strength and rigidity of the deck.
Width: The panels are often designed to be 24 to 36 inches wide, allowing for large coverage.
Gauge: Typically made from steel with a gauge ranging from 22 to 16, depending on the load requirements.
Embossments: Some profiles feature embossments to improve the bonding between the steel deck and the concrete poured over it.

The typical profile for a 9/16" steel form deck roll forming machine includes the following features:

Depth: The deck's depth is 9/16", measured from the top of the rib to the bottom of the valley.
Ribs: The profile consists of evenly spaced ribs and valleys. The ribs usually have a trapezoidal shape, providing structural integrity. The height of the ribs is 9/16".
Rib Spacing: The ribs are spaced apart at regular intervals (usually around 6" to 12") to create a uniform pattern. This spacing helps distribute loads across the deck.
Rib Width: The width of each rib is typically around 1.5 to 2 inches at the base, tapering slightly towards the top to allow for strength and material economy.
Valleys: The flat sections between the ribs are called valleys. These are typically about 3 to 5 inches wide, and they provide the base for concrete to rest on.
Embossments: Some profiles include small indentations (embossments) along the ribs or valleys. These embossments help the concrete bond with the steel deck, increasing shear strength.
Edge Lap: One side of the profile usually includes an overhang or lap area to allow adjacent panels to overlap and connect securely, ensuring a continuous and tight fit across the surface.

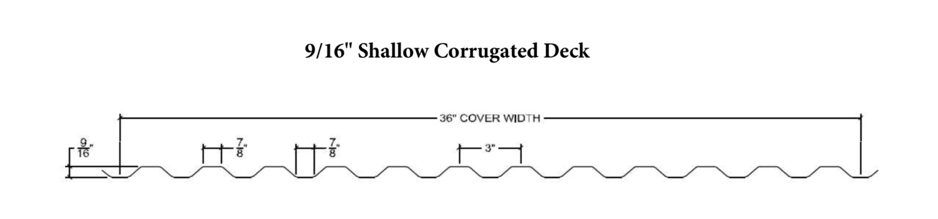

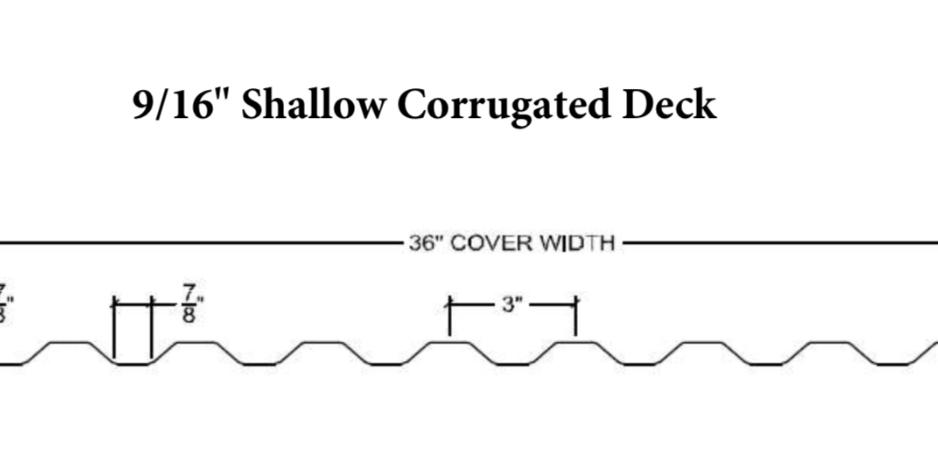

Here is a rough sketch description of the profile:

Top Width (across ribs): Total width of the panel (could range from 24" to 36").
Rib Height: 9/16".
Valley Width: Around 3" to 5".
Rib Base Width: 1.5" to 2".

This design allows for fast, efficient installation in structural decking projects, and the shape ensures optimal load distribution for both dead weight and live loads.

When customizing a 9/16" steel form deck roll forming machine profile, you can consider various aspects of the profile, material choices, and specific project requirements. Here are some key customizations and material considerations:

1. Gauge Thickness

Common Gauges: Form deck profiles are typically available in steel gauges ranging from 22 gauge (thinner, lighter) to 16 gauge (thicker, stronger). The gauge choice depends on the load requirements, with thicker gauges being used for higher load-bearing applications.
Customization: Thinner gauges like 22 may be preferable for lighter applications, while 16 gauge provides additional strength for heavy-duty use. Choosing the right gauge ensures your deck meets specific structural requirements.

2. Materials

Galvanized Steel: Most form deck profiles are made from galvanized steel (coated with zinc), which provides enhanced corrosion resistance. The coating is measured in ounces of zinc per square foot. For example, G60 or G90 are common grades, with G90 offering better corrosion protection.
Bare Steel: For projects where cost is a primary concern and the structure won't be exposed to moisture, bare steel can be a more economical choice.
Stainless Steel: In projects where rust and corrosion are a significant risk (such as coastal environments), stainless steel might be selected for its superior durability, although it comes at a higher cost.

3. Coatings

Galvanized Coating: The most common coating is a galvanized (zinc) finish, which protects the steel from corrosion. G60 and G90 refer to the thickness of the zinc coating, with G90 being thicker and more durable.
Painted Coating: If aesthetics or additional corrosion protection is required, you can opt for pre-painted steel. This finish is more often used for exposed applications.
Anodized or Powder Coating: If you want to add durability and aesthetic customization, you might consider anodized or powder-coated finishes.

4. Embossments

Purpose: Embossments increase the bond between the concrete and the deck. They can be strategically placed in the ribs or valleys of the profile. The size, shape, and pattern of embossments can be customized to maximize shear strength and deck-concrete adhesion.
Customization: Depending on the project’s requirements, embossments can be altered to achieve different bonding characteristics.

5. Profile Design

Rib Shape: The shape of the ribs can be modified to enhance the structural integrity of the deck. A trapezoidal shape is most common, but depending on the specific project, curved or angular ribs might be more suitable.
Valley Width: Increasing or decreasing the width of the valleys can influence the overall weight of the deck and the amount of concrete it can hold.
Edge Lap: Some custom decks have unique interlocking edges or laps to enhance the connection between adjacent panels. This ensures that the deck provides a continuous and robust surface without gaps or weaknesses.

6. Additional Design Considerations

Fire Rating: Some projects may require a fire-rated deck, which means using materials and coatings that comply with fire resistance standards.
Span Capabilities: Based on the load-bearing needs of your project, the profile can be optimized to achieve longer spans without intermediate supports. Deeper ribs and stronger gauge materials can help with this.
Sound and Insulation: You can add acoustic insulation layers to reduce noise in certain applications or improve thermal performance by combining the deck with insulated panels.

7. Custom Lengths and Panel Sizes

Length: Panels can be cut to specific lengths to minimize on-site cutting, which speeds up installation.
Width: While standard widths range from 24" to 36", you can customize the width of each panel depending on the construction layout.

By considering these factors, you can tailor the roll forming machine to produce 9/16" form deck profiles that are optimized for specific structural and environmental needs.
