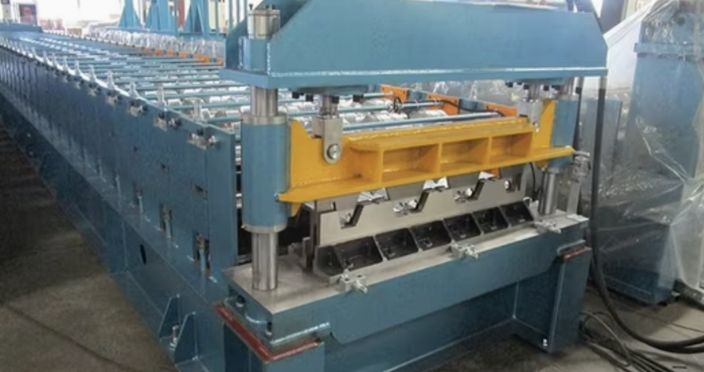

Comprehensive Guide to the 2” Form Deck Roll Forming Machine

We delve into the detailed specifications, features, and benefits of the 2” Form Deck Roll Forming Machine

The 2” Form Deck Roll Forming Machine is engineered to produce high-quality form deck panels used extensively in construction for reinforcing concrete structures. This robust and reliable machine is designed to handle demanding production environments, offering precision, efficiency, and durability. Its advanced automation and customization features ensure seamless operation while delivering consistent product quality.

Machine Specifications

  • Roller Materials: Hardened steel rollers with chrome plating for extended durability and precision.
  • Punching and Notching: Equipped with hydraulic or servo-driven punching and notching systems for accurate perforations and cuts.
  • Servo Motors: High-torque servo motors ensure smooth operation and precise control.
  • Hydraulic Cutting Systems: Utilizes high-pressure hydraulic systems for clean and burr-free cutting.
  • Frame Size: Sturdy steel frame with dimensions customizable based on production requirements.
  • Motors: High-efficiency electric motors with variable speed control.
  • PLC System: Integrated PLC (Programmable Logic Controller) system for easy operation and automation.
  • Machine Speed: Production speeds of up to 30 meters per minute, depending on material and profile specifications.
  • Safety Guards and Enclosures: Fully enclosed with safety interlocks to ensure operator protection and compliance with international safety standards.

Profile Description

  • Materials: Steel (galvanized, stainless, or pre-coated).
  • Sizes: Widths ranging from 300mm to 900mm, customizable based on project needs.
  • Material Gauge: Typically supports gauges between 0.8mm and 1.5mm.
  • Market Size: Widely used in the construction industry, especially in large-scale commercial and industrial building projects.
  • Industries That Use This Profile: Construction, infrastructure, and building materials manufacturing.
  • Popular Countries:
    • United States: High demand due to extensive construction projects.
    • India: Rapid urbanization and infrastructure development.
    • Germany: Stringent quality standards and advanced construction techniques.
    • UAE: Growth in high-rise and commercial building projects.

Extras Available with the Machine

  • Stackers: Automated stacking systems for efficient handling of finished products.
  • Remote PLC Systems: Enable remote monitoring and troubleshooting.
  • Coil Car Tippers: Simplify loading of heavy coils onto the uncoiler.
  • Uncoilers and Recoilers: Handle raw material feeding and recoiling of finished profiles.
  • Automatic Stackers: Enhance operational efficiency with automated stacking and packaging.
  • Leveling System: Ensures flat and even material feeding.
  • Coil Handling Systems: Comprehensive solutions for managing and transporting coils.

Machine Pricing

  • Low-End Models: Starting at $50,000, suitable for small-scale production with basic features.
  • Mid-Range Models: Ranging from $75,000 to $100,000, offering better automation and production speed.
  • High-End Models: $150,000 and above, with advanced features like high-speed production, multi-profile capability, and extensive customization.

Setup and Installation

  1. Site Preparation: Ensure a level and stable foundation with adequate space for operation and maintenance.
  2. Machine Assembly: Assemble components as per the manufacturer’s guidelines.
  3. Electrical and Hydraulic Connections: Connect power supply and hydraulic systems.
  4. Calibration and Testing: Perform calibration to ensure precise profile production.
  5. Training: Provide operator training for efficient and safe usage.

Maintenance

  • Daily Maintenance: Clean the rollers and check for wear.
  • Weekly Checks: Inspect hydraulic systems, lubricate moving parts, and test safety systems.
  • Monthly Maintenance: Check alignment, replace worn components, and update PLC firmware if necessary.

Questions and Answers

Q1. Can this machine handle different material gauges?
A1. Yes, the machine supports a range of gauges from 0.8mm to 1.5mm. Customization is available for other thicknesses.

Q2. How long does it take to install the machine?
A2. Installation typically takes 3-5 days, depending on site readiness and complexity.

Q3. What safety features are included?
A3. The machine is equipped with safety guards, emergency stop buttons, and interlocks to ensure operator safety.

Q4. Can this machine produce multiple profiles?
A4. Yes, with additional tooling and configurations, it can produce various profiles.

Q5. Is remote support available?
A5. Yes, remote PLC systems enable troubleshooting and support from anywhere.
