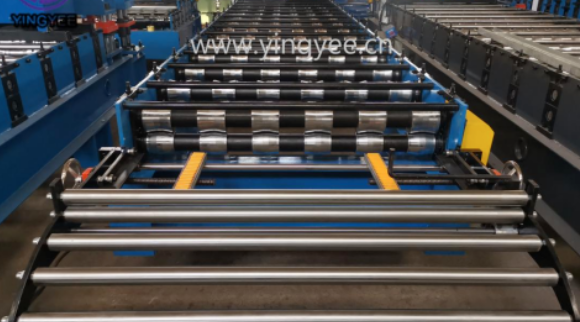

How to clean tooling on a roll forming machine

Cleaning the tooling on a roll forming machine is crucial for maintaining its performance, prolonging the life of the machine, and ensuring the quality of the formed products.

Tools and Materials Needed:

• Soft brushes or cloth
• Compressed air (optional)
• Solvent or degreaser (non-corrosive, machine-friendly)
• Mild detergent (if applicable)
• Rust-preventative oil or spray
• Personal protective equipment (gloves, safety glasses)

Steps to Clean Roll Forming Tooling:

1. Turn Off and Lock Out the Machine:
   • Ensure the machine is powered off and properly locked out according to safety protocols before beginning the cleaning process.
2. Remove Large Debris:
   • Use a soft brush or compressed air to remove any metal shavings, dirt, or large debris from the tooling and rollers.
3. Clean with Solvent or Degreaser:
   • Apply a non-corrosive solvent or degreaser to a soft cloth or brush and gently clean the rollers and dies.
   • Make sure to use cleaning solutions recommended by the machine manufacturer, as harsh chemicals can damage the tooling or machine components.
4. Scrub Hard-to-Reach Areas:
   • For grooves, edges, or areas where dirt and grime accumulate, use small brushes or rags to scrub thoroughly without scratching the surfaces.
5. Rinse or Wipe Down (if applicable):
   • If using a detergent or solvent that requires rinsing, wipe down the tooling with a damp cloth or use compressed air to remove any residue.
6. Dry the Tooling Completely:
   • Ensure that the tooling is completely dry after cleaning to prevent rust formation. Compressed air is helpful for drying any hard-to-reach areas.
7. Apply Rust-Preventative Oil:
   • Once the tooling is dry, apply a thin layer of rust-preventative oil or spray to protect the metal surfaces from oxidation, especially if the machine won’t be used immediately after cleaning.
8. Inspect the Tooling:
   • While cleaning, inspect the tooling for any signs of wear, damage, or buildup. If necessary, address these issues by replacing or maintaining parts before resuming machine operation.
9. Reassemble and Test:
   • After cleaning and applying preventative measures, reassemble the machine if parts were disassembled, then test it to ensure everything is functioning correctly.

Additional Tips:

• Regular Maintenance: Incorporate regular cleaning into the maintenance schedule to avoid excessive buildup.
• Avoid Abrasives: Never use abrasive materials to clean the tooling, as they can damage the precision surfaces.
• Rust Prevention: If your tooling is stored for extended periods, consider more robust rust prevention measures, like protective covers or desiccants.

By following these steps, you'll keep your roll forming machine tooling in optimal condition, ensuring smooth operation and high-quality output.
