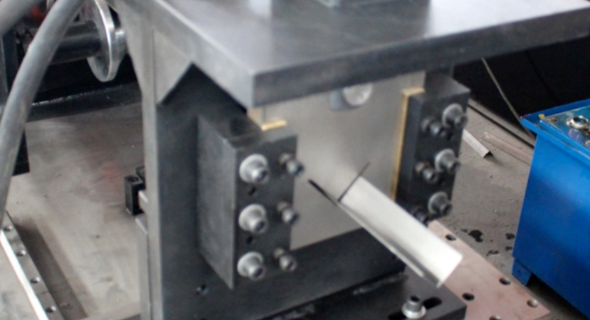

Roll Forming Machine Parameter Settings

Below are some key parameters and settings to consider for optimizing roll forming machines:

When setting up parameters for a roll forming machine, various factors influence the quality and precision of the output.

1. Material Type and Thickness

  • Material type: Choose the correct material (e.g., steel, aluminum, copper) based on the application. Ensure that the machine is equipped to handle the material's hardness, flexibility, and durability.
  • Material thickness: Set the machine according to the thickness of the coil being fed. Most machines have a specified range, so setting this outside the range may lead to poor quality or machine damage.

2. Roller Gap Adjustment

  • Gap between rollers: The gap should be precisely set according to the material thickness. If the gap is too tight or too loose, it may cause deformation or lead to poor profile quality. Fine-tune the gap settings to ensure that the forming occurs without over-compressing the material.

3. Roller Speed

  • Forming speed: Set the speed based on the material being used. Higher speeds can increase production output, but certain materials and complex profiles may require slower speeds for accuracy and to avoid defects.
  • Line speed synchronization: The rollers should be synchronized with the feed rate to ensure smooth material flow and proper forming.

4. Profile Geometry Settings

  • Adjust the rollers to match the desired profile, ensuring that each station forms the correct angle, curve, or bend. Each profile will require a different setting, which must be carefully configured according to the design specifications.

5. Cut Length and Position

  • Cut-off settings: For accurate length cutting, set the cut-off die to match the profile and the required part length.
  • Position control: Ensure that the cut is timed and positioned correctly, especially when the material is moving at high speeds.

6. Lubrication and Cooling

  • Ensure the lubrication system is functioning properly to reduce friction between rollers and material, preventing material wear and roller damage.
  • Use the cooling system where necessary, especially for materials like aluminum or during high-speed operations, to avoid overheating and material distortion.

7. Tooling and Roll Wear

  • Check the wear of the rollers and replace them when necessary. Worn-out rollers can lead to dimensional inaccuracies and poor-quality products.
  • Calibrate the tooling periodically to maintain precision in profile formation.

8. Decoiler and Material Feed Settings

  • Tension control: Set the tension on the decoiler to prevent stretching or breaking of the material as it feeds into the roll forming machine.
  • Feed speed: Ensure that the material feed is aligned with the roller speed to avoid jerking, buckling, or misalignment during forming.

9. Pre-punching or Pre-notching Settings

  • Set the location and size of any pre-punched or pre-notched holes if the product design requires it. The punching press should be synchronized with the material feed to ensure accuracy.

10. Bending Radius and Angle Control

  • Set the radius and angles of bends according to the design specification of the final product. These settings depend on both the profile shape and the material used, ensuring no over-bending or cracking.

11. Material Straightening

  • Some machines include straighteners before the material reaches the first roller. Ensure that these are properly set to remove any pre-existing bends or curves in the raw material.

12. Automation and PLC Settings

  • Use a programmable logic controller (PLC) to automate and monitor the roll forming process. This includes setting the number of passes, profile types, and error detection systems for enhanced precision and reduced downtime.

13. Pass Configuration

  • The number of passes through the rollers affects the final shape of the product. Configure the pass progression carefully to ensure smooth transitions between stages, avoiding material tearing or stretching.

Properly configuring these parameters ensures the roll forming machine produces consistent, high-quality parts while minimizing waste, downtime, and wear on the machine.
