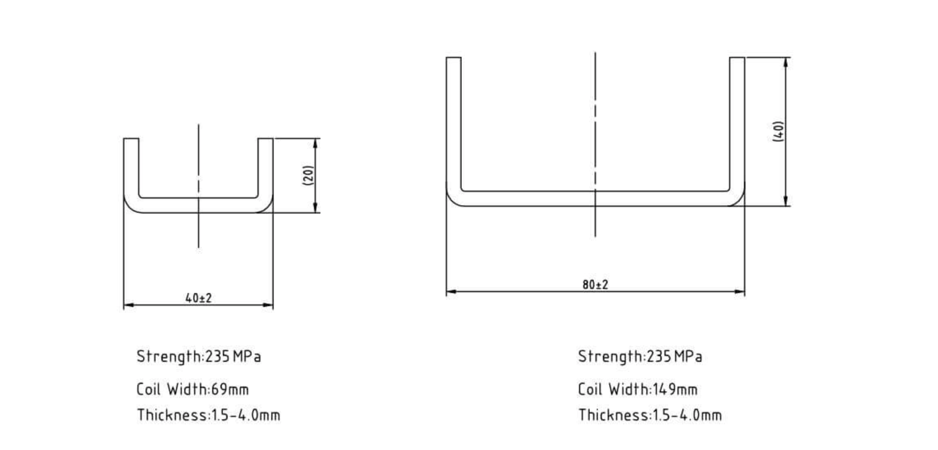

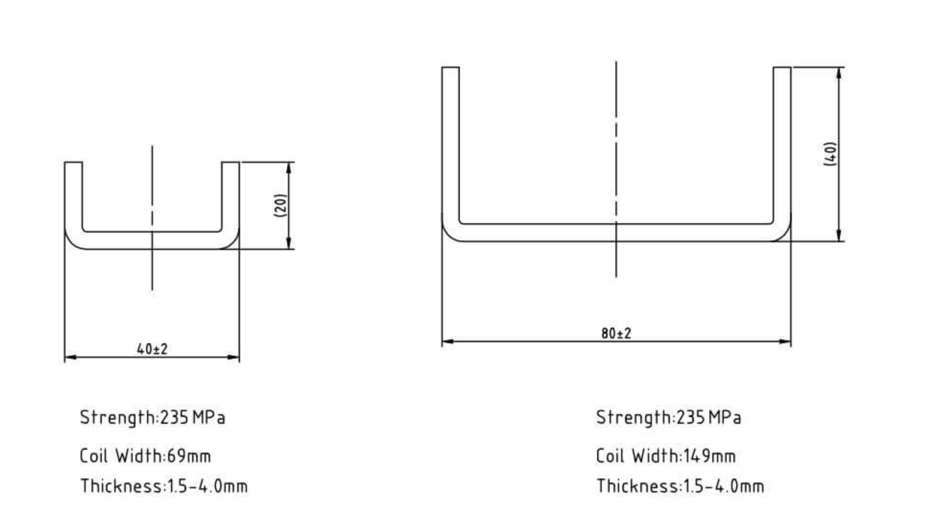

U Channel Roll Forming Machine Profile

A U Channel Roll Forming Machine is designed to manufacture U-shaped metal profiles that are commonly used in a variety of industries, such as construction, automotive, and storage systems. The profiles produced by these machines are often used for structural support, framing, or as part of shelving systems.

Key Features of a U Channel Roll Forming Machine:

1. Precision Rollers: The machine uses a series of precision rollers to shape flat metal coils into U-shaped profiles, ensuring consistency and accuracy.
2. Material Compatibility: These machines can process various metals, including steel, aluminum, and copper, making them versatile for different applications.
3. Adjustable Settings: Many U Channel Roll Forming Machines allow for adjustments in channel dimensions, enabling the production of custom profiles.
4. Automated Control Systems: Modern machines feature automated control systems for efficient operation, reducing labor and increasing output.
5. High-Speed Production: These machines are designed for continuous operation, capable of producing large quantities of U channels with minimal downtime.

Typical Applications:

• Construction: Used in metal framing for walls, ceilings, and roofing systems.
• Storage Systems: Forming shelves and racks for warehouses or retail storage solutions.
• Automotive: Providing structural components for vehicle bodies or frames.
• Electrical: U channels are often used in cable management systems to support and protect wiring.

By producing precise and durable U channel profiles, these roll forming machines are integral to a wide range of industrial applications.

U Channel profiles are metal structural components with a U-shaped cross-section, widely used in construction, manufacturing, and various industrial applications. These profiles provide strength and stability and are typically fabricated through roll forming machines. Below are common characteristics and types of U Channel profiles:

Common Types of U Channel Profiles:

1. Standard U Channel: A basic U-shaped metal profile used for general structural support and framing.
2. Slotted U Channel: Contains pre-punched slots along the length of the channel, often used for adjustable shelving, mounting, and cable management.
3. Lip U Channel: Features a small inward or outward lip on the open ends of the U for added rigidity and structural strength.
4. Structural U Channel: Larger, thicker profiles designed for heavy-load applications, often used in construction or as part of machine frames.

Materials:

• Steel: Most common due to its strength and durability. Often comes in galvanized or stainless steel versions for added corrosion resistance.
• Aluminum: Lightweight and corrosion-resistant, ideal for applications where weight savings are important.
• Copper: Used in specific applications where electrical conductivity or aesthetics are key.

Applications:

• Construction: Supports framing in walls, roofs, and ceilings.
• Manufacturing: Component in machinery frames and conveyor systems.
• Automotive: Structural parts in vehicles or as part of support brackets.
• Electrical Systems: Used in cable management or as raceways for wiring.

Dimensions:

U Channel profiles come in a wide range of sizes, with height, width, and thickness depending on the intended application. Common dimensions range from small channels with heights of a few millimeters for lightweight applications to large structural U channels that are several inches tall for heavy-duty support.

These U channel profiles provide versatility across many industries, supporting everything from light frameworks to heavy-duty industrial equipment.
