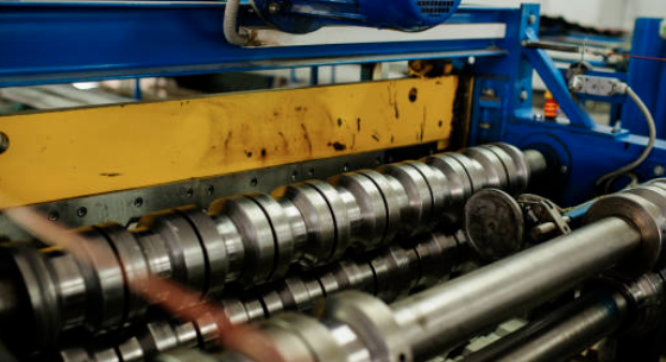

What are the Most Common Defects in Roll Forming and How to Avoid Them?
A practical guide to the most common issues that arise during the roll forming process, such as twisting, bowing, or cracking, and tips for troubleshooting
The roll forming process is widely used for its ability to produce precise, high-quality metal components. However, like any manufacturing process, it can present certain defects that can compromise the quality and functionality of the final product. Here’s a practical guide to the most common defects in roll forming and how to avoid them.
1. Twisting
What it is: Twisting occurs when the metal strip twists along its longitudinal axis during the forming process, resulting in a deformed or unusable part.
Causes:
- Uneven roll pressure across the width of the strip.
- Misalignment of the roll stands.
- Inconsistent material properties across the strip.
Prevention Tips:
- Ensure roll alignment: Regularly check and adjust the alignment of the rolls and stands to ensure the material passes through the line evenly.
- Balance roll pressure: Adjust the roll pressure to prevent excessive force on one side of the material.
- Check material quality: Ensure that the metal strip has consistent thickness and properties before forming.
2. Bowing
What it is: Bowing, also known as "camber," is when the metal strip curves along its length, either concave or convex, rather than staying flat.
Causes:
- Uneven roll gap.
- Incorrect setup of the roll stations.
- Material stress due to improper handling.
Prevention Tips:
- Optimize roll gap: Make sure the gap between the rolls is even across the width of the material and adjust it according to the thickness of the strip.
- Use straighteners: Install a leveling or straightening device at the beginning of the roll forming line to minimize bowing.
- Proper storage: Handle and store the metal coils properly to avoid inducing stress before the roll forming process.
3. Cracking
What it is: Cracking occurs when the metal fractures during or after the roll forming process, especially at bends or corners.
Causes:
- Inadequate material ductility.
- Excessive roll forming pressure.
- Poorly designed bending radii.
Prevention Tips:
- Select appropriate material: Ensure that the material has sufficient ductility and is suitable for the bending radii required by the profile.
- Optimize forming speed: Avoid forming at excessively high speeds that can overstress the material and cause cracks.
- Adjust bending radius: Increase the bend radii in the roll forming dies to prevent sharp angles, reducing the risk of cracking.
4. Oil Canning
What it is: Oil canning is the waviness or distortion in the flat areas of metal panels, often seen in thin-gauge metals.
Causes:
- Incorrect roll forming setup.
- Stress within the material caused by uneven pressure.
- Poor material handling or storage.
Prevention Tips:
- Adjust roll tension: Ensure that the roll tension is properly set to avoid over-stretching the material, which can cause oil canning.
- Use thicker material: Opt for slightly thicker material where possible to reduce the risk of oil canning in flat sections.
- Minimize material stress: Ensure proper handling of the material from coil to final product to reduce any built-up internal stress.
5. Edge Wave
What it is: Edge wave refers to a wavy pattern along the edges of the metal strip, while the center remains relatively flat.
Causes:
- Uneven material thickness across the width of the strip.
- Improperly set roll stands.
- Excessive pressure at the edges during forming.
Prevention Tips:
- Check material consistency: Ensure uniform thickness across the metal strip to prevent edge wave.
- Balance roll pressure: Adjust the roll pressure, particularly on the outer edges, to avoid excessive force that could distort the edges.
- Use a pre-leveler: Incorporate a leveling unit before the roll forming line to address any inconsistencies before forming.
6. Springback
What it is: Springback occurs when the formed metal part attempts to return to its original shape after forming, resulting in inaccuracies in the final dimensions.
Causes:
- Material elasticity causing it to revert to its original state.
- Insufficient roll pressure to form the material permanently.
Prevention Tips:
- Increase roll pressure: Adjust the roll forming pressure to ensure the material reaches its plastic deformation point without returning to its original shape.
- Use proper materials: Select materials that are known for reduced springback tendencies, such as higher-strength metals.
- Compensate in design: Overbend the material slightly during the forming process to compensate for the expected springback.
7. Galling
What it is: Galling is the transfer of material between the metal strip and the forming rolls, causing surface defects and rough finishes.
Causes:
- Inadequate lubrication.
- Excessive forming pressure.
- Incompatible materials between the rolls and the strip.
Prevention Tips:
- Proper lubrication: Ensure that the metal strip is adequately lubricated throughout the forming process to minimize friction.
- Use appropriate roll materials: Select roll materials or coatings that are less prone to galling when in contact with the specific type of metal being formed.
- Reduce forming pressure: Adjust the roll pressure to prevent excessive contact force between the rolls and the material.
Conclusion
Understanding these common defects and their causes is essential for maintaining efficient roll forming operations and producing high-quality products. By regularly checking roll alignment, adjusting pressure, and ensuring proper material selection and handling, many of these issues can be minimized or avoided altogether. Proper setup and ongoing maintenance of roll forming lines are crucial to preventing defects and ensuring consistent, defect-free production.
