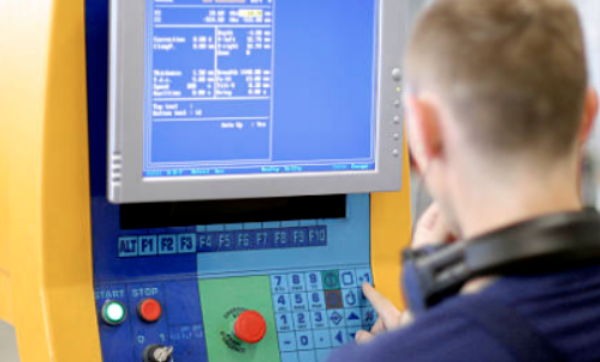

What is the Best Way to Optimize Roll Forming Machine Settings?

tips on adjusting machine settings for optimal performance, such as speed, pressure, and roller alignment, to improve product quality and production

Optimizing roll forming machine settings is essential for maintaining high-quality production and maximizing efficiency. Adjusting settings such as speed, pressure, and roller alignment can have a significant impact on both the quality of the product and the efficiency of the manufacturing process. Here are some key tips to help you fine-tune your roll forming machine settings:

1. Speed Control

  • Match speed to material type: Different materials react differently to roll forming. Thicker materials like steel may require a slower forming speed to ensure accuracy, while thinner materials like aluminum can be formed at higher speeds. Be sure to test various speeds for each material and thickness to find the ideal setting.
  • Balance speed with accuracy: Running the machine at too high of a speed can result in distortion or improper forming. It’s essential to find a balance between speed and the desired accuracy of the product. Slower speeds often lead to higher precision, but too slow can reduce efficiency.
  • Use variable-speed drives: Machines with variable-speed drives allow operators to adjust speed in real-time, making it easier to adapt to changing conditions without stopping production.

2. Roller Pressure Adjustment

  • Set the correct pressure for the material: Too much pressure can lead to deformed or damaged products, while too little pressure may result in incomplete forming. Check the material’s properties and the machine’s specifications to set the right pressure.
  • Monitor for consistent pressure: Uneven pressure across rollers can cause inconsistent product quality. Regularly inspect pressure settings and use pressure gauges if available to ensure even force is applied along the entire length of the rollers.
  • Adjust for each pass: In multi-pass roll forming machines, pressure may need to be adjusted at each stage. The initial passes may require less pressure to gradually shape the material, while later passes may need more to finalize the profile.

3. Roller Alignment

  • Ensure perfect alignment: Roller misalignment is a common cause of product defects such as warping or twisting. Always check the alignment of the rollers during setup and after any adjustments. Even small misalignments can cause issues in production.
  • Regular calibration: Periodic calibration of the machine ensures rollers are correctly aligned and working as intended. A laser alignment tool or dial indicators can be used to check for accurate positioning.
  • Minimize roller wear: Over time, rollers can wear unevenly, affecting alignment. Regular maintenance and replacement of worn rollers will help maintain proper alignment and product quality.

4. Material Feed and Handling

  • Check material feed tension: Too much tension can cause the material to stretch or buckle, while too little tension may result in material slipping and uneven forming. Adjust the material feed system to maintain optimal tension for smooth operation.
  • Reduce friction: Excessive friction between the material and the machine can lead to wear and tear or quality defects. Using lubricants or adjusting the material guides can reduce friction and improve the lifespan of both the machine and the material.

5. Temperature Control

  • Monitor temperature for heat-sensitive materials: Some materials, especially metals, can expand or contract based on temperature. Ensure the machine operates within the recommended temperature range to avoid defects such as thermal distortion.
  • Use cooling systems: For high-speed or long-run production, a cooling system may be necessary to prevent overheating of the material or machine components. This is especially important for machines processing heat-sensitive coatings or galvanized steel.

6. Tooling Adjustments

  • Use proper tooling for the job: The right tooling for the specific material and profile is crucial. Be sure to select the appropriate rollers, dies, and guides for each job.
  • Tool sharpening and maintenance: Dull or damaged tooling can lead to poor-quality products. Regularly inspect and maintain tools to ensure optimal performance.

7. Monitoring and Data Analytics

  • Implement real-time monitoring: Modern roll forming machines equipped with sensors can track various parameters such as speed, pressure, and material feed. Use this data to monitor and adjust settings during production.
  • Utilize data analytics: Analyze production data to identify patterns and optimize machine settings over time. This can lead to improved efficiency, reduced waste, and higher-quality products.

8. Trial Runs and Adjustments

  • Perform trial runs before full production: After making any adjustments to machine settings, always run a trial to check for product quality and machine performance. This helps to catch any issues early before committing to full-scale production.
  • Fine-tune based on feedback: Continuous adjustment and fine-tuning during the trial phase will help optimize settings. Look for issues such as misalignment, improper pressure, or material defects, and adjust accordingly.

By carefully optimizing these key machine settings—speed, pressure, alignment, and tooling—you can ensure that your roll forming machine runs efficiently while producing high-quality components. Regular monitoring and adjustments, combined with maintenance and trial runs, are essential practices for maintaining optimal performance.
