What is the Difference Between Cold Roll Forming and Hot Roll Forming?

Roll forming is a key process in the metal manufacturing industry, but it can be carried out using either cold or hot methods, each of which has distinct characteristics, benefits, and applications. Below is an overview of the differences between cold roll forming and hot roll forming, focusing on material properties, applications, and the advantages of each method.

1. Material Properties

• Cold Roll Forming

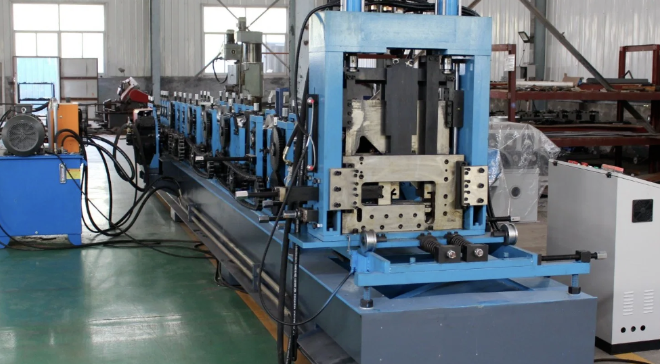

  • Cold roll forming is a continuous process in which metal strips or sheets are fed through a series of rollers to shape them without applying heat. The material is worked at room temperature, which means the process takes place below the recrystallization temperature of the metal.
  • As a result of being processed at room temperature, the metal typically hardens and strengthens due to work hardening. This process often increases the material's yield strength and hardness, but it may reduce its ductility.
  • Materials that are commonly used in cold roll forming include steel (especially cold-rolled steel), aluminum, stainless steel, and copper.
• Hot Roll Forming
  • In contrast, hot roll forming involves heating the metal above its recrystallization temperature before shaping it. The heat softens the metal, making it more malleable and easier to form.
  • The material remains ductile and is less likely to crack during the forming process. After forming, the metal cools and retains its shape.
  • Hot roll forming is most often used for heavier gauges of steel, as well as for metals like titanium and high-strength alloys that require greater force to shape at room temperature.

2. Applications

• Cold Roll Forming
  • Cold roll forming is ideal for producing complex, precise profiles with tight tolerances and excellent surface finishes. Since the process does not use heat, it preserves the metal's surface quality and enables consistent, dimensionally accurate parts.
  • Common applications include metal panels for roofing and siding, structural components for construction, automotive parts (frames, bumpers), and appliance components. Cold roll forming is widely used in industries like construction, transportation, and manufacturing.
  • This method is also used to create long, continuous lengths of material such as tubes, channels, and metal decking.
• Hot Roll Forming
  • Hot roll forming is commonly used in industries where strength and ductility are more critical than surface finish. It is often employed in producing large steel beams, plates, and structural components for heavy-duty construction and infrastructure projects.
  • Typical applications include bridge construction, rail tracks, pipelines, and automotive frames. Hot roll forming is also preferred for producing larger, thicker, or more complex profiles that would be difficult to shape using cold roll forming due to the material's increased hardness at room temperature.

3. Benefits

• Cold Roll Forming
  • Tight tolerances: Cold roll forming allows for greater precision and accuracy in shaping, which is critical for parts requiring exact specifications.
  • High strength: Due to work hardening, the resulting parts tend to have a higher yield strength, making them suitable for structural applications where load-bearing capabilities are essential.
  • Superior surface finish: The cold process avoids the scaling and oxidation typical of hot forming, leaving a smooth, clean surface that is often ready for immediate use or painting.
  • Cost-effective for smaller thicknesses: Cold roll forming is more economical for producing thinner profiles and lighter gauges, making it ideal for creating lightweight yet strong products.
• Hot Roll Forming
  • Easier shaping of thick materials: The metal's high temperature makes it much more pliable, allowing for the easy formation of thicker or more complex parts that would be challenging with cold roll forming.
  • Lower costs for larger parts: Hot roll forming is typically more cost-effective for larger, bulkier metal components due to the reduced need for heavy-duty equipment to form thicker material.
  • Improved ductility: Hot roll forming maintains the metal's ductility, allowing for extensive deformation without cracking, making it ideal for structural applications where toughness is required.
  • Reduced residual stress: The hot process reduces residual stress in the material, which can be beneficial for parts that need to be welded or subjected to further processing.

Summary of Key Differences

Conclusion

Both cold roll forming and hot roll forming offer distinct advantages depending on the application. Cold roll forming is best suited for high-precision, lightweight, and smooth-finished parts, while hot roll forming excels in producing thicker, larger, and more ductile components. The choice between these methods depends largely on the desired properties of the finished product, the type of material used, and the specific industry requirements.
