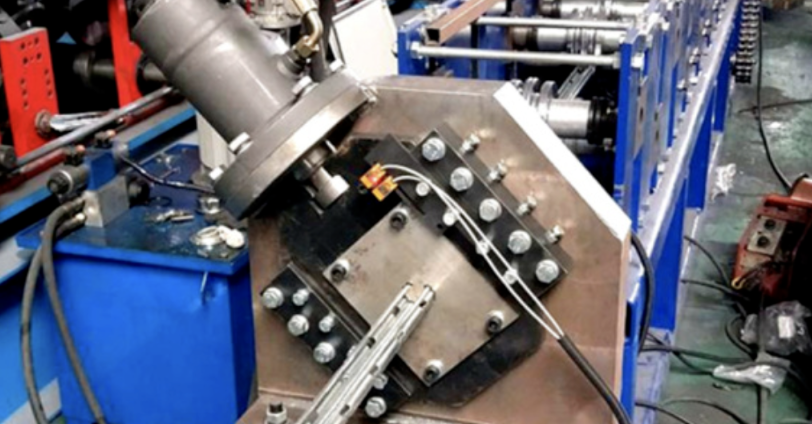

What is the Difference Between Traditional Roll Forming and Flexible Roll Forming?
Traditional roll forming methods with flexible roll forming, which allows for more complex shapes and adjustable profile dimensions.
Roll forming is a widely used manufacturing process for producing metal shapes and profiles. While traditional roll forming has been a staple in the industry, flexible roll forming is emerging as a versatile alternative. Below is a comparison between these two methods:
1. Definition and Process
- Traditional Roll Forming:
- This method involves feeding a continuous strip of metal through a series of rollers that shape the material into a specific profile. Each roller gradually alters the metal's shape until the desired cross-section is achieved. Traditional roll forming is well-suited for high-volume production of standardized profiles.
- Flexible Roll Forming:
- Flexible roll forming utilizes advanced technology that allows for adjustments in the forming process. This can include the ability to change the tooling configuration quickly and efficiently to create a variety of shapes and dimensions without significant downtime. Flexible systems can adapt to different profile designs and specifications.
2. Complexity of Shapes
- Traditional Roll Forming:
- Limited to producing simpler, more uniform shapes due to fixed tooling. Complex geometries often require custom tooling, leading to higher costs and longer lead times for setup.
- Flexible Roll Forming:
- Capable of producing intricate and custom shapes, including varying dimensions along the length of the profile. This flexibility allows manufacturers to respond quickly to design changes and customer specifications.
3. Tooling Requirements
- Traditional Roll Forming:
- Requires dedicated tooling for each specific profile. Setting up a new profile often involves significant time and cost to create new tooling and machinery adjustments.
- Flexible Roll Forming:
- Utilizes adjustable tooling that can be reconfigured for different profiles with minimal setup time. This adaptability reduces the need for extensive tooling changes and can accommodate small batch production more effectively.
4. Production Volume and Efficiency
- Traditional Roll Forming:
- Best suited for high-volume production runs of the same profile. Once set up, traditional roll forming can produce parts at a high speed and efficiency but lacks flexibility for varied output.
- Flexible Roll Forming:
- Designed for lower production volumes and quick changeovers between different profiles. It allows for efficient production of custom orders and small batches, making it ideal for diverse applications.
5. Cost Implications
- Traditional Roll Forming:
- Initial tooling costs can be high, especially for custom profiles. However, unit costs can be lower in high-volume runs due to economies of scale.
- Flexible Roll Forming:
- While the initial investment in flexible roll forming equipment may be higher, it can lead to savings in tooling and setup time. The ability to produce multiple profiles without dedicated tooling can also lead to cost savings over time.
6. Applications
- Traditional Roll Forming:
- Commonly used for applications requiring standard profiles, such as metal roofing, framing, and structural components in construction.
- Flexible Roll Forming:
- Ideal for industries needing a variety of profiles or those focused on customization, such as automotive parts, furniture, and specialized construction components.
Conclusion
Both traditional and flexible roll forming methods have their distinct advantages and ideal applications. Traditional roll forming excels in high-volume production of standardized profiles, while flexible roll forming offers the adaptability and versatility necessary for custom shapes and smaller production runs. Choosing between the two will depend on the specific requirements of the project, including volume, complexity, and cost considerations.
