What machine makes drip edge?

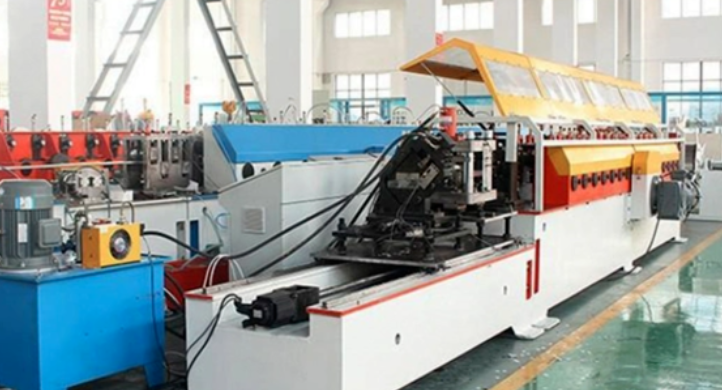

Drip edge is typically produced using a roll forming machine. These machines are designed to shape long strips of metal, like aluminum, steel, or copper, into precise profiles, such as drip edges used in roofing. Roll forming machines work by feeding metal coils through a series of rollers, gradually bending and forming the metal into the desired drip edge shape.

Roll forming machines used for drip edge production offer several advantages, such as high precision, consistent quality, and the ability to produce large quantities efficiently.

Process Overview:

1. Material Input:
   • The machine uses metal coils (commonly aluminum, galvanized steel, or copper) as raw material. These coils are fed into the machine's uncoiler, which holds and dispenses the material in a controlled manner.
2. Feeding & Straightening:
   • The metal coil is fed into the roll forming line through a feeder and straightener, ensuring that the metal is flat and aligned for precise shaping. This step is crucial for avoiding bends or twists in the final product.
3. Roll Forming Station:
   • The heart of the machine consists of a series of rollers arranged in stages. Each set of rollers gradually bends the metal into the required drip edge profile. The metal passes through these rollers continuously, and each stage slightly alters the shape of the metal until the desired profile is formed.
   • For a drip edge, the machine forms a 90-degree bend (or other angles, depending on the design) with a small overhang to ensure water runoff.
4. Cutting:
   • Once the profile is formed, the machine features a cutting station where the continuous strip of drip edge is cut to specific lengths. This can be done using a flying shear, which cuts the metal without stopping the production line, ensuring a high-speed, continuous operation.
5. Finishing & Packaging:
   • After the drip edge is formed and cut, some systems include optional steps for finishing processes, such as punching holes or slots (for installation), applying coatings, or adding protective films. The finished drip edge is then stacked and prepared for shipment.

Why Roll Forming is Ideal for Drip Edge Production:

1. High Efficiency & Volume:
   • Roll forming machines can produce thousands of feet of drip edge per hour, making it extremely efficient for large-scale production. The continuous nature of the process means there’s minimal downtime.
2. Customization:
   • The machine can be customized to produce a variety of drip edge profiles, including those with different angles, dimensions, or overhangs, depending on roofing requirements.
   • Roll forming allows for the production of custom lengths, so manufacturers can cater to specific customer needs or project requirements.
3. Consistency & Precision:
   • Roll forming ensures high precision and uniformity in each piece. This is particularly important for drip edges, which need to fit accurately along the roofline to prevent water damage.
4. Material Flexibility:
   • Roll forming machines can work with different types of metals and thicknesses. This versatility allows manufacturers to produce drip edges from various materials to suit specific roofing applications, climates, or aesthetics.
5. Cost-Effective:
   • Because roll forming uses a continuous coil of material, it minimizes waste and maximizes material utilization, reducing overall production costs.

Drip Edge Profiles Typically Made by Roll Forming:

1. L-Shaped Drip Edge:
   • A basic profile that features a 90-degree bend and is often used on the edge of the roof deck before shingles or other roofing materials are installed.
2. T-Style Drip Edge:
   • This profile includes a raised vertical section to further direct water away from the roof fascia, providing better water control.
3. C-Style or Hemmed Drip Edge:
   • Features a more decorative finish with a folded or hemmed edge, providing added strength and a smooth look.

Auxiliary Equipment:

• Uncoilers: These hold and dispense metal coils, feeding them into the roll forming line.
• Runout Tables: Used at the end of the line to catch and stack the formed drip edges after cutting.
• Punching Tools: Can be added for any custom hole punching (e.g., for fasteners or drainage).

Automation and Technology:

• Many modern roll forming machines used for making drip edges are equipped with automated controls and programmable settings. This allows manufacturers to change profiles quickly, adjust lengths, or switch materials with minimal manual intervention, increasing production flexibility.

In conclusion, roll forming machines are perfect for drip edge production due to their efficiency, ability to handle custom profiles, and cost-effectiveness. Manufacturers using these machines can produce a wide variety of drip edge designs that meet the needs of different roofing systems and climates.
