Complete Guide to PBR Base Trim Flashing Roll Forming Machine

The PBR base trim flashing roll forming machine is a cornerstone in the construction and roofing industry. Essential for producing precise, durable trim flashing, this machine transforms raw materials into high-quality profiles used in a variety of applications.

1. Machine Overview

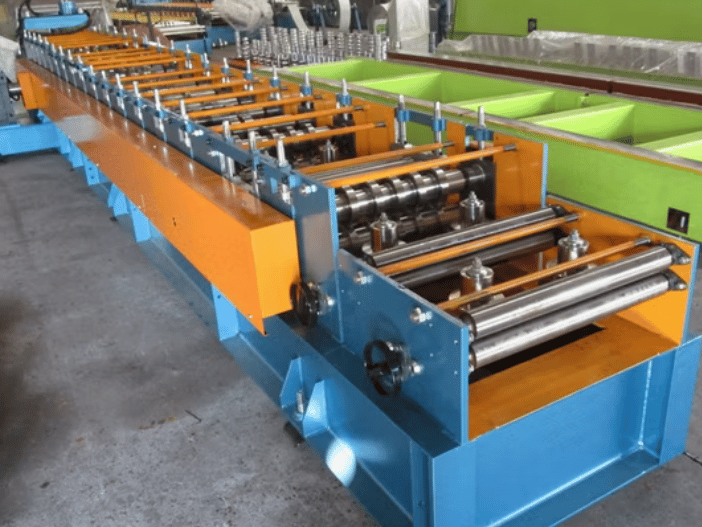

The PBR base trim flashing roll forming machine is designed to create consistent, high-quality trim flashing for construction projects. Known for its robust build and precision, this machine is ideal for producing profiles that serve as protective and aesthetic elements in roofing, siding, and cladding. The machine ensures the highest levels of efficiency and accuracy, making it a valuable asset in both small-scale workshops and large manufacturing facilities.

2. Machine Specifications

The specifications of a PBR base trim flashing roll forming machine directly impact its performance and suitability for various production needs. Here are the core specs:

• Roller Materials: High-grade steel or chrome-coated materials are used for rollers, ensuring durability and smooth operation. These materials resist wear and corrosion, making the machine suitable for long-term, heavy-duty usage.
• Punching and Notching: Equipped with customizable punching and notching tools, this machine allows for precise modifications to the profiles. The versatility of punching and notching options makes it adaptable to different project requirements.
• Servo Motors: Servo motors control the speed and accuracy of material feeding, optimizing performance. These motors ensure that the machine operates smoothly even at high speeds, minimizing the chance of errors.
• Hydraulic Cutting Systems: With a hydraulic cutting system, the machine provides clean, precise cuts without compromising material integrity. Hydraulic systems are essential for handling tougher materials and achieving a high level of accuracy.
• Frame Size: The frame is constructed from heavy-duty steel, offering stability and durability. Frame size can vary, with larger frames providing additional stability during high-speed operation.
• Motors and PLC System: Powerful motors and an advanced PLC (Programmable Logic Controller) system allow for automated control and customization. The PLC system enhances productivity and lets operators fine-tune settings for different materials.
• Machine Speed: Capable of producing profiles at speeds ranging from 15 to 30 meters per minute, this machine supports high-volume production without sacrificing quality.
• Safety Guards and Enclosures: The machine comes equipped with protective guards and enclosures to keep operators safe. These safety features comply with international standards, reducing workplace accidents and increasing operational confidence.

3. Profile Description

PBR base trim flashing profiles are integral to modern construction. Below is a breakdown of the profile specifications:

• Materials: This machine can process materials like galvanized steel, aluminum, and other coated metals. These materials are selected for their durability, corrosion resistance, and aesthetic appeal.
• Sizes: Profiles are customizable to meet various size requirements, with widths typically ranging between 100 and 300 mm.
• Material Gauge: Supports material thickness between 0.4 and 1.2 mm, allowing it to cater to different structural and aesthetic needs.
• Market Size: Demand for PBR base trim flashing is robust, especially in regions with significant construction growth. Its applications span across residential, commercial, and industrial buildings.
• Industries Using This Profile: Roofing, siding, cladding, and general construction sectors rely heavily on this profile. The profiles are used for their protective qualities as well as their visual appeal.
• Popular Countries and Why: The machine is especially popular in the United States, Canada, and parts of Europe, where strict building codes require high-quality, durable trim materials. In these regions, construction standards emphasize both durability and appearance, making PBR profiles a preferred choice.

4. Optional Extras

The PBR base trim flashing roll forming machine can be equipped with several optional extras to enhance functionality:

• Stackers: Automated stackers organize finished profiles, reducing manual handling and increasing production efficiency.
• Remote PLC Systems: Remote monitoring and control allow operators to manage machine settings from a distance, adding flexibility to production.
• Coil Car Tippers: This accessory simplifies the loading and unloading of coils, boosting productivity.
• Uncoilers and Recoilers: Ensuring a smooth material feed, these components are essential for minimizing downtime and maintaining consistent production.
• Automatic Stackers: These stackers improve production by automating the final stacking process, ideal for high-volume facilities.
• Leveling Systems: Levelers keep the material flat and consistent, preventing deformities during processing.
• Coil Handling Systems: Coil handling systems streamline material management, saving time and reducing labor costs.

5. Machine Pricing

Pricing for the PBR base trim flashing roll forming machine varies depending on the model, configuration, and optional extras. Here’s a general breakdown:

• Entry-Level Models: Basic models start around $30,000 and are ideal for small-scale operations with limited customization options.
• Mid-Range Models: For more advanced features like hydraulic systems and faster speeds, expect pricing between $50,000 and $80,000.
• High-End Models: Fully equipped models with remote PLC systems, high-speed capabilities, and comprehensive safety features can exceed $100,000.

6. Setup and Installation

Setting up the PBR base trim flashing roll forming machine requires a level, stable foundation and appropriate power connections. After delivery, professional technicians typically handle the installation process, which includes:

• Aligning and securing the machine
• Configuring the PLC system
• Running test profiles to calibrate settings
• Training operators on usage and safety protocols

A thorough setup ensures that the machine operates efficiently and minimizes the risk of errors or breakdowns.

7. Maintenance

Routine maintenance is crucial for extending the lifespan of the machine. Recommended maintenance practices include:

• Daily Checks: Inspect rollers, motors, and safety guards for wear.
• Weekly Lubrication: Lubricate moving parts to prevent friction damage.
• Monthly Inspections: Check the hydraulic system, PLC settings, and other critical components.
• Annual Overhaul: Conduct a complete inspection and replace any worn parts to keep the machine in peak condition.

Adhering to these maintenance practices ensures long-term productivity and minimizes downtime.

8. Q&A Section

Q: What materials can this machine process?
A: The PBR base trim flashing roll forming machine can handle materials like galvanized steel, aluminum, and coated metals.

Q: Can I customize the profile dimensions?
A: Yes, the machine allows for custom sizes, especially in terms of width and material gauge, depending on project requirements.

Q: What are the power requirements?
A: Power requirements vary by model but generally include 3-phase electricity at 380V or 440V, with specific needs based on country standards.

Q: How long does setup and installation take?
A: Setup typically takes one to two days, depending on machine size and facility conditions, followed by operator training.

Conclusion

The PBR base trim flashing roll forming machine is a highly efficient and versatile solution for producing quality trim flashing for construction projects. With a variety of specifications, profile options, and additional features, this machine caters to both small workshops and large manufacturing facilities. Proper setup, routine maintenance, and an understanding of its optional features can maximize productivity and ensure a high return on investment.
