Deck Ledger Flashing Roll Forming Machine: A Comprehensive Guide

Deck ledger flashing is a critical component in construction, particularly in decking projects where durability and water resistance are essential. A deck ledger flashing roll forming machine offers precision, efficiency, and scalability for manufacturing these components.

Machine Description

A deck ledger flashing roll forming machine is designed to produce deck ledger flashings with high accuracy and efficiency. These machines are equipped with advanced technology to ensure consistent profiles, reduced waste, and enhanced productivity. The roll forming process transforms flat sheet metal into the desired flashing profile through a series of rollers and precision cutting systems.

Machine Specifications

1. Roller Materials
   • Hardened steel rollers for long-lasting performance.
   • Coated with anti-corrosion materials for smooth operation and durability.
2. Punching and Notching
   • Hydraulic or mechanical punching systems for precise holes or slots.
   • Integrated notching systems for creating complex shapes with accuracy.
3. Servo Motors
   • High-performance servo motors ensure precision in material feeding and positioning.
   • Energy-efficient and reliable for long-term operation.
4. Hydraulic Cutting Systems
   • Precision hydraulic cutting for clean edges and minimal burrs.
   • Supports high-speed operation without compromising quality.
5. Frame Size
   • Heavy-duty steel frame to withstand operational stress.
   • Compact design for space-saving installation.

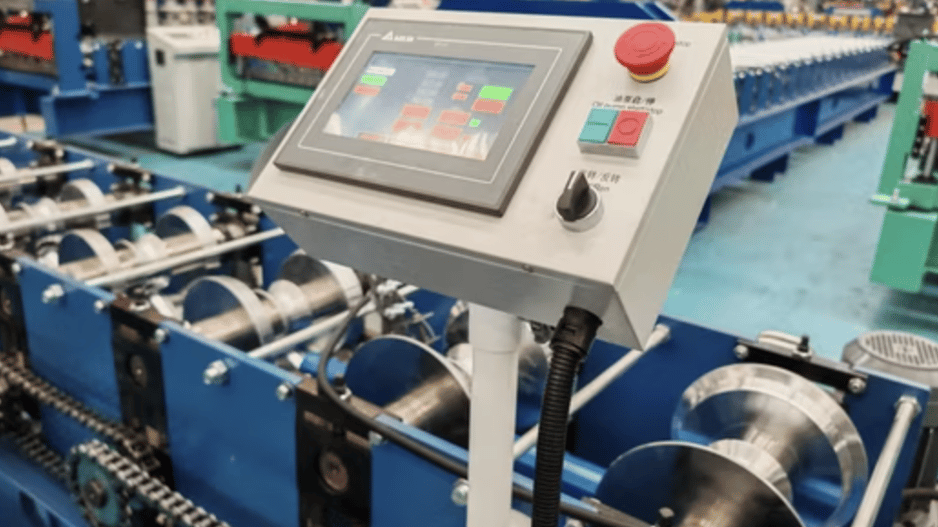

6. Motors and PLC System
   • Powerful motors optimized for continuous operation.
   • PLC control systems with user-friendly interfaces for easy programming and monitoring.
7. Machine Speed
   • Capable of producing up to 15-25 meters per minute, depending on material thickness and complexity.
8. Safety Guards and Enclosures
   • Fully enclosed design for operator safety.
   • Emergency stop systems and interlocked doors to prevent accidents.

Profile Description

1. Materials
   • Aluminum, galvanized steel, and stainless steel are commonly used.
   • Materials are corrosion-resistant and suitable for outdoor applications.
2. Sizes and Material Gauge
   • Typical sizes range from 50mm to 200mm in width and 0.5mm to 1.5mm in thickness.
3. Market Size and Industries
   • Widely used in the construction and decking industries.
   • Ideal for residential and commercial decking projects.
4. Popular Countries and Reasons
   • Popular in the United States, Canada, Australia, and New Zealand due to high demand for decking and construction materials.
   • Durability and water resistance make it a staple in regions with varying weather conditions.

Extras and Add-Ons

1. Stackers
   • For automatic stacking of finished products.
2. Remote PLC Systems
   • Allow remote monitoring and control for enhanced flexibility.
3. Coil Car Tippers
   • Simplify loading and unloading of metal coils.
4. Uncoilers and Recoilers
   • Manual or automatic systems available for efficient material handling.
5. Automatic Stackers
   • Improve efficiency by automatically stacking finished profiles.
6. Leveling Systems
   • Ensure perfectly flat material before entering the roll forming process.
7. Coil Handling Systems
   • Optimize material feeding and reduce manual effort.

Machine Pricing

• Low Range: Basic models start at approximately $25,000 - $40,000, depending on features and customization.
• Mid-Range: Advanced machines with additional automation range between $50,000 - $75,000.
• High Range: Fully automated systems with premium add-ons can exceed $100,000.

Setup and Installation

1. Pre-installation Requirements
   • Ensure a flat and sturdy floor surface.
   • Adequate power supply and ventilation.
2. Installation Process
   • Assemble the frame and rollers as per the manufacturer’s manual.
   • Connect power and hydraulic systems.
   • Calibrate the PLC system for specific profile dimensions.
3. Training and Testing
   • Operator training for efficient machine usage.
   • Test runs to ensure precision and quality.

Maintenance

1. Daily Maintenance
   • Clean the rollers and remove debris.
   • Check for any loose bolts or connections.
2. Weekly Maintenance
   • Inspect the hydraulic system for leaks.
   • Lubricate moving parts for smooth operation.
3. Annual Maintenance
   • Comprehensive inspection of electrical and mechanical components.
   • Replace worn-out parts to prevent breakdowns.

Questions and Answers

1. Q: Can this machine produce custom flashing sizes?
   • A: Yes, the PLC system allows for easy customization of sizes and profiles.
2. Q: What is the power requirement for this machine?
   • A: Power requirements typically range from 380V/50Hz to 480V/60Hz, depending on the model.
3. Q: How long does installation take?
   • A: Installation usually takes 2-3 days, including calibration and testing.
4. Q: Is operator training provided?
   • A: Yes, most manufacturers offer training sessions during installation.
5. Q: What warranties are available?
   • A: Standard warranties range from 12 to 24 months, covering major components.

Conclusion

A deck ledger flashing roll forming machine is a vital investment for companies in the construction industry. With its precision engineering, advanced features, and customization options, it offers exceptional value. By considering the specifications, setup process, and maintenance requirements outlined in this guide, buyers can make informed decisions to meet their production needs.
